GE HealthCare CONFIDENTIAL
DIRECTION 5936427, REV. 1 LOGIQ TOTUS Basic Service Manual
8 - 110 Section 8-7 - Replacing OPIO
8-7-19 Replacement of the T2 OPIO Key Rubber
This table includes information specific to these instructions. For more information 8-2-6 "Tools needed
for servicing the LOGIQ Totus" on page 8-5 /8-2-7 "PPE Required During Service" on page 8-6
8-7-19-1 Preparations
1.) Remove the OPIO Top Cover Set-T as described in 8-7-2 "Replacement of the OPIO Top Cover
Set-T" on page 8-89
2.) Remove the UOPIO-T Assy as described in 8-7-10 "Replacement of the UOPIO-T Assy" on page
8-98
3.) Remove the OPIO Laser Color Trackball with Cable as described in 8-7-11 "Replacement of the
Trackball assy-U_FLT20UFA-GJ" on page 8-101
4.) Remove T2 OPIO Lower Assy as described in 8-7-14 "Replacement of the T2 OPIO Lower Assy"
on page 8-104
5.) Remove OPIO Knob Set-T Assy as described in 8-7-16 "Replacement of the OPIO Knob Set-T" on
page 8-106
6.) Remove OPIO Lower Cover Set as described in 8-7-17 "Replacement of the OPIO Lower Cover
Set-T" on page 8-107
7.) Remove OPIO Button Set-T as described in 8-7-18 "Replacement of the OPIO Button Set-T and
the User Define Key Cap Set-T" on page 8-109
8-7-19-2 Removal Procedure
Table 8-55 Manpower, Time, Tools, and PPE
Manpower Time Tools PPE
One person Approximately 15 minutes Philips Screwdriver
Cut resistant gloves
Knee Pad

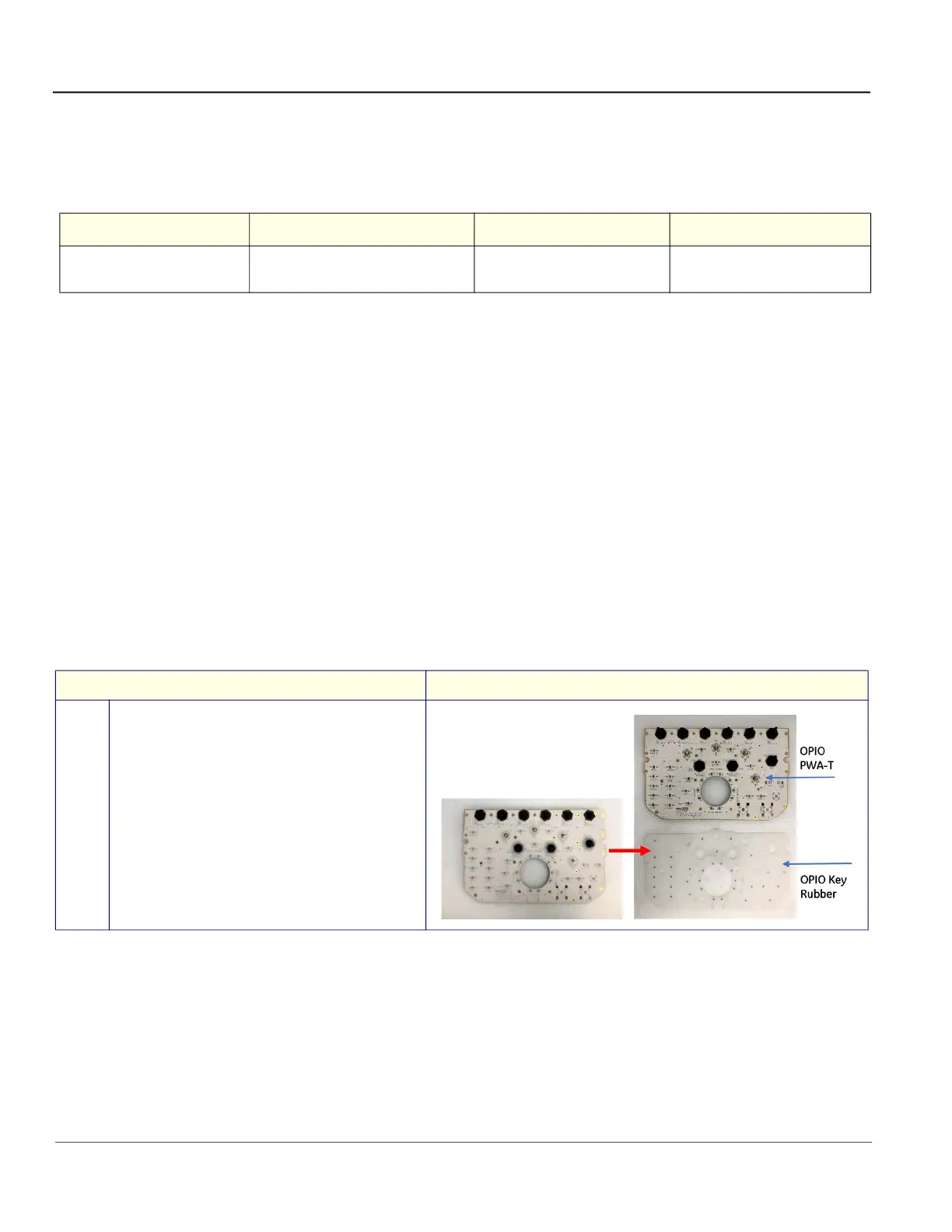

Step Corresponding graphic
1.
Gently pull the T2 OPIO Key Rubber to remove
from the OPIO PWA-T.
