GE HealthCare CONFIDENTIAL
Direction 5936427, Rev. 1 LOGIQ Totus Basic Service Manual
3 - 40 Section 3-7 - Setting Up Connectivity and Tips
3-7-1 Navigating Connection Manager
Refer to the table below for a description of the navigation icons shown on Connection Manager.

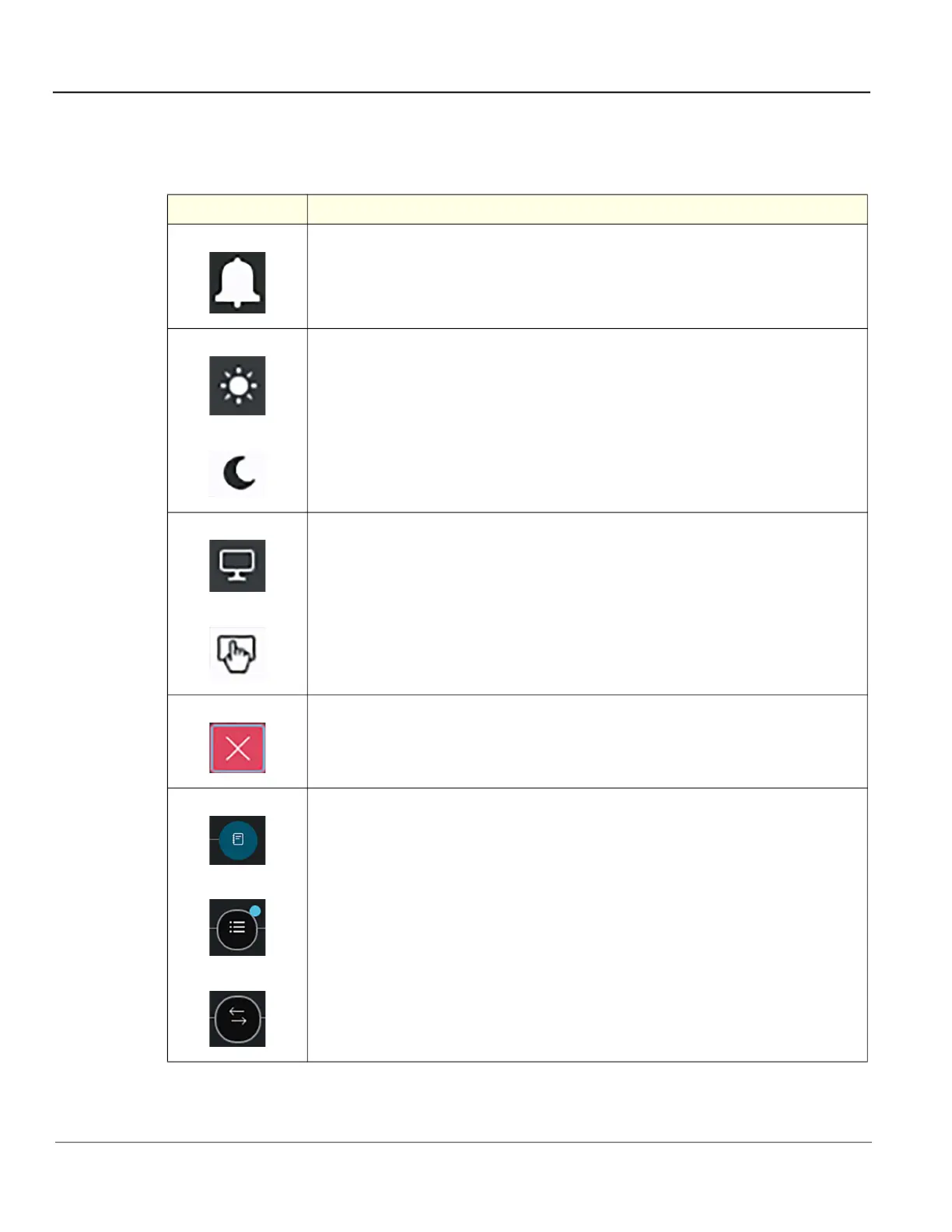

Table 3-8 Icons on Connection Manager - Navigation
Icon Description
Select this icon to view alert notifications. For example, there will be a Restart required notification if
the LAN network settings are changed and the device is not restarted.
Select these icons to toggle between lights on and lights off.
Select these icons to toggle between viewing Connection Manager on the upper operator panel (main
monitor) and the lower operator panel (touch panel).
Select this icon to close Connection Manager.
Select these icons to directly navigate to the labeled pages.
When the icon is solid blue, that page is selected and currently displayed.
When the icon is black with a blue dot in the upper corner, that page is not selected but has unsaved
changes.
When the icon is black, that page is not selected.
