GE HealthCare CONFIDENTIAL
Direction
5936427
, Rev. 1
LOGIQ Totus
Basic Service Manual
5 - 20
Section 5-6 - Front End Description
5-6-2
Card rack circuit boards overview and location
The card rack houses all the transmit, receive, and processing circuit boards.

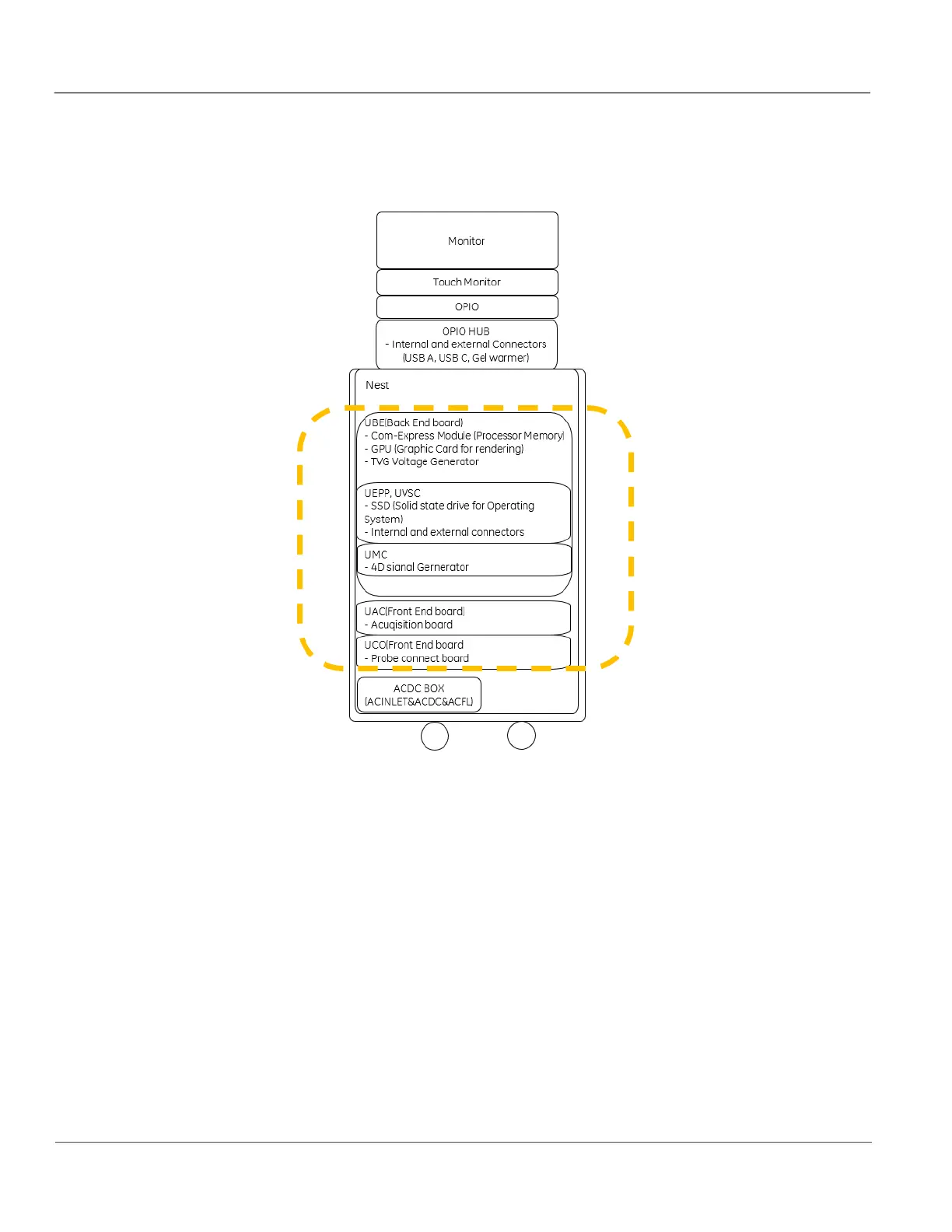

Figure 5-1
1 Card Rack Boards (indicate orange box)
217
219
