GE HealthCare CONFIDENTIAL
DIRECTION 5936427, REV. 1 LOGIQ TOTUS Basic Service Manual
8 - 86 Section 8-6 - Replacing Monitor and Monitor Arm
8-6-7 Replacement of the HDU 23.8 inch Monitor LOGIQ Exx
This table includes information specific to these instructions. For more information 8-2-6 "Tools needed
for servicing the LOGIQ Totus" on page 8-5 /8-2-7 "PPE Required During Service" on page 8-6.
8-6-7-1 Preparations
1.) Power off/Shutdown the system as described in 1-7-2 "Lockout/tagout procedure" on page 1-25
8-6-7-2 Removal Procedure
8-6-7-3 Installation Procedure
1.) Parts to be installed in reverse order of removal
Table 8-37 Manpower, Time, Tools, and PPE
Manpower Time Tools PPE
One person Approximately 15 minutes Phillips screwdriver
Cut resistant gloves
Knee Pad

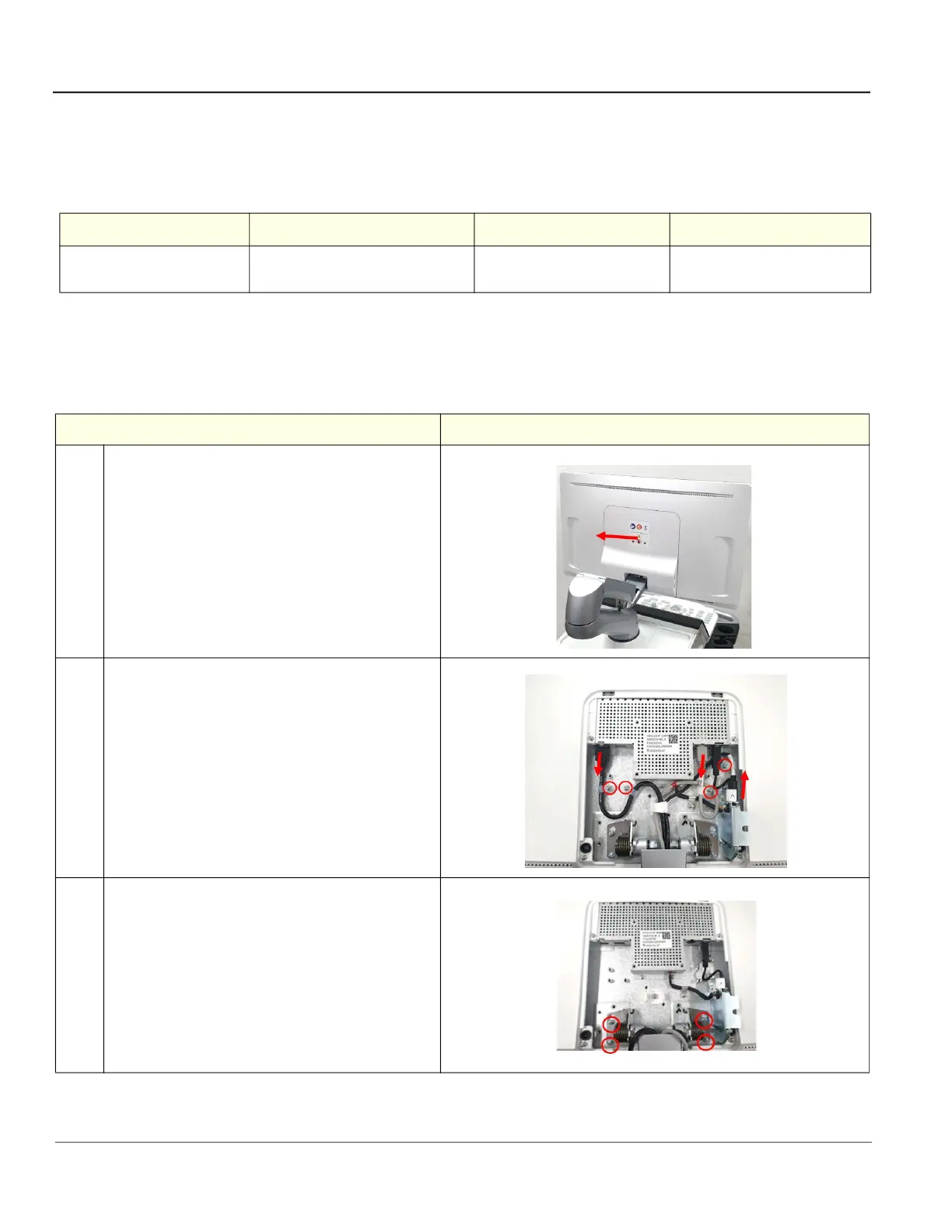

Steps Corresponding Graphic
1. Remove the Monitor Cable Cover.
2. Unscrew 4 screws. Disconnect the UBE To Monitor
HDMI Cable, OPIO HUB To Monitor USB 2.0 Cable
and OPIO HUB To Monitor Power Cable.
3. Unscrew 4 screws to remove the HDU 23.8 inch
Monitor LOGIQ Exx from the console.
