GE HealthCare CONFIDENTIAL
Direction 5936427, Rev. 1 LOGIQ Totus Basic Service Manual
5 - 32 Section 5-10 - Power Distribution Description
5-10-2 Power Supply Distribution (continued)
LOGIQ Totus has a Circuit Breaker, located on Rear bottom side.
The main power module is located in the UNITY ACDC assy, and main task is to isolate the scanner
from the on-site mains power system and to supply the various internal subsystems with DC power.
LOGIQ Totus Power module does not have dedicated FAN.
A current limiter will switch off the power if any of the outputs overload.
Under-voltage and over-voltage protection is provided for all of the output voltages.
The power supply will be turned off if the temperature goes too high.

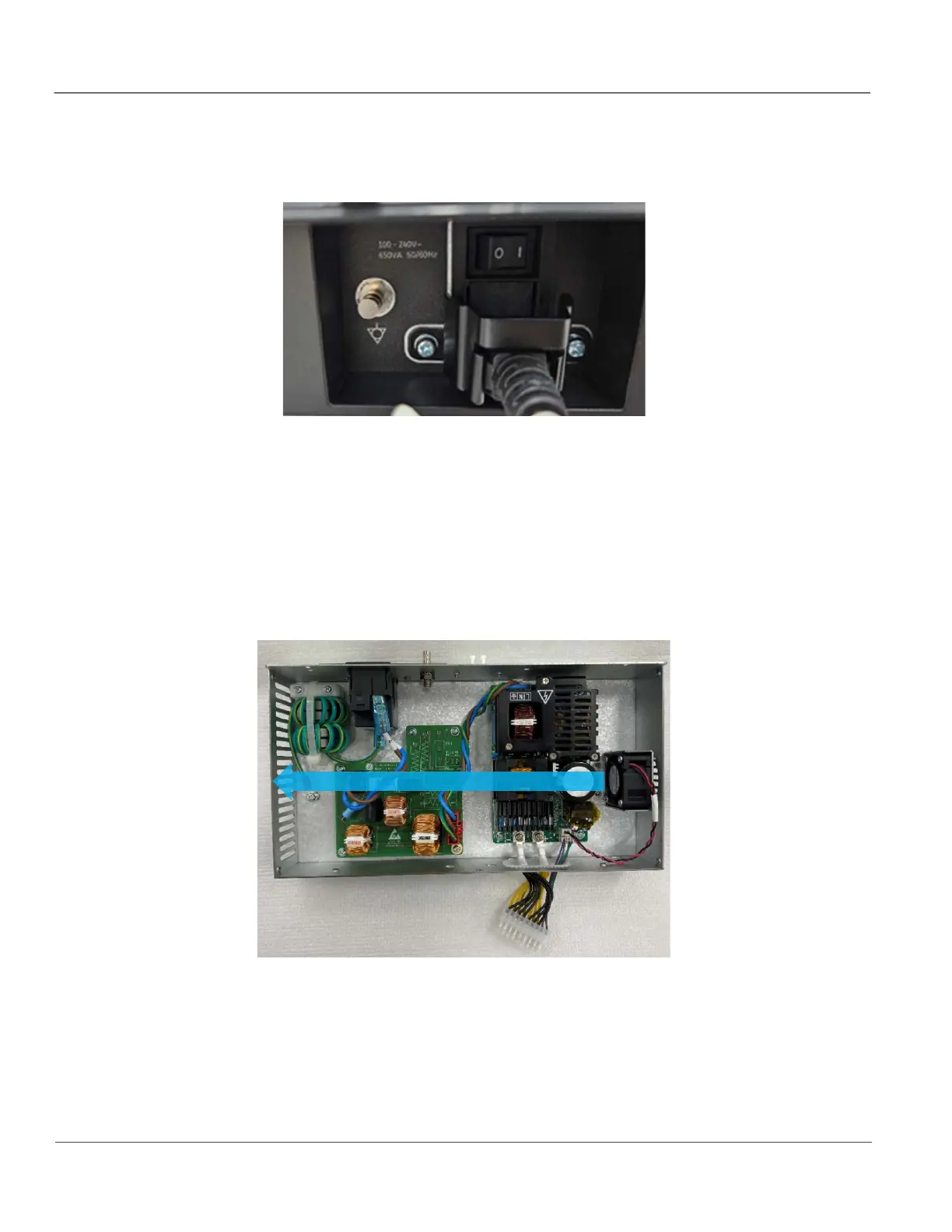

Figure 5-18 Cooling Air Flow of Power Supply
Figure 5-17 Circuit Breaker
To Next Page
