GE HealthCare CONFIDENTIAL
Direction 5936427, Rev. 1 LOGIQ Totus Basic Service Manual
Chapter 5 Components and Functions (Theory) 5 - 23
5-7-2 UBE-T
The UBE-T (Back End and Power Supply) module has two main tasks.
One is single board computer built from a COM express module fitted into customized rack. Its main
function is to be the central processing unit of the Ultrasound system, controlling all the functionality,
user interface and connectivity of the scanner. Another is the Main Power Supply unit with semi-
customized ACDC converter unit.
BackPlane connectors give the Power to UAC-T/UCO-T boards, and PCI-e signals for image-
processing.
The UBE-T also host a single slot GPU card, a M.2 Solid State Drive (SSD).

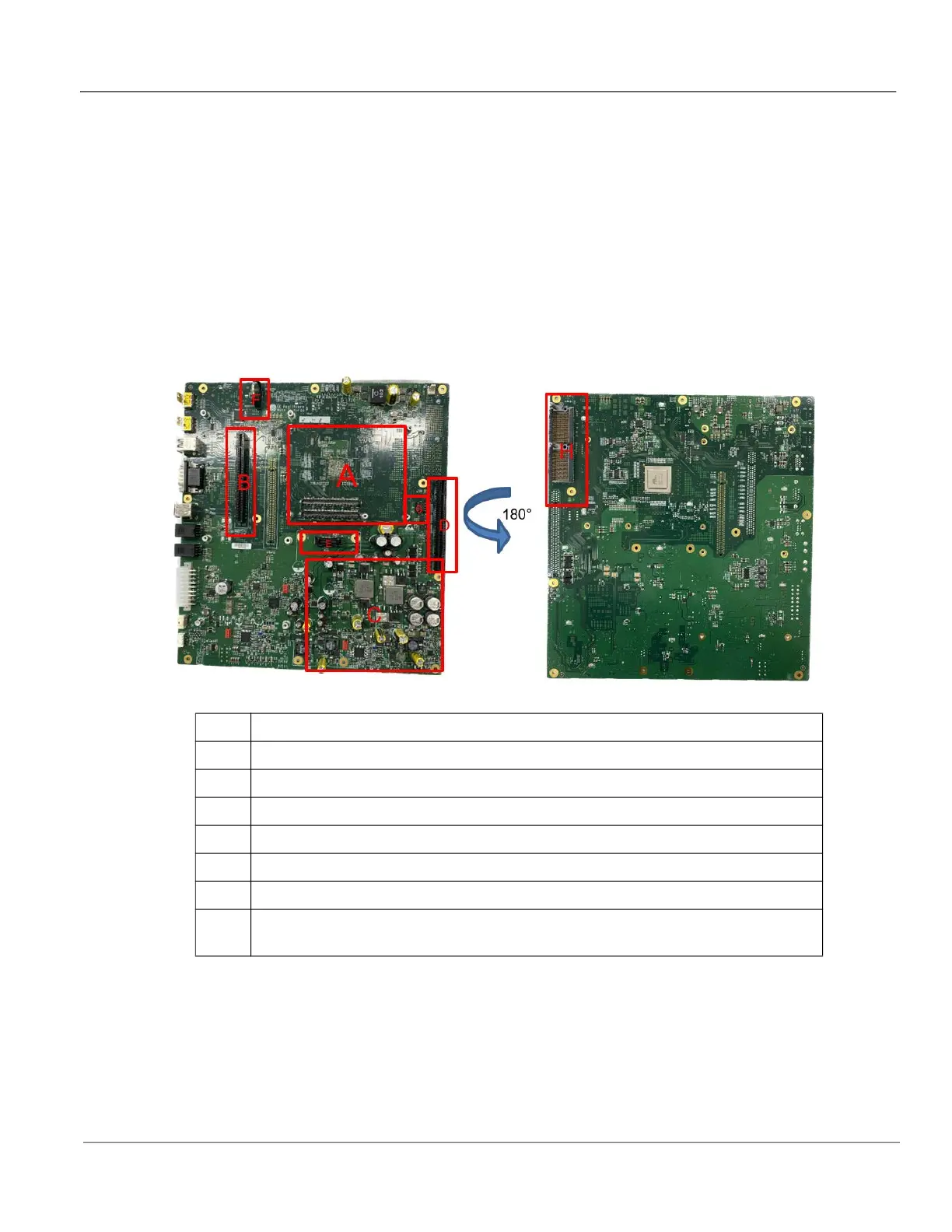

Figure 5-13 Location of each module
A
CPU module
B
GPU slot
C
DCDC convertors for HVs (variable DC High voltage, +/-10V ~ +/-100V)
D
Connector for UEPP
E
Connector for UMC(4D moto control) board
F
Lithium Coin Battery
G
Removable EEPROM to store Console S/N and Option keys
H
Connector for UAC
