8-5-3 Replacement of the Power cable
When preparing for the replacement, confirm that no images are in the clipboard or opened exams.
This table includes information specific to these instructions. For more information 8-2-6 "Tools needed
for servicing the LOGIQ Totus" on page 8-5 and 8-2-7 "PPE Required During Service" on page 8-6.
Table 8-19 Manpower, Time, Tools, and PPE
Manpower Time Tools PPE
One person Approximately 30 minutes Phillips screw driver
Cut resistant gloves
Knee Pad (if kneeling is required)
Table 8-20 Power cable removal

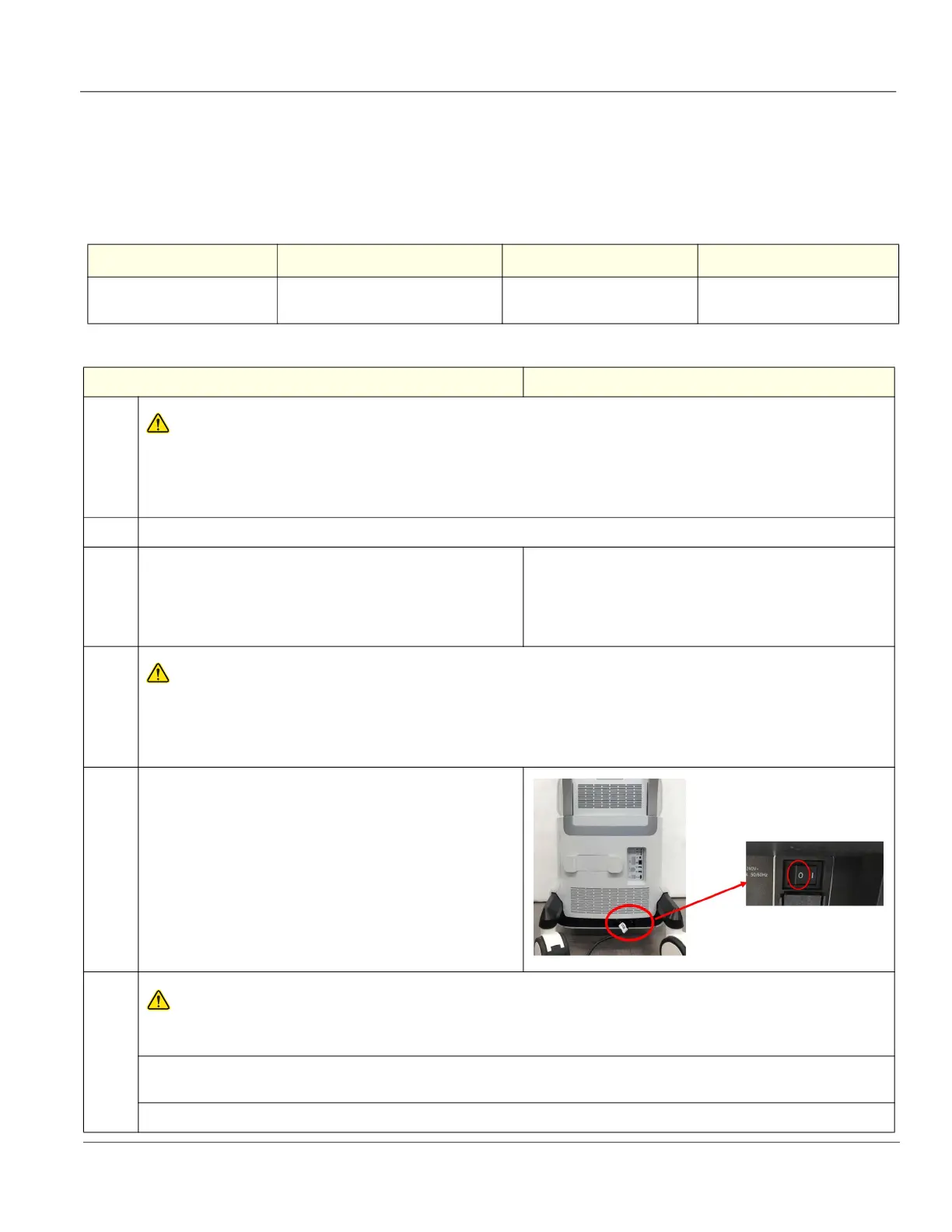

Step Corresponding Graphic
CAUTION
Risk of losing patient data
To avoid losing patient data, ensure that you have properly ended the patient’s exam and transferred all exam data/
images/clips.
1.
Set the caster brake.
2. To completely power down the LOGIQ Totus:
Lightly press the ON/OFF button on the operator panel to
display the System - Exit menu.
Select Shutdown to completely power down the LOGIQ
Totus.
CAUTION
DO NOT turn off the breaker before the Power button is changed to blue.
Data may be lost or system software damaged if the breaker is turned off before the Power button is changed to
blue.
3.
Turn off the breaker on the back of the system.
WARNINGWARNING
To avoid risk of fire, the system’s power must be supplied from a separate, properly rated outlet.
Under no circumstances should the AC power plug be altered, changed, or adapted to a configuration rated less than
specified. Never use an extension cord or adapter plug.
To help assure grounding reliability, connect to a “hospital grade” or “hospital only” grounded power outlet.
To Next Page
