5 - 2 Section 5-2 - LOGIQ Totus Models
Section 5-2
LOGIQ Totus Models
Table 5-1 LOGIQ Totus Software Configuration and Hardware
MODEL NUMBER DESCRIPTION SOFTWARE VERSION
5926013 LOGIQ Totus R4.5.x
5943511 LOGIQ Totus HDU R4.5.x

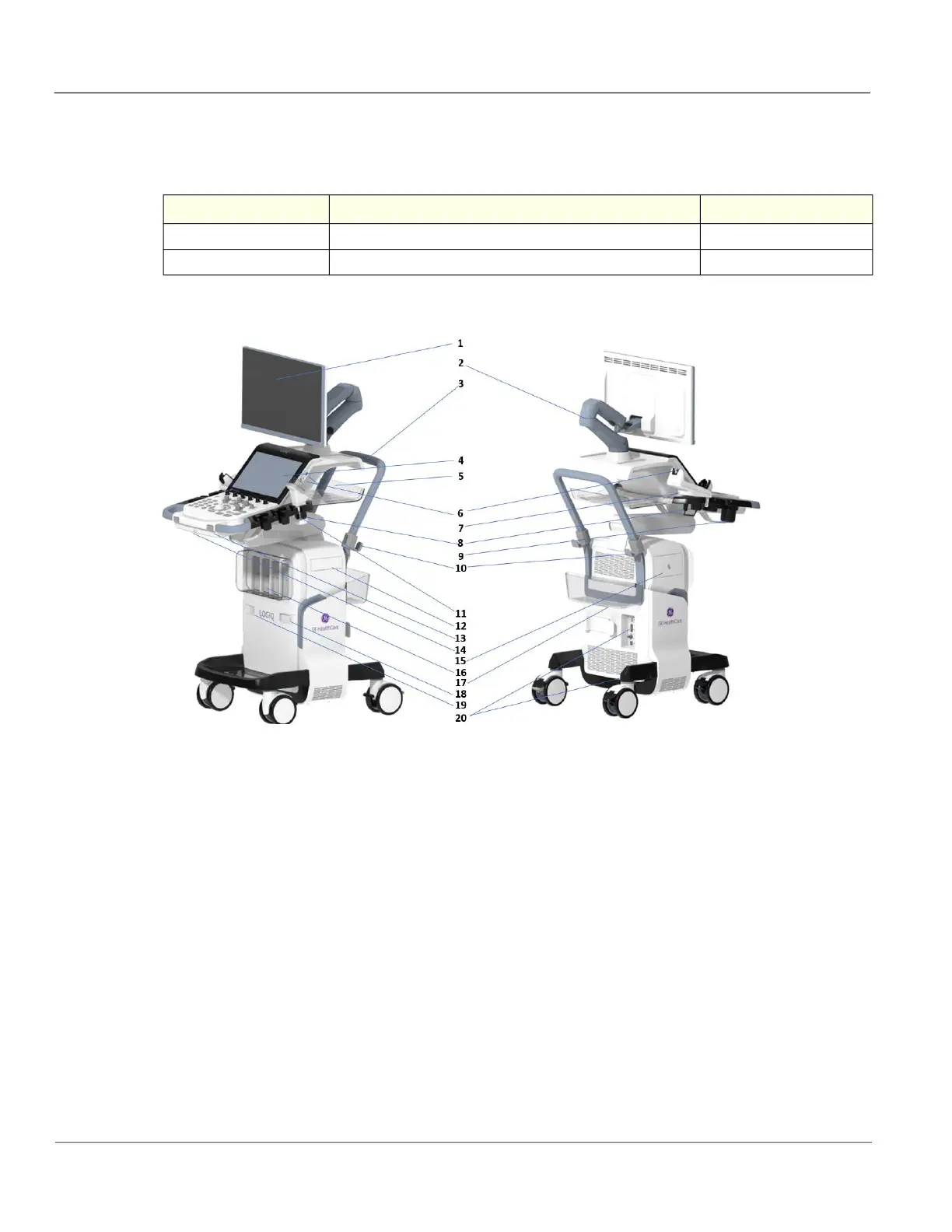

Figure 5-1 LOGIQ Totus - Major Components (LCD monitor)
1. 23.8 inch widescreen monitor
2. Monitor arm
3. Rear handle
4. Control panel with touch panel display
5. OPIO rear tray (option)
6. USB port (2 A types, 2 C types), Microphone
7. Horizontal TV probe holder (option)
8. Probe holder
9. Gel holder or Gel warmer (option)
10. Rear handle cable hook (option)
11. Wireless probe charger (option)
12. V-Navi controller (Option)
13. Front handle with control panel rotation and up/down button
14. AN Keyboard (option)
15. BW printer (option) or Drawer (option) bay
16. Probe connectors
17. Rear basket (option)
18. Patient I/O Port (Option)
19. CW probe port (Option)
20. External I/O connectors and Mains power switch
