Direction 5936427, Rev. 1 LOGIQ Totus Basic Service Manual
Chapter 5 Components and Functions (Theory) 5 - 3

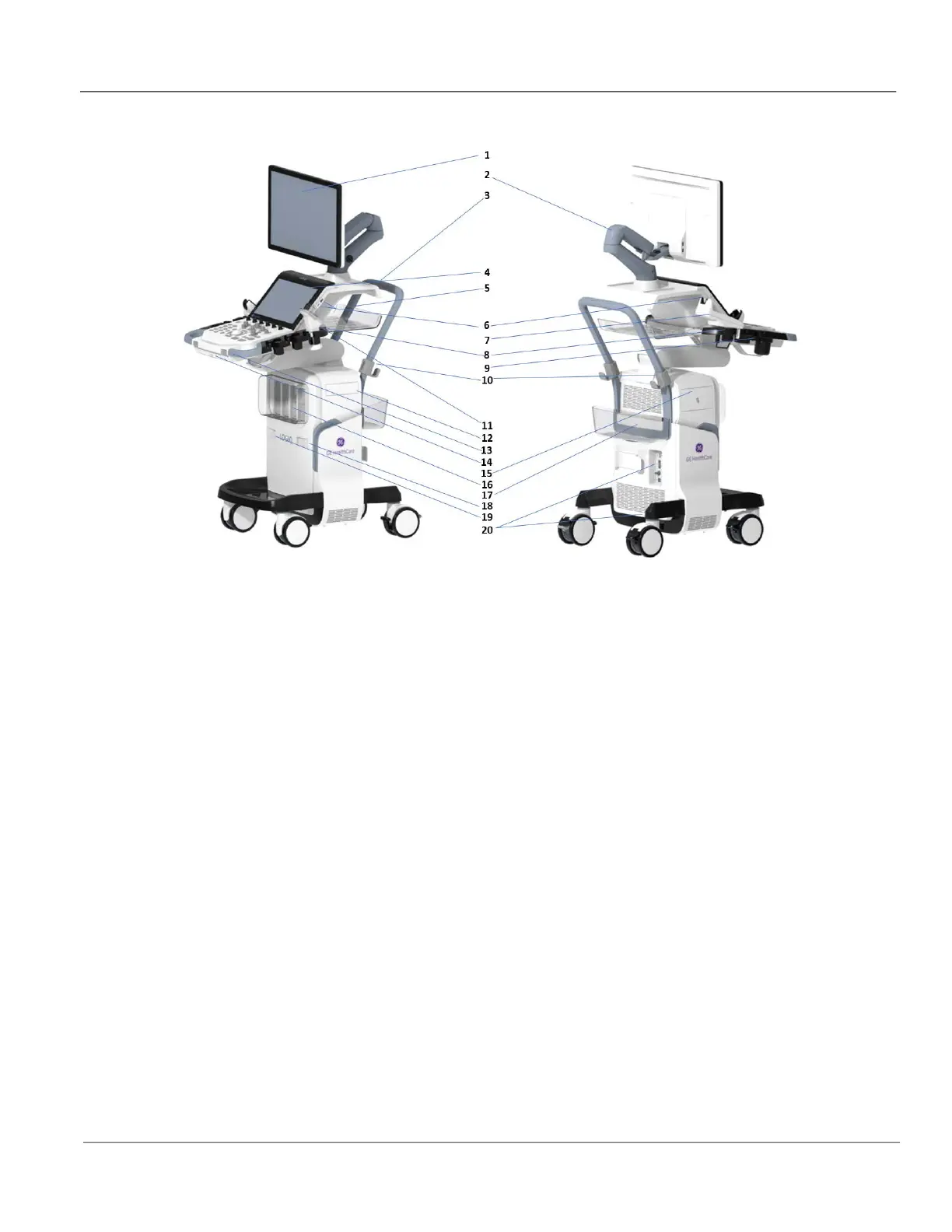

Figure 5-2 LOGIQ Totus - Major Components (HDU monitor)
1. 23.8 inch widescreen monitor
2. Monitor arm
3. Rear handle
4. Control panel with touch panel display
5. OPIO rear tray (option)
6. USB port (2 A types, 2 C types), Microphone
7. Horizontal TV probe holder (option)
8. Probe holder
9. Gel holder or Gel warmer (option)
10. Rear handle cable hook (option)
11. Wireless probe charger (option)
12. V-Navi controller (Option)
13. Front handle with control panel rotation and up/down button
14. AN Keyboard (option)
15. BW printer (option) or Drawer (option) bay
16. Probe connectors
17. Rear basket (option)
18. Patient I/O Port (Option)
19. CW probe port (Option)
20. External I/O connectors and Mains power switch
