Direction 5936427, Rev. 1 LOGIQ Totus Basic Service Manual
5 - 34 Section 5-12 - Air Flow Distribution
Section 5-12
Air Flow Distribution
5-12-1 Air Flow Distribution
Through the filter grid on the front of the system, air flow into the LOGIQ Totus. By means of the 2 FAN,
air is blown through the nest-box, and the warm air exits the system through holes in the up side panel
of the system.

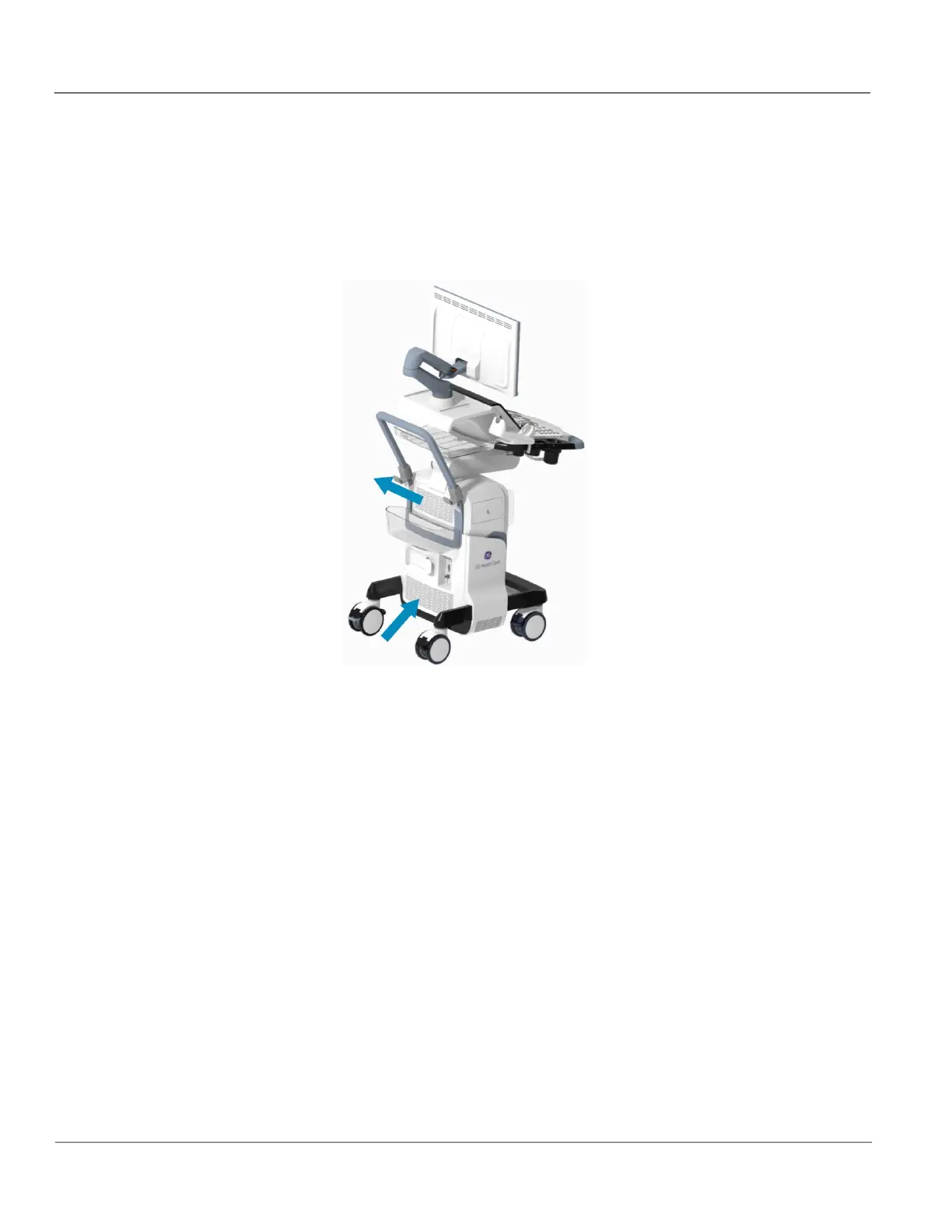

Figure 5-20 Air Inlet/Outlet
