GE HealthCare CONFIDENTIAL
Direction 5936427, Rev. 1 LOGIQ Totus Basic Service Manual
5 - 24 Section 5-7 - Back End Description
5-7-2 UBE-T (continued)

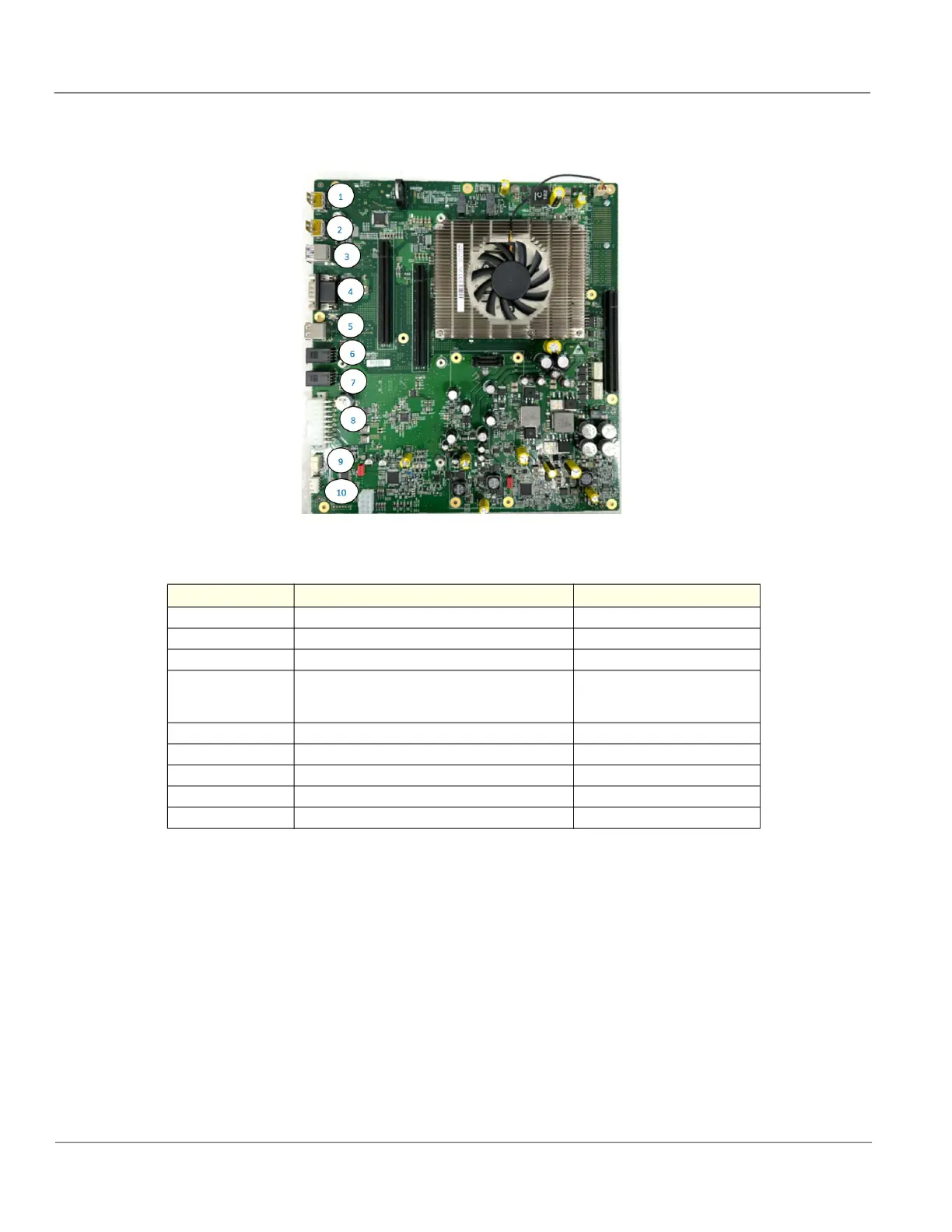

Figure 5-14 Connector description
Table 5-5 Connector description table
Connector Description Additional Information
1
Video output (HDMI) for Main Monitor
2
Video output (HDMI) for Touchscreen
3
USB 3.0 for U-Hub and touch control
4
Power for Main Monitor, Touchscreen, Control
Console and
U-Hub
Power button signal and Audio
signals for main speaker
5
USB 2.0 for options
6,7
Power for options
8
Main Power from U-AC BOX
9
Control signals for battery option
10
System FAN connector
