Section 8-6 - Replacing Monitor and Monitor Arm 8 - 85
8-6-6-3 Installation Procedure
1.) Parts to be installed in reverse order of removal
2.) Perform “Functional Checks after FRU replacement (Debrief Guideline)” as described in Section 8-
12 on page 8-223

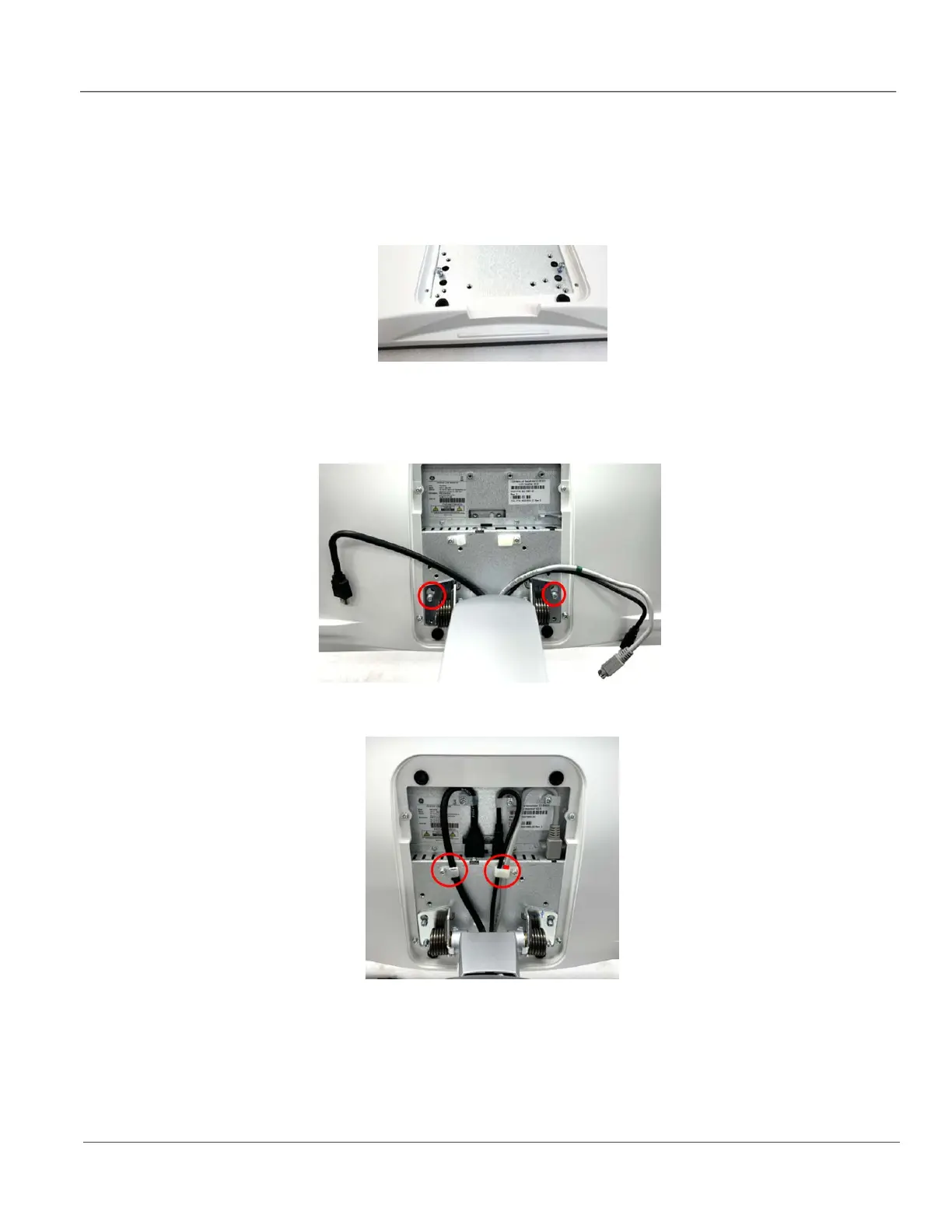

NOTE: Place 2 screws halfway in ULTRASOUND BEZELLESS 23.8INCH LCD T2
NOTE: When installing ULTRASOUND BEZELLESS 23.8INCH LCD T2, hang ULTRASOUND
BEZELLESS 23.8INCH LCD T2 on Screw and push it to screw hole.
NOTE: Align colored points
To Next Page
