5-6-2 Card rack circuit boards overview and location (continued)
Table 5-4 Card Rack Boards
ABBREVATION BOARD NAME
TOTAL NUMBER OF CARDS PER
LOGIQ Totus
UBE-T
Back End and Power Supply
1
UAC-T
Data Acquisition 128 ch
1
UCO-T
DLP Probe Interface
1

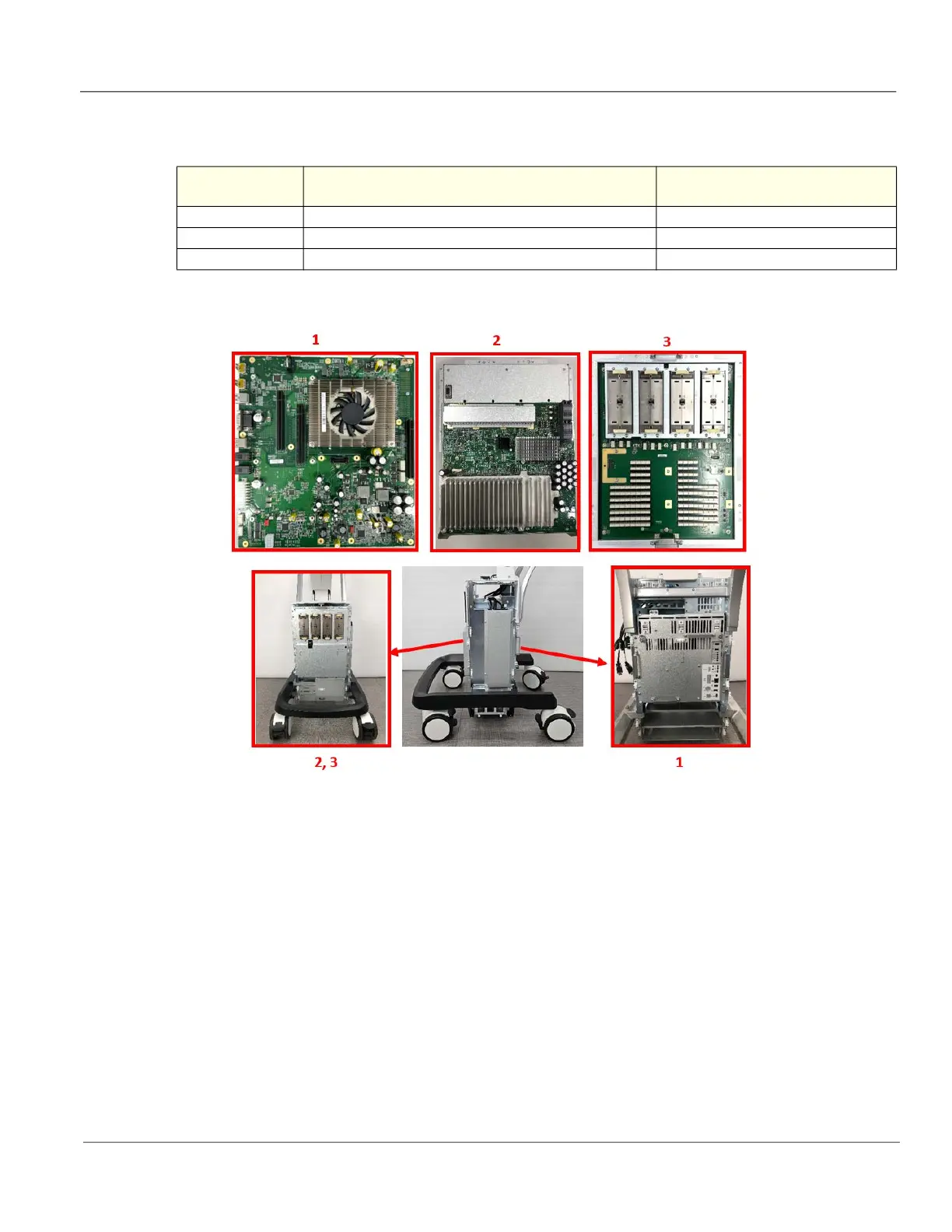

Figure 5-12 Details of Card Lack
