2 - 12 Section 2-3 - Facility Needs
2-3-4 Minimal floor plan suggestions (continued)
Floor Plan Suggestion 2.44 x 3.05 m (8 x 10 foot) Key

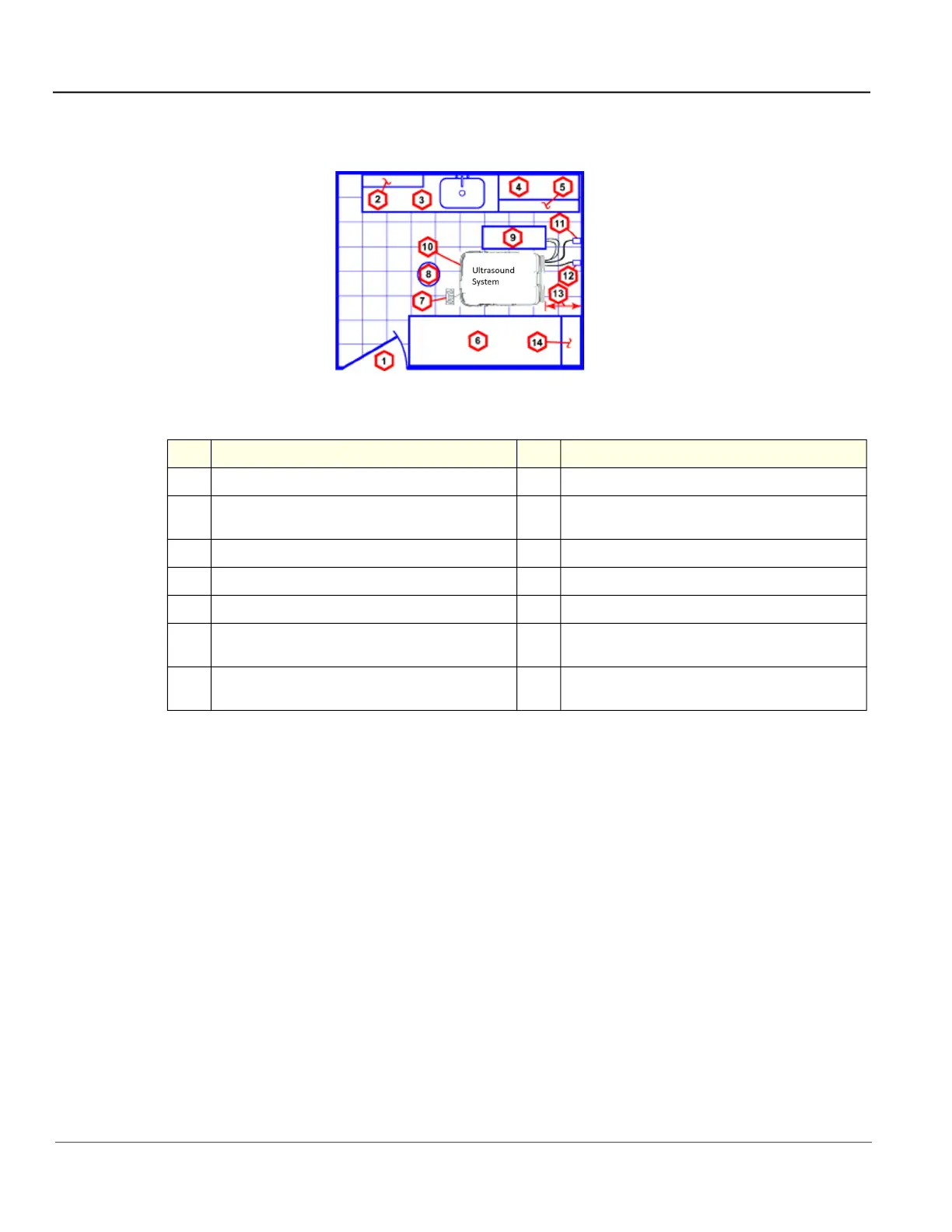

Figure 2-2 Floor Plan Suggestion 2.44 x 3.05 m (8 x 10 foot)
Item Description Item Description
1.
Door – at least 76 cm (30 inches)
2.
Film viewer
3.
Counter top, sink with hot and cold water, and supplies
storage
4.
Linen supply
5.
Probes/supplies
6.
Examination table – 193 x 61 cm (76 x 24 inches)
7.
Footswitch
8.
Stool
9.
External peripherals
10.
LOGIQ Totus
11.
Dedicated power outlet – circuit breaker protected and
easily accessible
12.
Network interface
13.
45,7 cm (1.5 ft) distance of LOGIQ Totus from wall or
objects
14.
Lockable cabinet ordered by GE HealthCare for its
software and proprietary manuals
