GE HealthCare CONFIDENTIAL
Direction 5936427, Rev. 1 LOGIQ Totus Basic Service Manual
Chapter 6 Service Adjustments 6 - 5
6-2-3 Monitor adjustments (continued)
Touch panel light
1.) Navigate to Utility (second page) > Scan Screen. The scan screen displays on the main display
while the Utility Touch Panel is active so you can the affect your adjustments are making to the
monitor.
2.) Touch panel encoder labeled as Touch Panel Light, rotate for brightness.

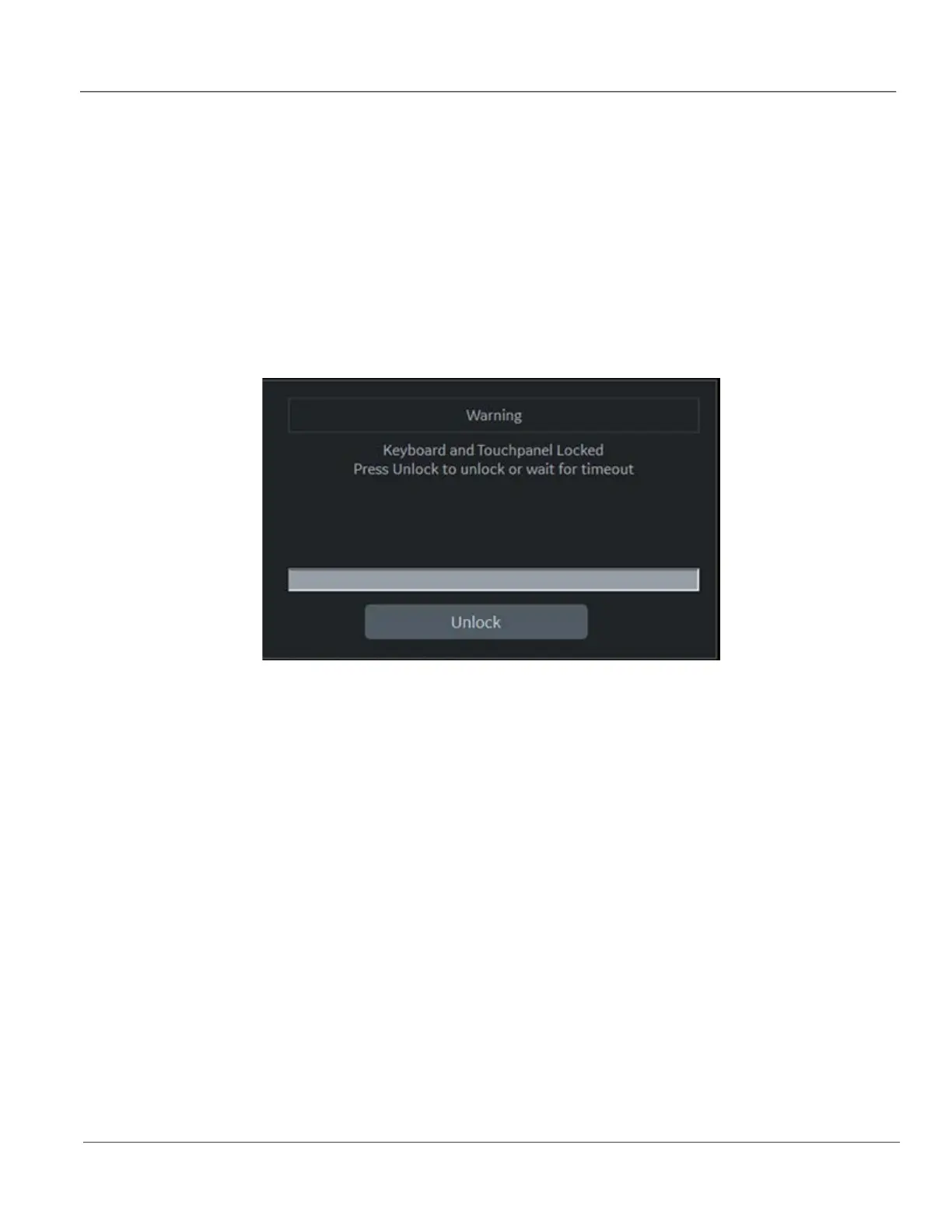

3.) Push the mode button once to display the popup and select Unlock or wait for the timeout.
4.) Adjust the Touch Panel between 10% to 100%.
For complete information the appropriate version of the LOGIQ Totus Basic User Manual,
Chapter 3 or the appropriate LOGIQ Totus Release Notes. 1-4-1 "Label Location" on page 1-13.
Figure 6-3 Touch Panel Adjustment Button
