GE HealthCare CONFIDENTIAL
Direction 5936427, Rev. 1 LOGIQ Totus Basic Service Manual
Chapter 6 Service Adjustments 6 - 13
6-3-4 Main monitor adjustments (continued)
Monitor arm tilt adjustment
If the monitor is too loose or too tight when it is tilted, perform a tilt adjustment.

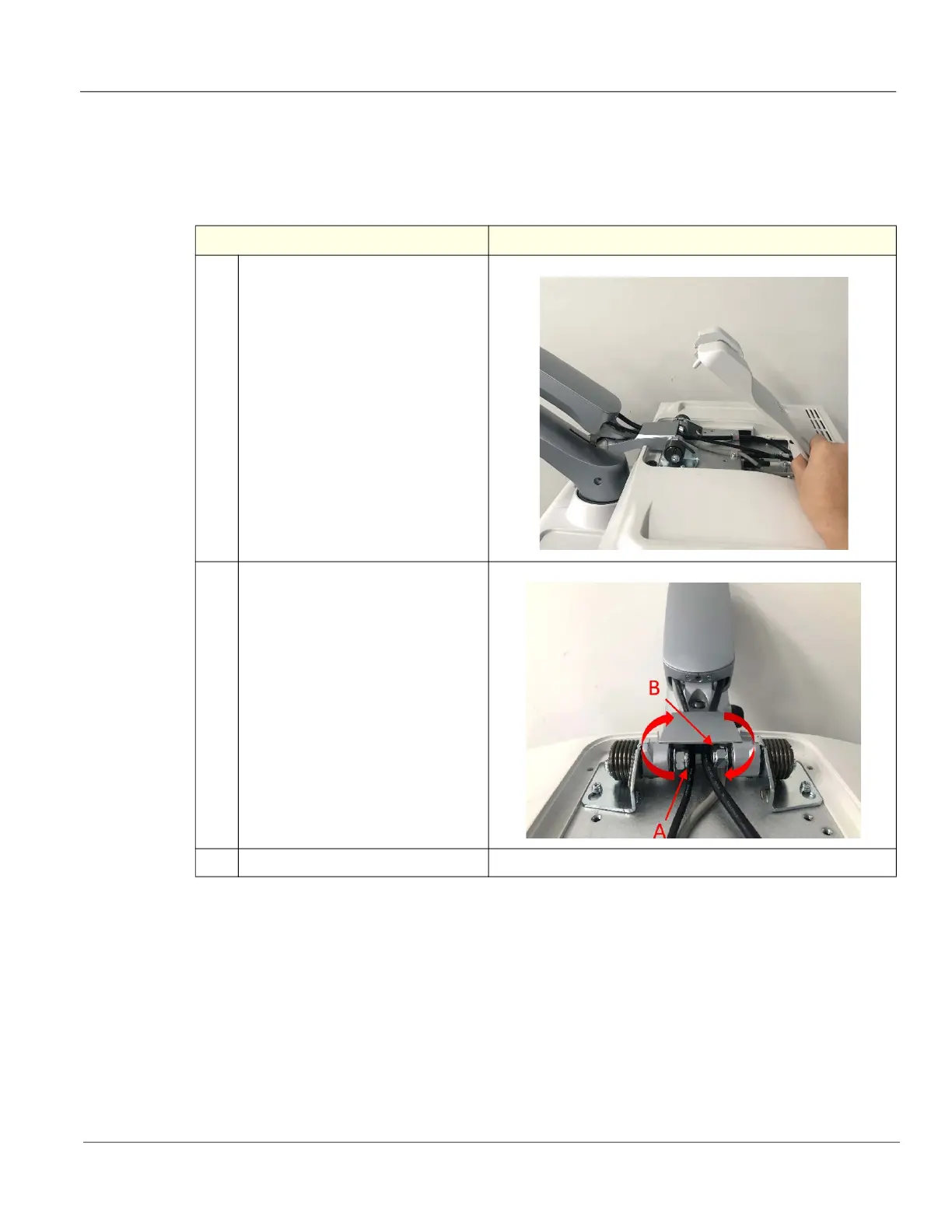

Table 6-6 Monitor Arm Tilt Adjustment
Step Corresponding Graphic
1.
Tilt the monitor down and remove the
monitor rear cover.
If you have a thick wrench, it is easier to
reach the nuts by using the boxed end of the
wrench.
2.
If the monitor is too loose, turn the
adjustment nut (A) towards the back and
nut (B) towards the front to increase the
friction, using a 13 mm wrench.
Turn the nuts the opposite direction to
decrease the friction. The monitor should
stay in the position it is released at.
NOTE: Be sure to tighten or loosen both
sides equally. Start with 1/4 turn and test full
90 degree movement before tightening or
loosening more.
3.
Reinstall the monitor rear cover.
