GE HealthCare CONFIDENTIAL
D
IRECTION
5936427
, R
EV
. 1
LOGIQ T
OTUS
Basic Service Manual

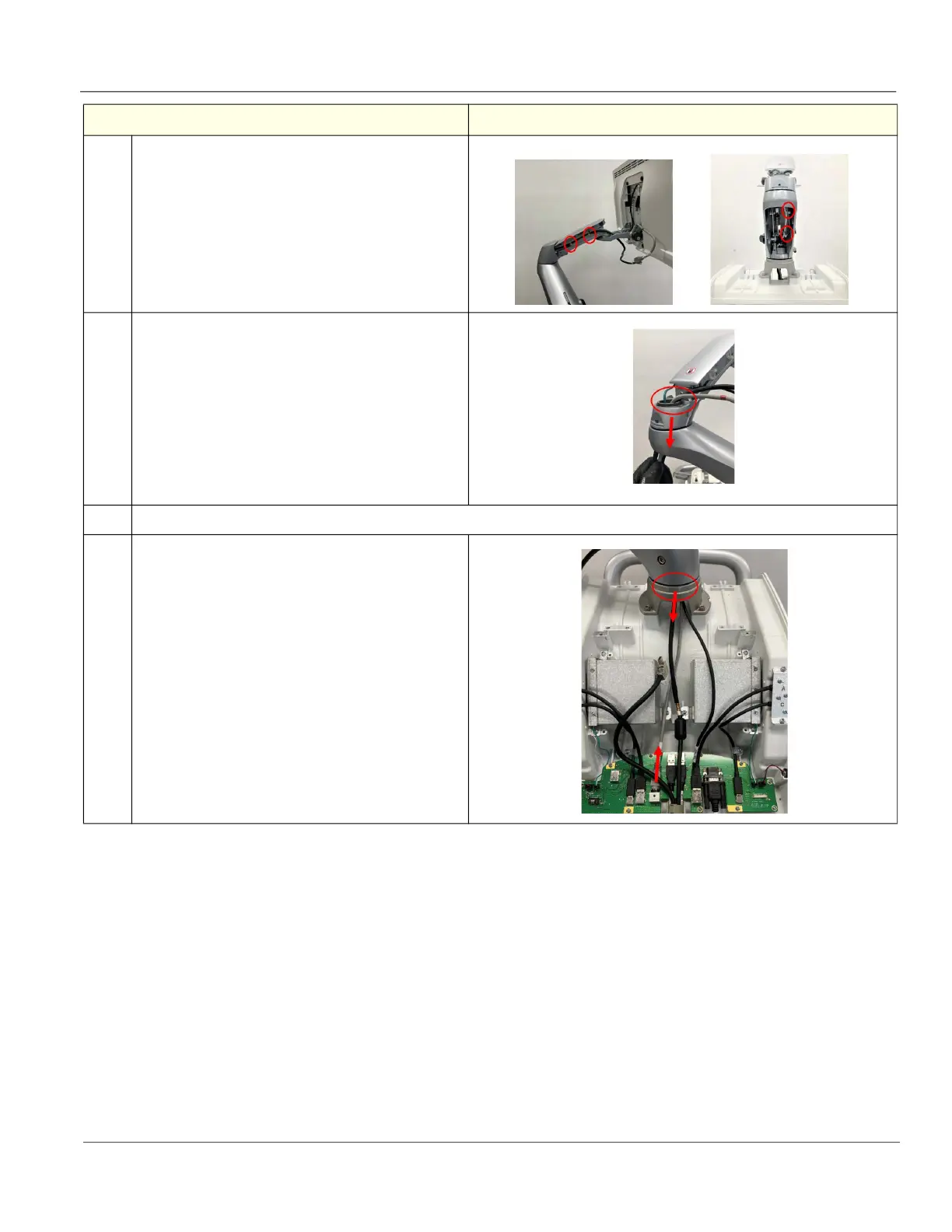

Section 8-5 - Replacing Cables
8 - 45
3.
Cut 4 Cable Ties.
4.
Pull
the
OPIO H
UB
To
Monitor
Power
Cable from
the
2nd Arm.
5.
Pull the OPIO HUB To Monitor Power Cable
from the 1st Arm
6.
Disconnect the OPIO HUB To Monitor Power
Cable
from OPIO HUB
Steps
Corresponding Graphic
370
372
Table of Contents
Table of Contents
11
Chapter 1 Introduction
33
Default Chapter
33
Overview
33
Contents in this Chapter
33
Purpose of this Chapter
33
Service Manual Overview
34
Attention
34
Contents in this Service Manual
35
LOGIQ Totus Models Covered in this Manual
36
Typical Users of LOGIQ Totus Documentation
36
Overview
41
Important Conventions
42
Conventions Used in Book
42
Standard Hazard Icons
44
Labels/Icons on the System
45
Label Location
45
Safety Considerations
46
Human Safety
46
Introduction
46
Mechanical Safety
50
Electrical Safety
53
Battery Safety
54
Dangerous Procedure Warnings
55
Lockout/Tagout (LOTO)
56
Lockout/Tagout Requirements
56
Lockout/Tagout Procedure
57
Returning/Shipping Probes and Repair Parts
61
Electromagnetic Compatibility (EMC)
62
Compliance
62
What Is EMC
62
Electrostatic Discharge (ESD) Prevention
63
Customer Assistance
64
Direction 5936427, Rev. 1
64
CHAPTER 2 Site Preparations
67
Overview
67
Contents in this Chapter
67
Purpose of this Chapter
67
General LOGIQ Totus Requirements
68
LOGIQ Totus Environmental Requirements
68
Electrical Requirements
70
EMI Limitations
72
Probe Environmental Requirements
74
Time and Manpower Requirements
74
Facility Needs
75
Purchaser Responsibilities
75
Required Facility Needs
76
Desirable Features
77
Minimal Floor Plan Suggestions
77
Networking Setup Requirements
79
Environmental Dangers
81
Privacy and Security
81
CHAPTER 3 LOGIQ Totus Setup
83
Overview
83
Contents in this Chapter
83
Purpose of this Chapter
83
Setup Reminders
84
Average Setup Time
84
Setup Warnings
84
Section 3-3 Receiving and Unpacking the Equipment
86
Receiving and Unpacking the Equipment
86
Purpose of this Section
86
Receiving and Unpacking Warnings
86
Tilt Watch Indicator
87
Transportation Box Label
89
Receiving the LOGIQ Totus
90
Unpacking the LOGIQ Totus
91
Packing Materials - Recycling Information
92
Preparing for Setup
93
Verify Customer Order
93
Physical Inspection
93
Location of Multi Caution Label and Rating Label
94
EMI Protection
94
Section 3-5 Completing the Setup
95
Completing the Setup
95
Purpose of this Section
95
LOGIQ Totus Specification Verification
95
Electrical Specification Verification
96
Connections on the Rear I/O Panel
97
Connections on the Patient I/O Panel
98
Connecting Probes
98
Power On/Boot up
100
Power On/Boot up
101
Default Security Level
103
Password Policies
104
Users
105
Groups
106
Lock out and Log on
107
Disk Encryption
108
Login
111
Logoff/Power Shut down
113
Direction 5936427, Rev. 1 LOGIQ Totus Basic Service Manual
114
Complete Power down
114
-6-1 Purpose of this Section
115
Default Chapter
115
Configuring the LOGIQ Totus
115
LOGIQ Totus Configuration
115
Purpose of this Section
115
Optional Peripherals/Peripheral Connection
116
Barcode Reader
117
Magstripe Card Reader
118
LAN Protection Cable (Option)
119
Network Printers
120
Setting up Connectivity and Tips
121
Navigating Connection Manager
122
Scanner
124
Network
125
Mycomputer Device
129
Dicom
137
Special Devices
145
Print Button
154
Dataflow
156
Advanced Settings
157
Summary
165
Setting up Paperwork
166
Product Locator Card/Udi
166
User Manual(S)
166
CHAPTER 4 Functional Checks
167
Overview
167
Contents in this Chapter
167
Purpose of this Chapter
167
Special Equipment Required
167
Recommended Test Phantoms
168
Section 4-2 General Procedures
169
General Procedures
169
General Safety Information
170
General System Functional Checks
171
Power On/Boot up
173
Power On/Boot up
174
Complete Power down
176
Power Shut down
176
Section 4-3 Functional Checks
177
Functional Checks
177
Control Panel Adjustment and Functional Checks
178
Main Monitor Positions and Lock Functional Checks
179
Brake and Swivel Lock Functional Checks
180
Alphanumeric Keyboard Functional Checks
182
Footswitch Functional Checks
182
Basic Control Functional Checks
183
Probe/Connector Functional Checks
184
B-Mode Functional Checks
185
M-Mode Functional Checks
187
System CFM and PWD Functional Checks
188
Color Mode Functional Checks
188
Color B-Mode Functional Checks
188
Color M-Mode Functional Checks
188
PW/CW Doppler Mode Functional Checks
189
CW Doppler Mode Functional Checks
190
Cineloop Functional Checks
191
Removable Media Functional Checks
192
Archiving and Loading Presets
192
Installation and Setup Procedures for Peripherals
192
Basic Measurement Functional Checks
193
Multi Image Functional Checks
194
ECG Functional Checks
194
4D Option Functional Checks
195
Volume Navigation with Inside Probe Functional Checks
195
Battery Pack Functional Checks
195
Battery Pack Extended Functional Checks
195
Shear Wave Elastography (Shear Elasto) Functional Checks
196
Chapter 5 Components and Functions (Theory)
199
Default Chapter
199
Overview
199
Contents in this Chapter
199
Purpose of this Chapter
199
LOGIQ Totus Description
200
Introduction
202
LOGIQ Totus Description
202
Purpose of this Section
202
LOGIQ Totus General Description
203
Purpose of this Section
204
Software Description
204
LOGIQ Totus Base Load Image and Application Software
205
Advanced Information - Option Key Structure
206
Electronic Media
206
LOGIQ Totus Models
200
Software Description
206
Advanced Information - File Structure
207
Advanced Information - Logging
210
Advanced Information - Encryption
211
Log File Content
213
Smart Device Applications
214
Service Desktop Description
215
User Level of the Service Desktop
215
Front End Description
217
Purpose of this Section
217
Card Rack Circuit Boards Overview and Location
218
Front End Description
218
Back End Description
220
Purpose of this Section
220
Ube-T
221
Backplane Description
223
Purpose of this Section
223
Backplane (UEPP)
224
Purpose of this Section
225
Top Console Description
225
Transporting the LOGIQ Totus
225
Control Panel Movement - Principle of Operation
226
Direction 5936427, Rev. 1 LOGIQ Totus Basic Service Manual
226
Top Console Description
226
Power Distribution Description
228
Purpose of this Section
228
Power Supply Distribution
229
Power Distribution Description
230
Cable Connection UBE-T - OPIO
231
Air Flow Distribution
232
Internal Hardware Options and Peripherals
233
Options and Peripherals Description
233
Purpose of this Section
233
External Peripherals
234
Basic Service Documentation
235
Product Manuals
235
User Documentation
235
Contents in this Chapter
237
Overview
237
Purpose of this Chapter
237
Monitor Adjustments
238
Purpose of this Section
238
Access to Monitor Adjustments
239
Monitor Adjustments
240
Advanced Monitor Adjustments
242
Cautions and Warnings
246
Monitor and Monitor Arm
246
Monitor Arm And/Or Monitor Range of Motion Adjustment
246
Purpose of this Section
246
Main Monitor Adjustments
247
DICOM Server Service Adjustments
250
Shutdown Problems When Running a Portable LOGIQ Totus
250
Slow Response Rate between the LOGIQ Totus and a DICOM (PACS) Server
250
Volume Navigation (VNAV) Calibration
250
CHAPTER 6 Service Adjustments
237
CHAPTER 7 Diagnostics/Troubleshooting
251
Overview
251
Contents in this Chapter
251
Purpose of this Chapter
251
Gathering Troubleshooting Data
252
Purpose of this Section
252
Collecting Vital System Information
253
Shortcut Keys
253
Collecting a Screen Capture with Logs
254
Capturing Network Logs to Use for Troubleshooting
258
Section 7-3 Service Desktop
260
Default Chapter
260
Service Desktop
260
Purpose of this Section
260
Color Statuses
261
Disruptive Mode
261
Service Classes
262
Home
262
Dicom
264
Home
265
Dicom
272
Dicom
274
Utilities
278
Utilities
281
Options
291
Agent Configuration
292
Software Maintenance
295
Software Maintenance
296
Different Location
300
Different Power Outlet
300
Different System
300
Disconnect External Cables
300
Electromagnetic Interference (EMI) Troubleshooting
300
Prevention/Abatement
300
LOGIQ Photo Crashes if Camera Permission Denied
301
Smart Device Apps Library Downloads
301
Smart Device Apps Pairing Confirmation Delay
301
Smart Device Apps Troubleshooting
301
Upside down Image from LOGIQ Photo
301
Noise
302
Noise Troubleshooting
302
Doppler Noise
303
Intermittent Noise
303
Noise Picked up from the Air
303
Noise Received through the External Cables
303
Noise on a Board
304
ECG Display Disappears after Backup/Restore
305
Options Troubleshooting
305
Unable to Measure in both Stiffness and Velocity in Breast and Thyroid
305
Breast Assistant, Powered by Koios DS
306
Device Management (Device Mgmt)
307
Body Pattern Probe Mark Shift
320
IC/RIC5-9 CHI M-Mode too Dark
320
ML6-15 Breast B and Color Flow "Zipper Artifact
320
Probe Recognition
320
Probes Troubleshooting
320
Automatic Probe Diagnostics (Vitaondemand)
321
Advanced Probe Option
323
Ezbackup will Not Delete Images to Open Disk Space
324
Peripherals Troubleshooting
324
Test of Printers
324
Setting Troubleshooting
325
Problems with Annotations/Comments and Scan Assistant
326
Scan Assistant Creator
326
Scan Assistant Troubleshooting
326
Contents in this Chapter
327
Overview
327
Purpose of this Chapter
327
Purpose of this Section
328
Warnings and Important Information
328
Warnings
329
ESD Receptacles
330
Manpower - When Two Persons Are Needed
330
Returning/Shipping Probes and Repair Parts
330
Tools Needed for Servicing the LOGIQ Totus
331
PPE Required During Service
332
Definitions of Front, Rear, Right and Left
333
Loading / Reloading / Upgrading the Software
334
Purpose of this Section
334
Backing up the Patient Archive and System Configurations
335
LOGIQ Totus Model Software Configuration and Hardware
335
Software Provided with the LOGIQ Totus
335
Space Management - Moving All Images
335
Overview of the Base Image and Application Software
336
Loading the Base Image and Application Software - Full Load
337
Loading the Base Image and Application Software - System Only
349
Loading Only the Application Software
355
8-4-10 Loading Software from the Internal Partition
360
Full Disk Encryption and Replacement Procedures
363
8-4-12 Software Download and Install
365
CHAPTER 8 Replacement Procedures
327
Section 8-5 Replacing Cables
366
Replacing Cables
366
Purpose of this Section
366
Preparation
366
Replacement of the Power Cable
367
Replacement of the OPIO HUB to Monitor Power Cable
370
Replacement of the OPIO HUB to Lower Keyboard PWA Power Cable
373
Replacement of the OPIO HUB to Lower Keyboard PWA USB Cable
374
Replacement of the Lower Keyboard to Touch Panel PWA Power & USB Cable
375
Replacement of the UBE to OPIO Touch Panel HDMI Cable
376
Replacement of the UBE to Monitor HDMI Cable
380
8-5-10 Replacement of the UBE to OPIO HUB USB 3.0 Cable
385
8-5-12 Replacement of the ACDC Link Cable to UBE Cable
393
8-5-13 Replacement of the OPIO HUB to Monitor USB 2.0 Cable
396
Replacing Monitor and Monitor Arm
399
Purpose of this Section
399
Replacement of the T1 Monitor Arm Cover Set
400
Replacement of the LCD ARM-T1
403
Replacement of the Monitor Cover Set-T
406
Replacement of the HD Monitor Cover Set-T
408
Replacement of the Main ULTRASOUND BEZELLESS 23.8INCH LCD T2
410
Replacement of the HDU 23.8 Inch Monitor LOGIQ Exx
412
Replacing OPIO
414
Purpose of this Section
414
Replacement of the OPIO Top Cover Set-T
415
Replacement of the Probe Holder Set-T
416
Replacement of the Gel Holder R3
417
Replacement of the Probe Holder Rubber Set-T
418
Replacement of the OPIO Handle Cover Set-T
419
Replacement of the T2 OPIO Base Rear Cover Assy
421
Replacement of the Unity Gel Warmer Cable Cover
422
Replacement of the OPIO Swivel Up/Down Button Set-T
423
8-7-10 Replacement of the UOPIO-T Assy
424
8-7-12 Replacement of the T2 OPIO Cable Hook
428
8-7-13 Replacement of the Speaker Grill Set-T
429
8-7-14 Replacement of the T2 OPIO Lower Assy
430
8-7-15 Replacement of the T2 OPIO Upper Assy
431
8-7-16 Replacement of the OPIO Knob Set-T
432
8-7-17 Replacement of the OPIO Lower Cover Set-T
433
8-7-18 Replacement of the OPIO Button Set-T and the User Define Key Cap Set-T
435
8-7-19 Replacement of the T2 OPIO Key Rubber
436
8-7-20 Replacement of the OPIO Mode Encoder Set-T
438
8-7-21 Replacement of the OPIO Joycoder Set-T
440
8-7-22 Replacement of the Touch Panel Joycoder Set-T
442
Replacement of the Touch Panel MIC Set-U
444
8-7-24 Replacement of the External USB Set-U
445
8-7-25 Replacement of the Speaker Set-U
448
8-7-26 Replacement of the UHUB-T
450
8-7-27 Replacement of the OPIO PWA-T
451
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the GE LOGIQ Totus and is the answer not in the manual?
Ask a question
GE LOGIQ Totus Specifications
General
Brand
GE
Model
LOGIQ Totus
Category
Medical Equipment
Language
English
Related product manuals
GE LOGIQ e
25 pages
GE LOGIQ 7
394 pages
GE LOGIQ 9
570 pages
GE LOGIQ V2
317 pages
GE LOGIQ E9
808 pages
GE LOGIQ P5
532 pages
GE LOGIQ V5
305 pages
GE LOGIQ P7
602 pages
GE LOGIQ P9
602 pages
GE LOGIQ S8
418 pages
GE LOGIQ F6
167 pages
GE LOGIQ V3
305 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
