DIRECTION 5936427, REV. 1 LOGIQ TOTUS Basic Service Manual
8 - 60 Section 8-5 - Replacing Cables
8-5-10-2 Removal Procedure

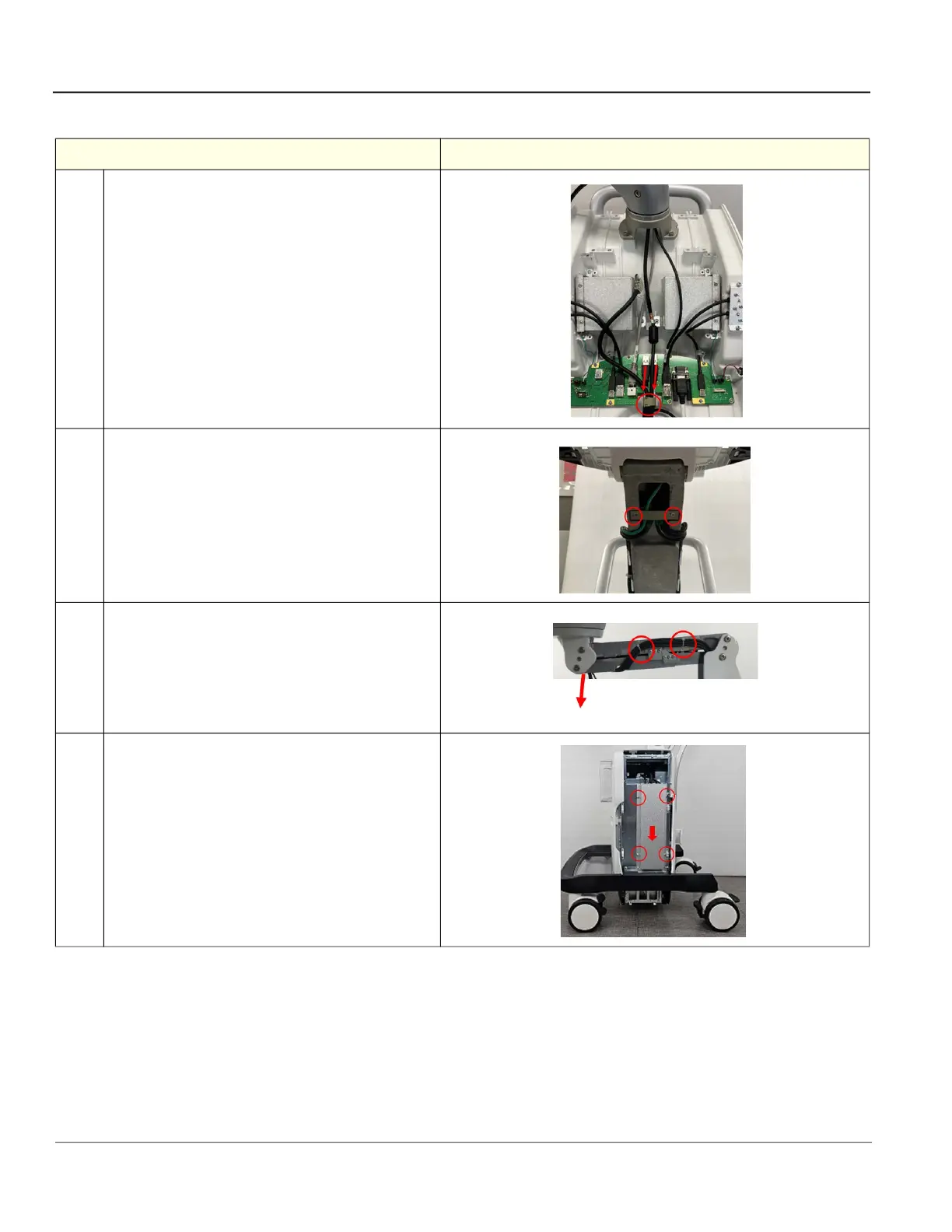

Steps Corresponding Graphic
1. Unlock the Cable Clamp and disconnect the UBE To
OPIO HUB USB 3.0 Cable from the OPIO HUB.
2. Unscrew 2 screws to remove the Cable Clamp.
3. Cut 2 Cable Ties. Pull UBE To OPIO Touch Panel
HDMI Cable to remove from the T2 OPIO BASE.
4. Unscrew 4 screws to remove the Unity Cable Cover
Brkt
