DIRECTION 5936427, REV. 1 LOGIQ TOTUS Basic Service Manual
Section 8-6 - Replacing Monitor and Monitor Arm 8 - 75
8-6-2-1 Removal Procedure

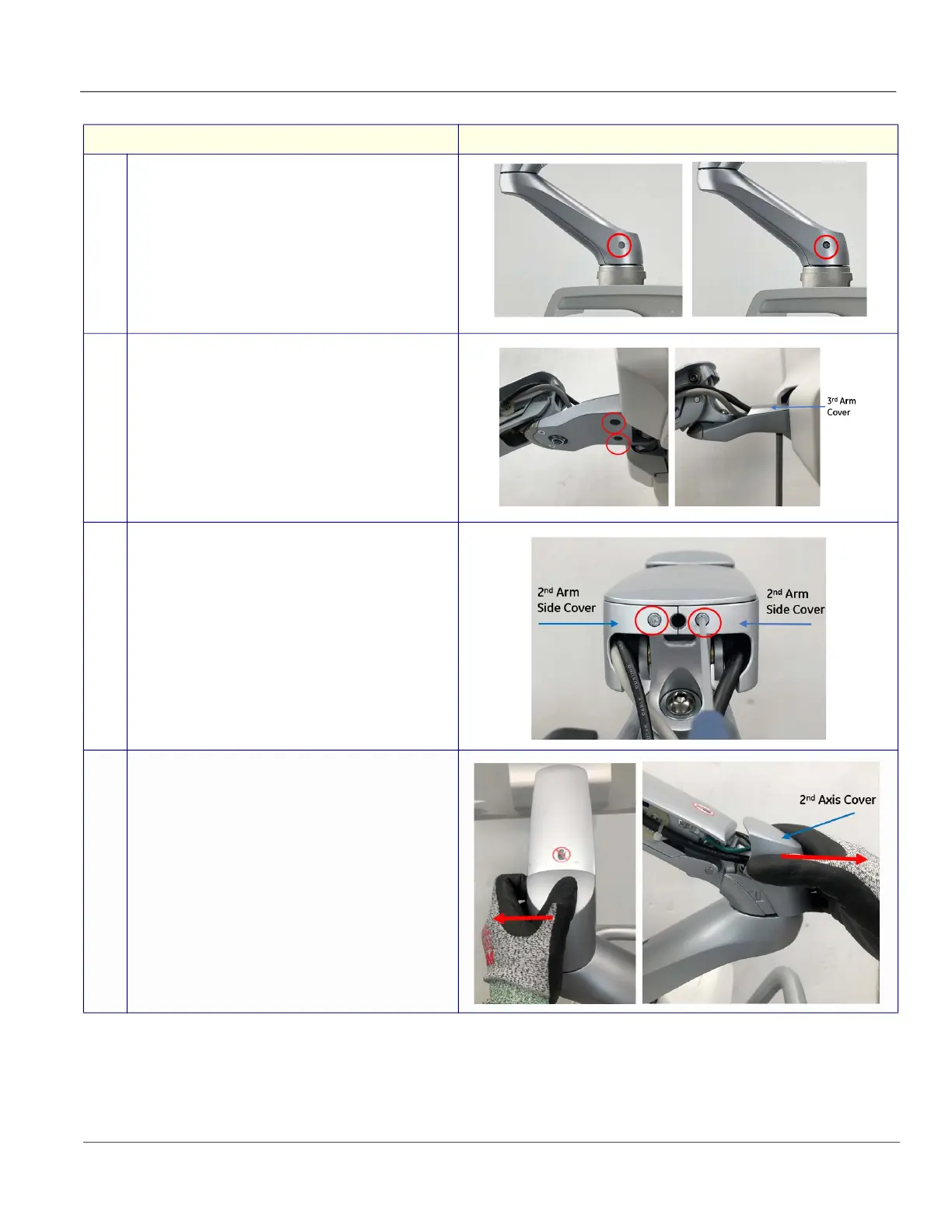

Step Corresponding graphic
1. Remove the screw cap from the LCD ARM-T1.
2.
Unscrew 2 screws to remove the 3rd Arm Cover.
3.
Unscrew 2 screws to remove the 2nd Arm Side
Covers.
4.
Pull the 2nd Axis Cover to the side and slide to
remove it from the T1 Monitor Arm.
