8-8-25 Replacement of the Unity Top Fan Assy
This table includes information specific to these instructions. For more information 8-2-6 "Tools needed
for servicing the LOGIQ Totus" on page 8-5 /8-2-7 "PPE Required During Service" on page 8-6
8-8-25-1 Preparations
1.) Remove the T2 Side Cover R Assy as described in 8-8-8 "Replacement of the T2 Side Cover R
Assy" on page 8-136
2.) Remove the Top cover Assy-T as described in 8-8-17 "Replacement of the Top Cover Assy-T" on
page 8-145
8-8-25-2 Removal Procedure
Table 8-87 Manpower, Time, Tools, and PPE
Manpower Time Tools PPE
One person Approximately 10 minutes Phillips Screwdriver
Cut resistant gloves
Knee Pad

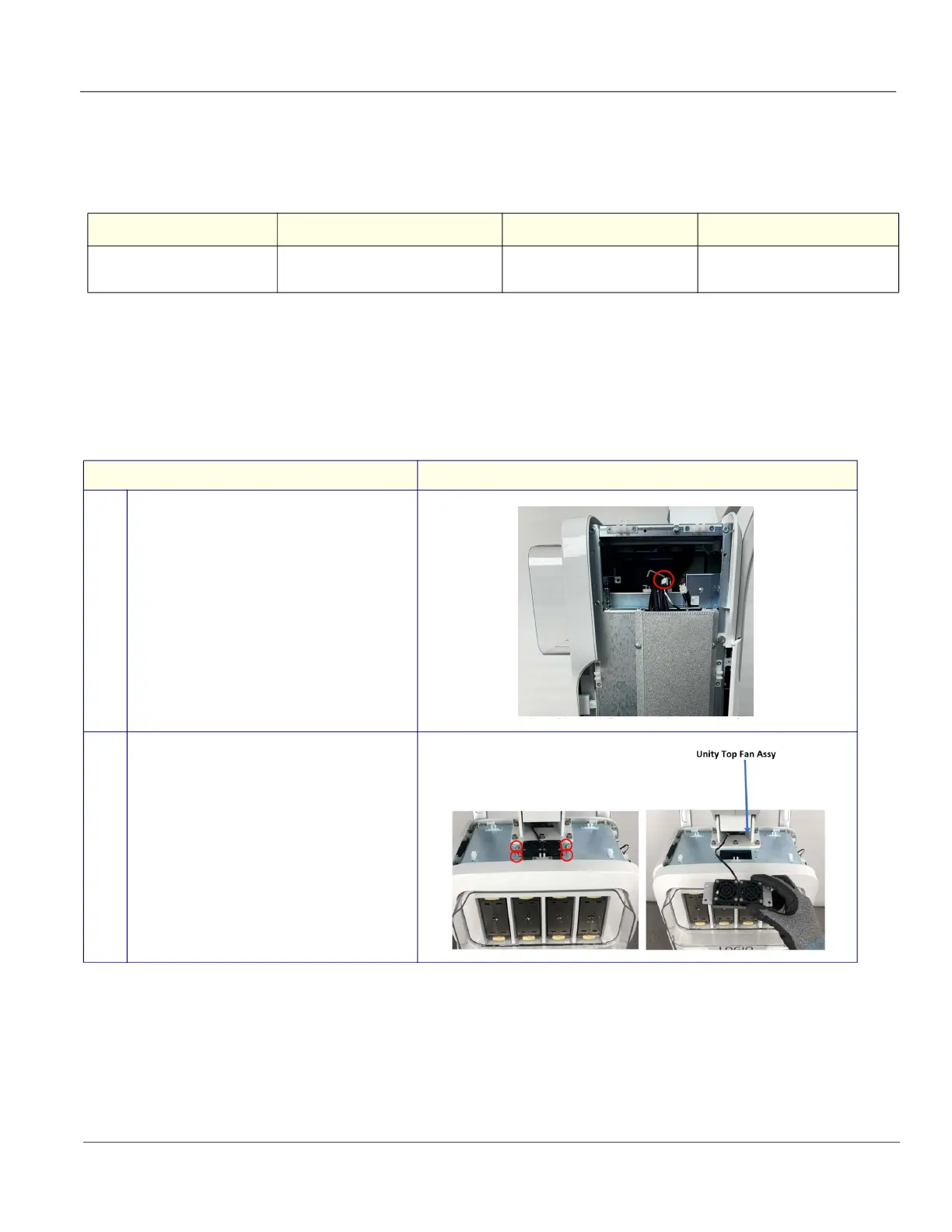

Step Corresponding graphic
1.
Unclamp the cables and disconnect the Fan
Cable from the console.
2.
Unscrew 4 screws to remove the Unity Top
Fan Assy from the console.
To Next Page
