GE HealthCare CONFIDENTIAL
Direction
5936427
, Rev. 1
LOGIQ Totus
Basic Service Manual
9 - 8

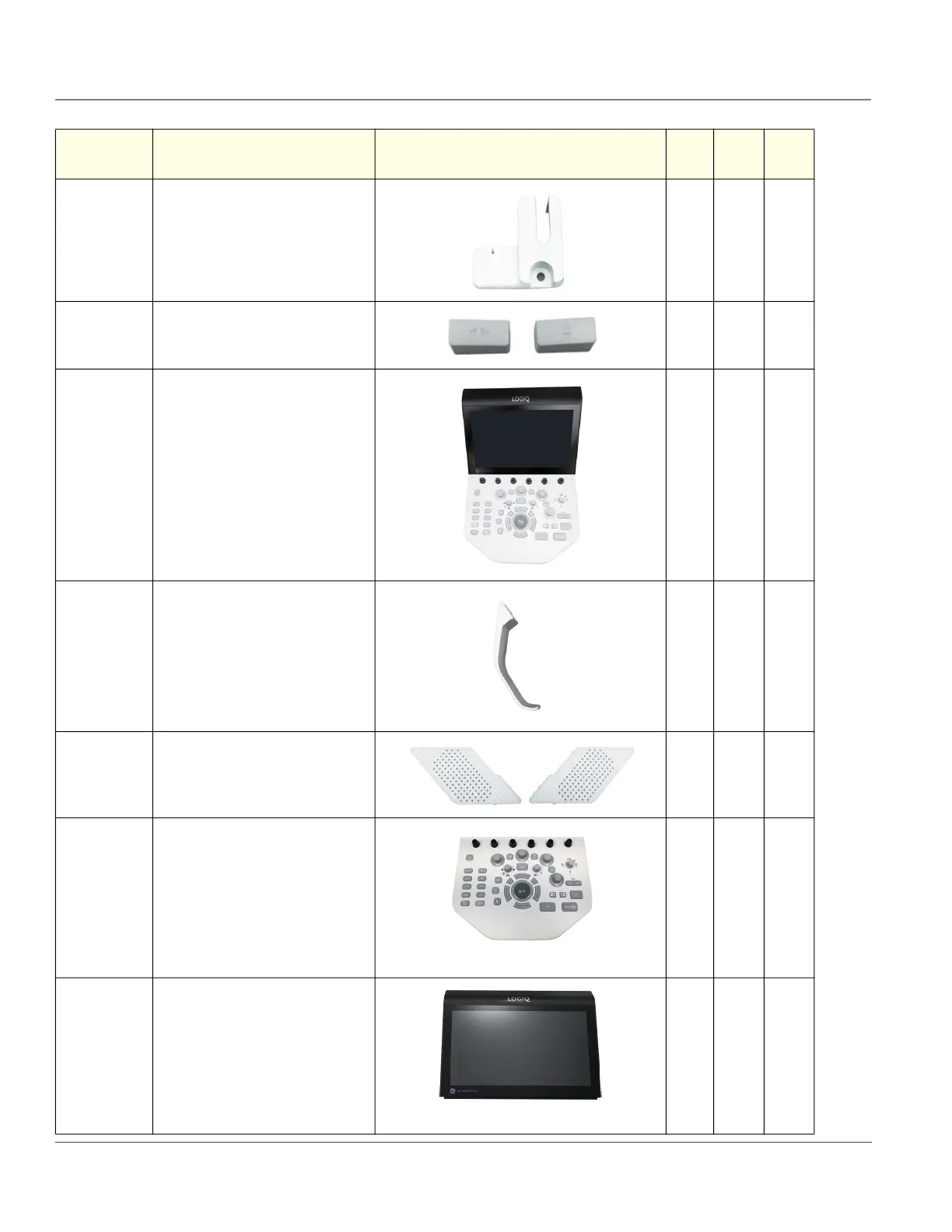

Section 9-6 - OPIO
5918944
Unity Gel Warmer Cable Cover
1
N
Y
S5942990
OPIO Swivel Updown Button Set-T
1
N
Y
5896536
UOPIO-T Assy
1
N
Y
5929873
T2 OPIO Cable Hook
1
N
Y
S5942996
Speaker Grill Set-T
1
N
Y
5931360
T2 OPIO Lower Assy
1
N
Y
5931359
T2 OPIO Upper Assy
1
N
Y
T
able 9-5
OPIO
PART
NUMBER
PART NAME
ILLUSTRATION / PHOTO
QTY
CRU
FRU
577
579
