Direction 5936427, Rev. 1 LOGIQ Totus Basic Service Manual

9 - 12 Section 9-7 - Main Console

Section 9-7

Main Console

QTY is the number used on the LOGIQ Totus (and not the amount for the part number).

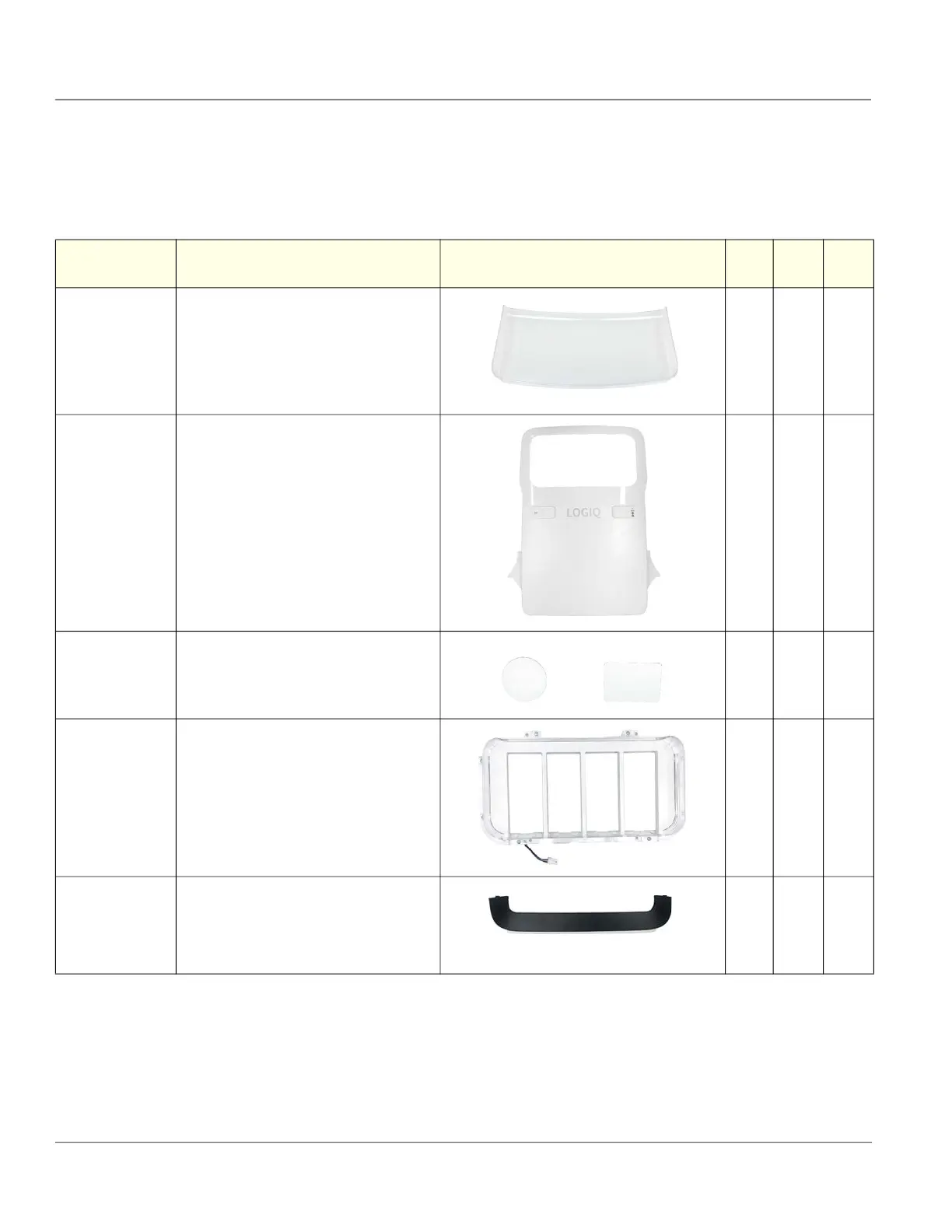

Table 9-6 Main Console

PART

NUMBER

PART NAME ILLUSTRATION / PHOTO QTY CRU FRU

5918938

Unity Base Tray

1 Y Y

S5942974

Front Cover Assy-T

1 Y Y

S5942978

Front Dummy Cover Set - T

1 Y Y

5926064

Unity Protector Assy

1 N Y

S5942981

Front Cover Bottom Assy-T

1 Y Y
