GE VOLUSON
i / VOLUSON
e
D
IRECTION KTI106052, REVISION 10 SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-77
8-20-17 Replacement of the Top Column Front Cover
8-20-17-1 Manpower
One person, 20 minutes
8-20-17-2 Tools
Phillips screwdriver 1
8-20-17-3 Preparations
1.) Power Off/Shutdown the system as described in Section 3-6-3 on page 3-72.
2.) Remove the optional Additional Shelf Peripherals as described in Section 8-20-6 on page 8-65.
3.) Remove the optional Cover BW Printer Shelf as described in Section 8-20-7 on page 8-66.
4.) Remove the optional Console Bottom Shelf as described in Section 8-20-8 on page 8-67.
5.) Remove the Top Shelf Additional Bottom Cover as described in Section 8-20-12 on page 8-72 or
remove the optional Probe Mux Bos as described in Section 8-20-9 on page 8-68.
6.) Remove the Power Supply Cover as described in Section 8-20-11 on page 8-71.
7.) Remove the Top Shelf Bottom Rear Cover as described in Section 8-20-13 on page 8-73.
8.) Remove the Top Column Back Cover as descibed in Section 8-20-14 on page 8-74.
9.) Remove the Bottom Column Back Cover as described in Section 8-20-15 on page 8-75.
8-20-17-4 Top Column Front Cover - Removal Procedure
1.) Screw off the 4 screws and carefully remove it.

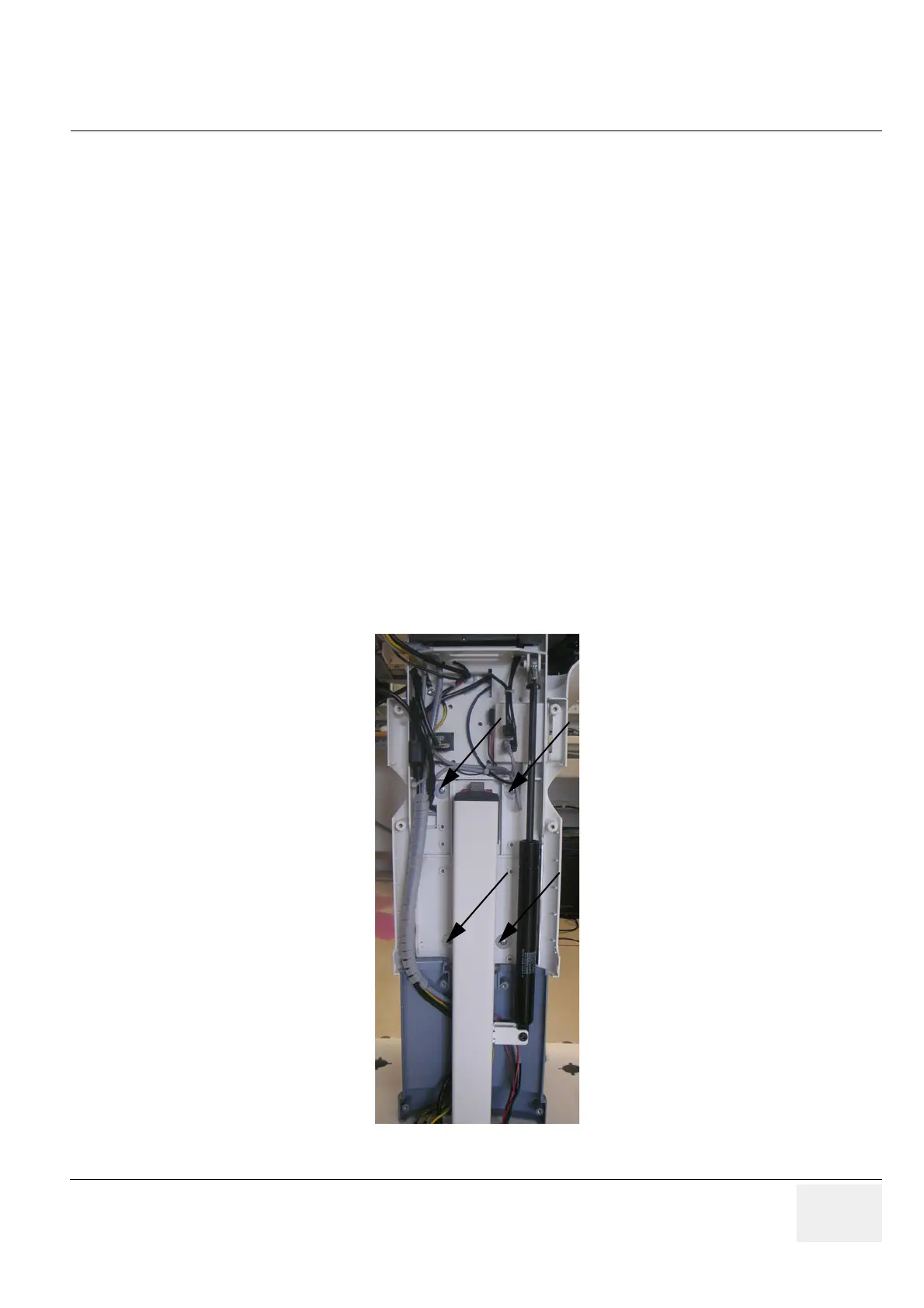

Figure 8-99 unscrew the 4 screws
