Front suspension - Front shock absorber and helical spring
90
Front absorber and helical spring
Overhaul
Hint: the following overhaul procedures only aim at left side (FL), and the overhaul procedures
of another side (RL) are the same as FL.

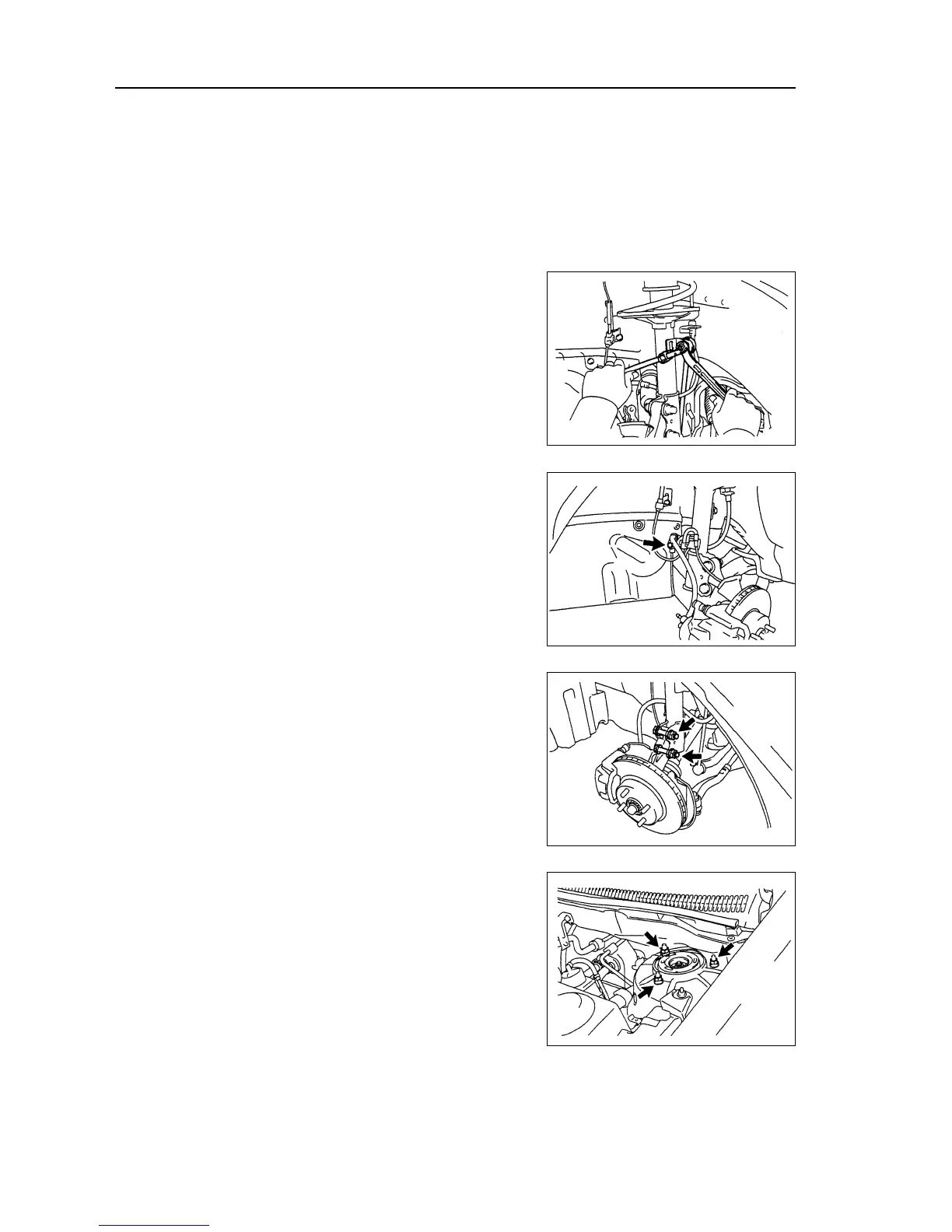

1. Remove front wheels.
2. Separate front left stabilizer link assembly
[64000097].
Remove nuts, and disassemble stabilizer link from absorber.
Hint: if ball joint rotates with nuts, please fix bolts with
hexagonal wrench (6mm).
3. Remove front absorber and helical spring.
(a) Remove bolts, and disassemble brake hose and ABS speed
sensor wire harness bracket.
(b) Remove 2 nuts and bolts under absorber.
(c) Remove 3 nuts above absorber.
(d) Remove absorber and helical spring.
To Next Page
