Engine mechanism
Engine assembly
Inspection
1. Check coolant.
2. Check engine oil.
3. Check battery.
4. Check air filter assembly.
5. Check spark plug [4G18-3705113].
6. Check drive belt [4G18-1307107].
Hint: do not check belt tension, because automatic tensioner is applied.

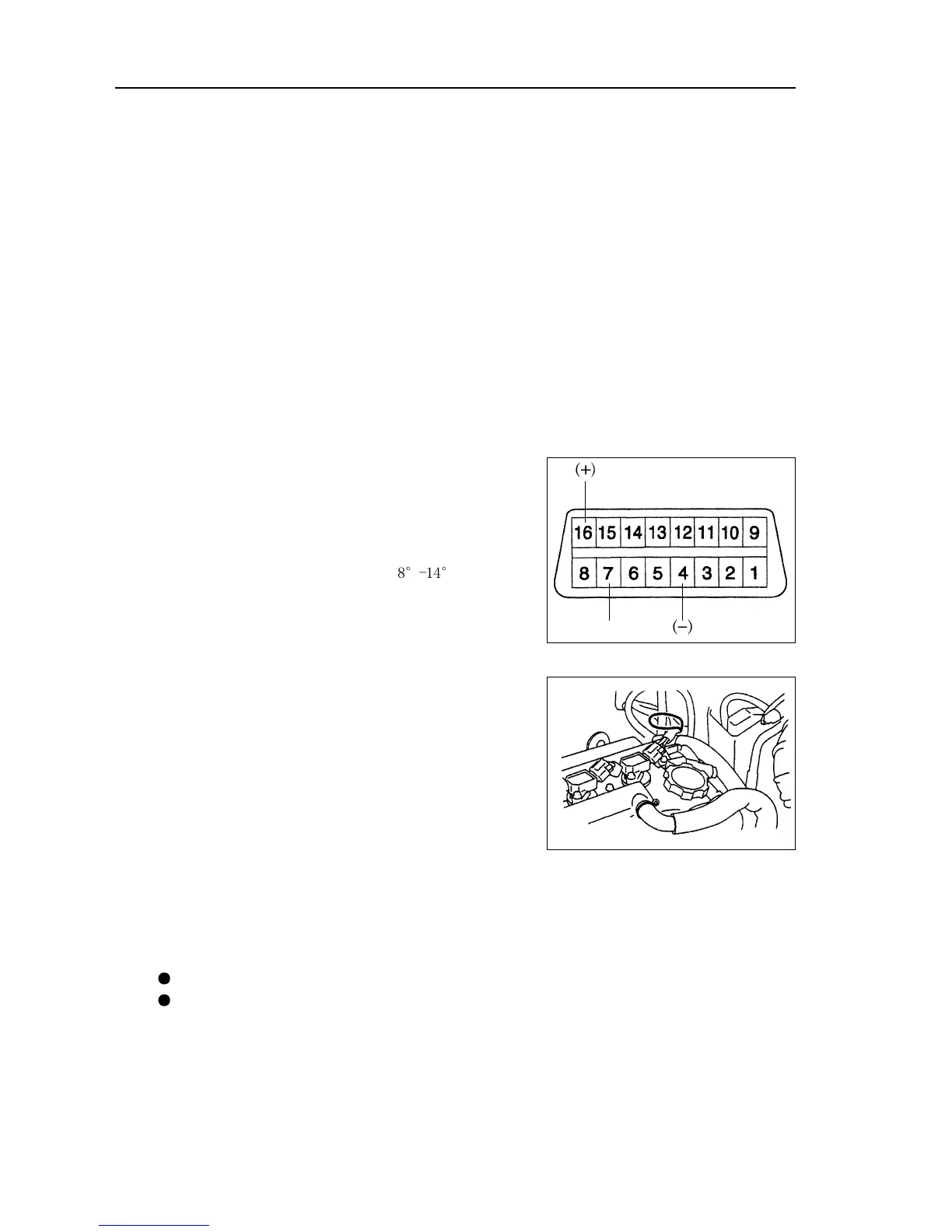

7. Check ignition timing.
(a) Warm up engine.
(b) Connect timing lamp to engine.
(c) Check ignition timing at idle speed.
Ignition timing: before top dead center
Note: when checking ignition timing, place
transmission at neutral position.
Hint: After run the engine for 5 seconds with rotating
speed of 1000-1300rpm, check the engine could
recover to idle running.
8. Check engine idle speed.
(a) Warm up engine and run it at idle speed.
(b) Read engine rotating number in data flow with diagnostic instrument.
(c) Check idle speed.
Idle speed: about 750-850rpm
Notes:
When checking idle speed, place cooling fan at OFF position.
Turn off all auxiliary devices and air conditioner.
Engine mechanism - Engine assembly
K-line
26
