Engine cover/automobile door--Trunk cover
Trunk cover
Adjustment

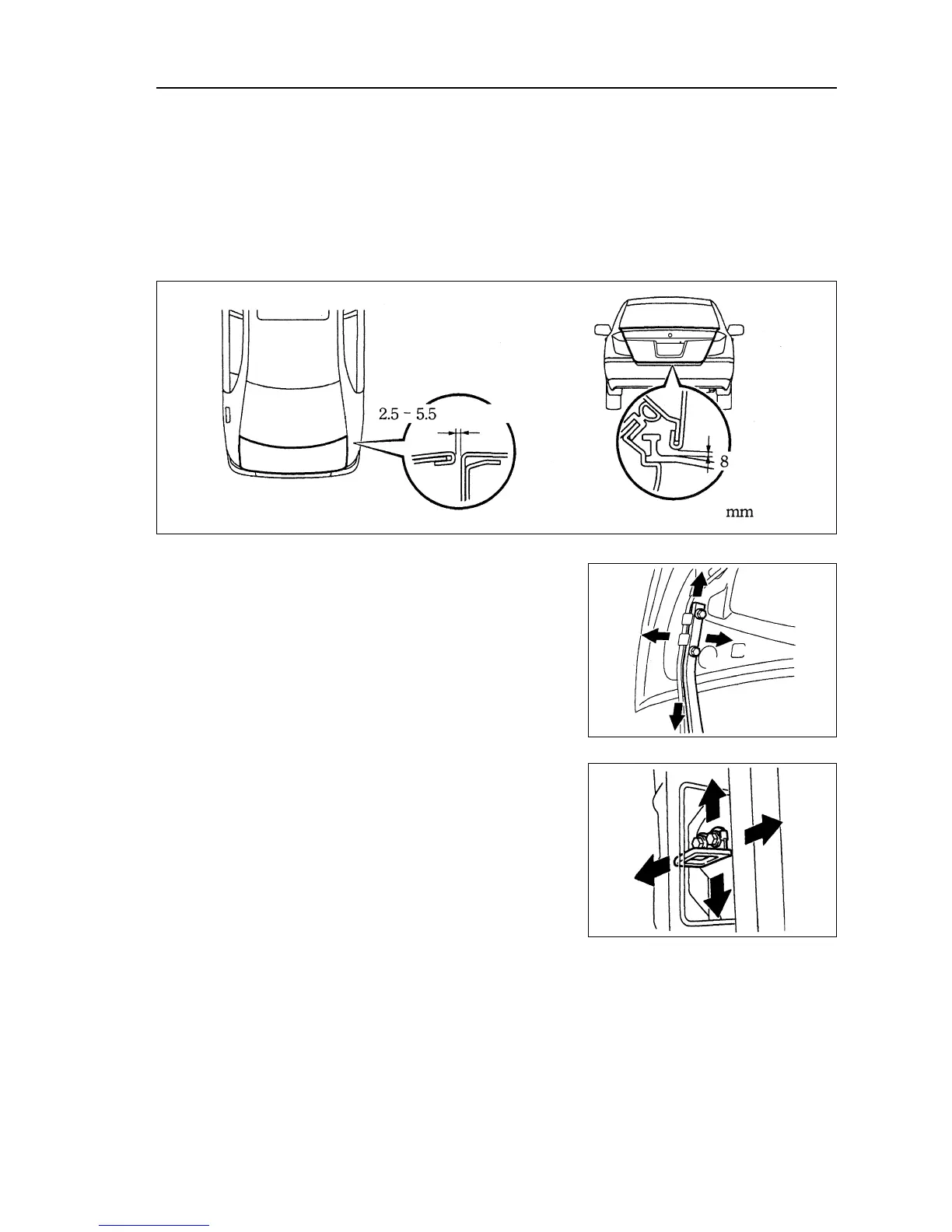

1. Check the clearance of trunk cover.
(a) Check whether following data is in standard value.
2. Adjust the clearance of trunk cover.
(a) If you want to make front and rear, left and right adjustment,
please loosen the bolt at first.
(b) If the front end of trunk cover needs to adjust vertically, please
increase or decrease the number of washers between hinge
and trunk cover.
Torque: 7.0 N
⋅⋅
⋅⋅
⋅m
(c) Use the hammer and copper stick to knock lightly the locker
pedestal to adjust.
Torque: 5.5 N
⋅⋅
⋅⋅
⋅m
377
