Engine cover/automobile door--Front automobile door
Adjustment
Hint: the working procedure for right side is same as left side.

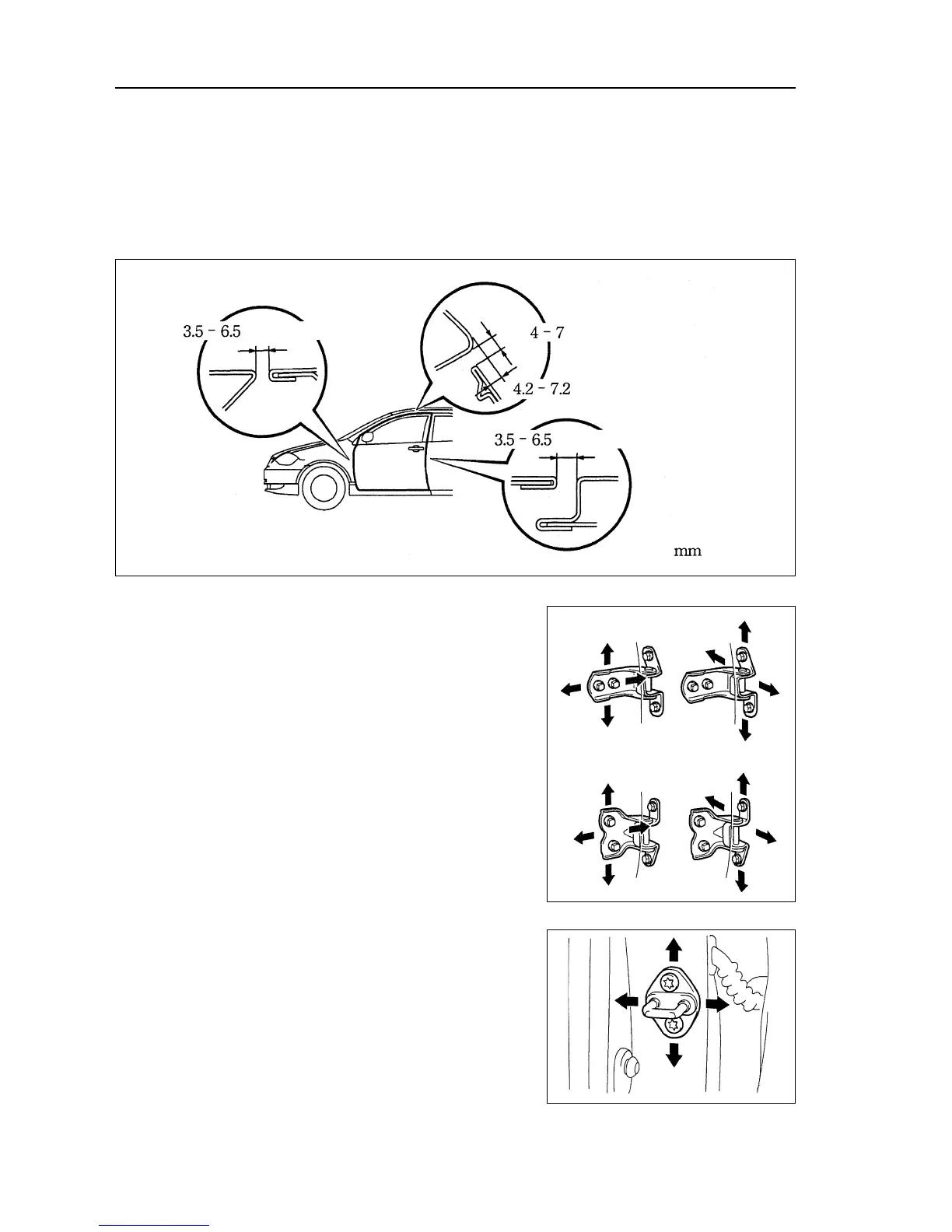

1. Check the clearance of left front door
(a) Check whether following data is in standard value.
2. Adjust the clearance of left front door.
(a) Use special tool to loosen hinge bolt at the side of automo-
bile body to adjust the door.
Torque: 26 N
⋅⋅
⋅⋅
⋅m
(b) Loosen hinge bolt at the side of automobile body to adjust
the door.
Torque: 26 N
⋅⋅
⋅⋅
⋅m
(c) Loosen lightly fixing screw of locking pedestal and use plas-
tic hammer to knock lightly locking pedestal to adjust its
position.
(d) Lock fixing screw of locking pedestal again.
Torque: 23 N
⋅⋅
⋅⋅
⋅m
At the side of
automobile body
At the side of
automobile door
372
At the side of
automobile door
At the side of
automobile body
