Starting and charging - Starting system
Starting and charging
Starting system
Inspection
1. Starter installation components
Note: this test must be finished within 3 to 5 seconds to
avoid burning out coil.

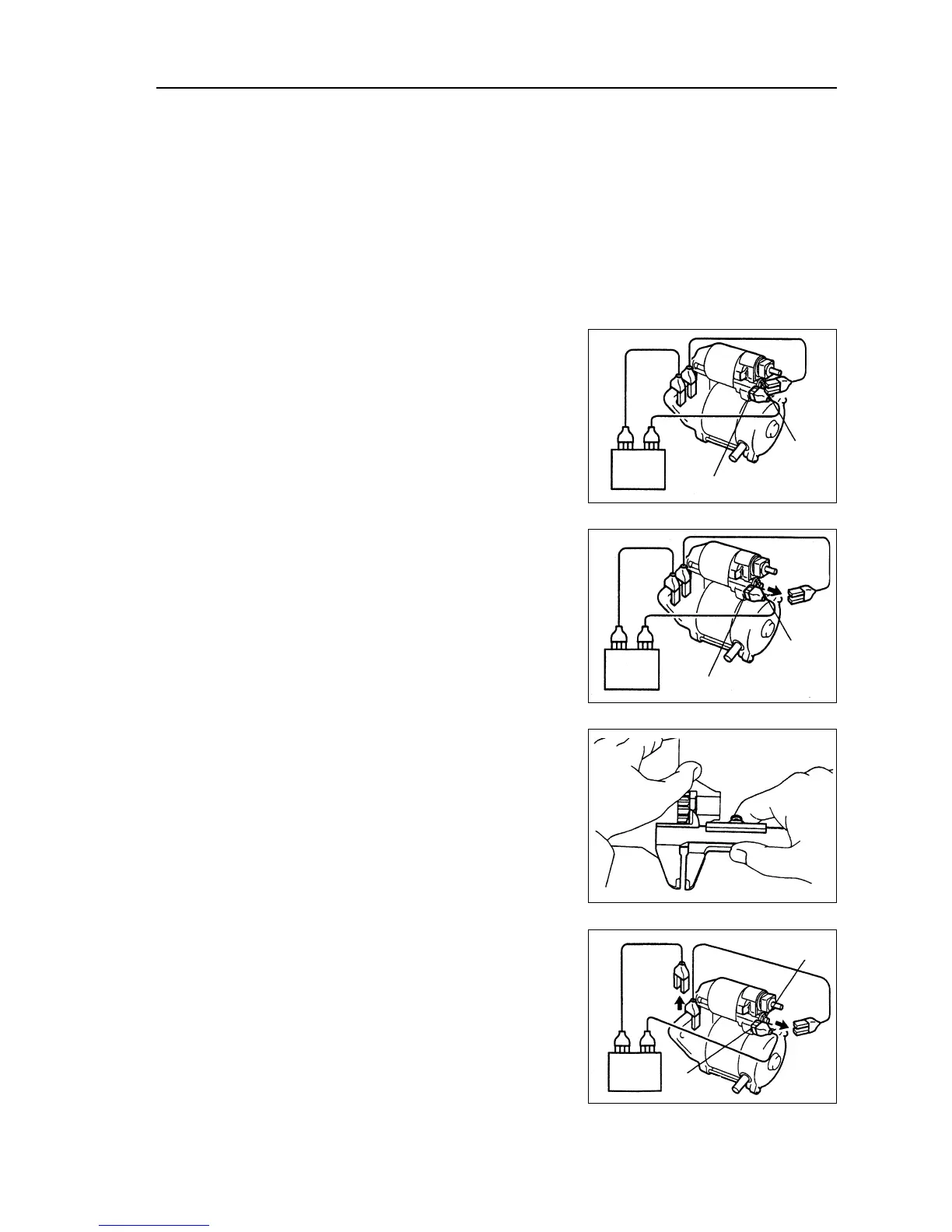

(a) Remove nut at C terminal to uncouple wire of field coil.
(b) As shown in the diagram, connect battery wire to electro-
magnetic switch, and check drive pinion is pushed outside,
(pull-in coil and hold-in coil).
(c) As shown in the diagram, uncouple negative wire from ter-
minal C after the above connections, and check drive pin-
ion is still at the state of being pushed outside.(Hold-in coil)
(d) Push drive pinion toward armature side, and measure the
clearance between drive pinion end and stop ring.
Standard clearance: 1.0~5.0mm
(e)Uncouple negative wire from electromagnetic switch
housing, and check drive pinion returns back to original
position toward inside.
79
