Inner trim board of top
Change
Hint:
z When assembling, please work by the sequence which is opposite with disassembling
sequence; if necessary, it will have assembling instruction.
z Changing procedure for right side is same as the left side.

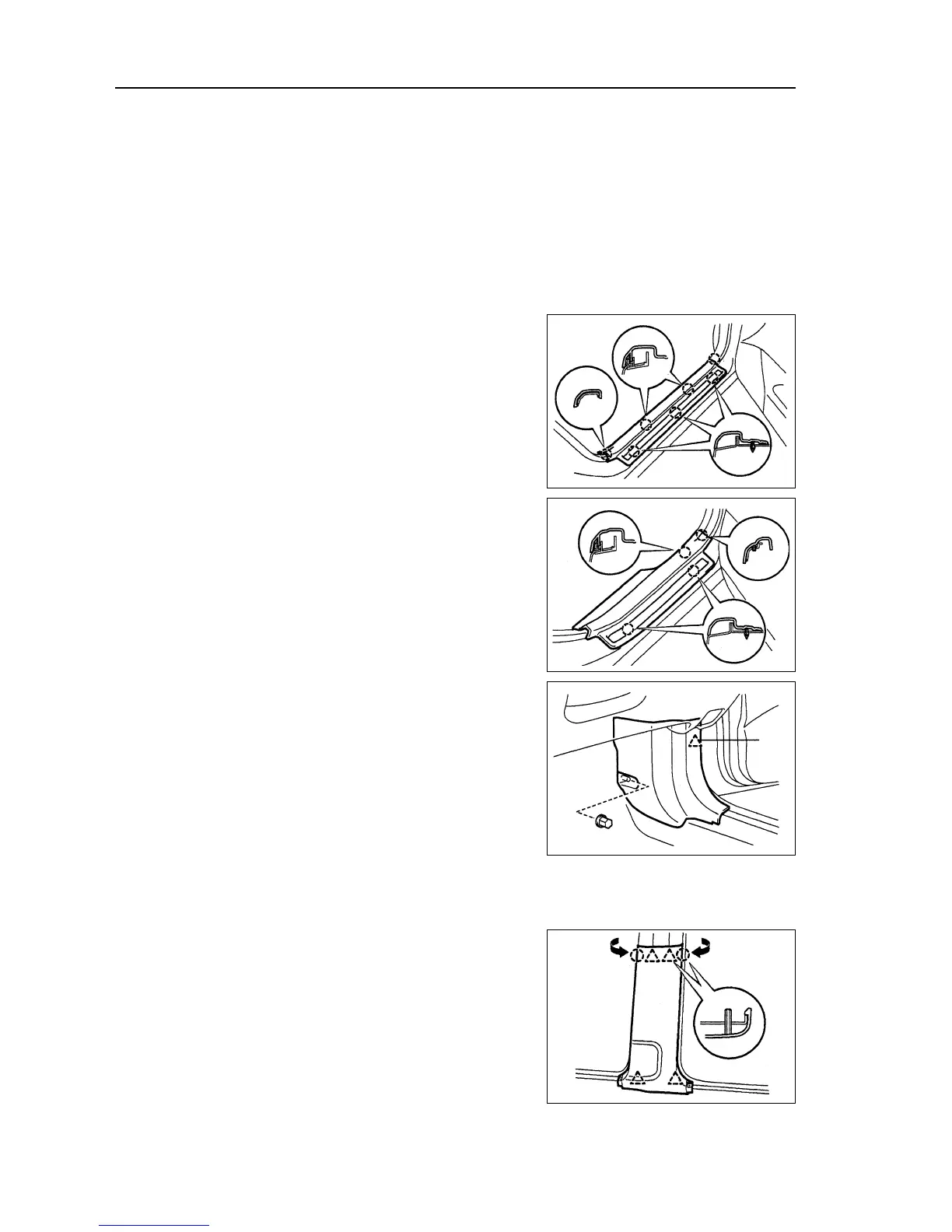

1. Disassemble trim board of right front door pedal [68010021]
Fixing
clamp
Exterior/inner trim board--Inner trim board of top
390
(a) Use screw driver to disassemble trim board of right front
door pedal.
Hint: before using screw driver, its needled top should
be twisted by adhesive tape.
(b) Use same method to disassemble the trim board at the
other side.
2. Disassemble stop trim board of left front door
[68010020]
3. Disassemble stop trim board of right rear door
[68010024]
(a) Use screw driver to disassemble trim board of right rear door
pedal.
Hint: before using screw driver, its needled top should
be twisted by adhesive tape.
(b) Use same method to disassemble the trim board at the
other side.
4. Disassemble trim board of left rear door pedal
[68010022]
5. Disassemble lower inner trim board at the front of
right fender [68010016]
(a) Disassemble fixing clamp.
(b) Use screw driver to disassemble right trim board.
Hint: before using screw driver, its needled top should
be twisted by adhesive tape.
(C) Use same method to disassemble the trim board at the
other side.
6. Disassemble lower inner trim board at the front of
left fender [68010015]
7. Disassemble inner fender assembly of right front door [68010050]
8. Disassemble inner fender assembly of left front door [68010049]
9. Disassemble inner trim board assembly of right rear
door [68010058]
10. Disassemble inner trim board assembly of left rear
door [68010057]
11.Disassemble lower inner trim board assemblyco
(a) Pull out lower inner trim board assembly of right stand pole
to disassemble it.
(b) Use same method to disassemble the trim board at the
other side.
12. Disassemble lower inner trim board assembly of
