Exterior/inner trim board--Inner trim board of top
left pillar [68010018]

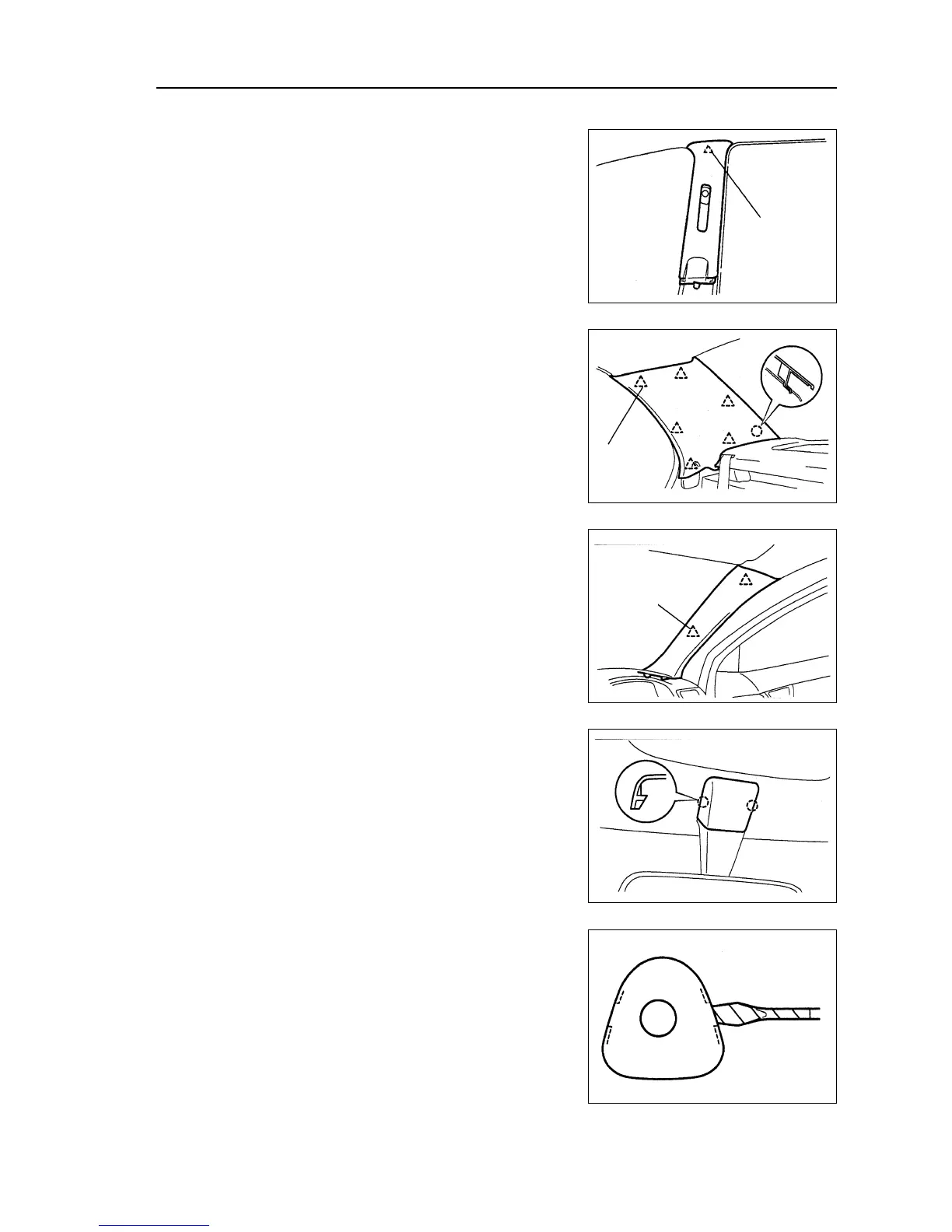

13. Disassemble upper inner trim board assembly of
right pillar [68010025]
(a) Disassemble the bolt and upper fixing bolt trim cover of front
safety belt.
(b) Use screw driver to disassemble upper inner trim board of
right stand pole.
Hint: before using screw driver, its needled top should
be twisted by adhesive tape.
(C) Use same method to disassemble the trim board at the
other side.
14. Disassemble upper inner trim board assembly of
left pillar [68010023]
15. Disassemble rear row chair cushion (referring to
page 352).
16. Disassemble rear row chair backrest (fixing type)
(referring to page 354).
17. Disassemble rear row chair right backrest assem-
bly (referring to page 352).
18. Disassemble rear row chair left backrest assembly
(referring to page 352).
19. Disassemble inner trim board of right rear pillar
assembly [68010027]
(a) Use screw driver to disassemble inner trim board of right
rear pillar assembly.
Hint: before using screw driver, its needled top should
be twisted by adhesive tape.
(b) Use same method to disassemble the trim board at the
other side.
20. Disassemble inner trim board of left rear pillar as-
sembly [68010026]
21. Disassemble inner trim board of right front pillar
assembly [68010017]
(a) Use screw driver to disassemble inner trim board of right
front pillar assembly.
Hint: before using screw driver, its needled top should
be twisted by adhesive tape.
(b) Use same method to disassemble the trim board at the
other side.
22. Disassemble inner trim board of left front pillar as-
sembly [68010014]
23. Disassemble inner rear view mirror assembly [67010013]
(a) Use screw driver to disassemble trim cover of inner rearview
mirror pedestal.
Hint: before using screw driver, its needled top should
be twisted by adhesive tape.
(b) Disassemble two screws and inner rearview mirror assembly.
Fixing
clamp
Fixing
clamp
Fixing
clamp
391
