Air conditioner--Air conditioner central heating core assembly

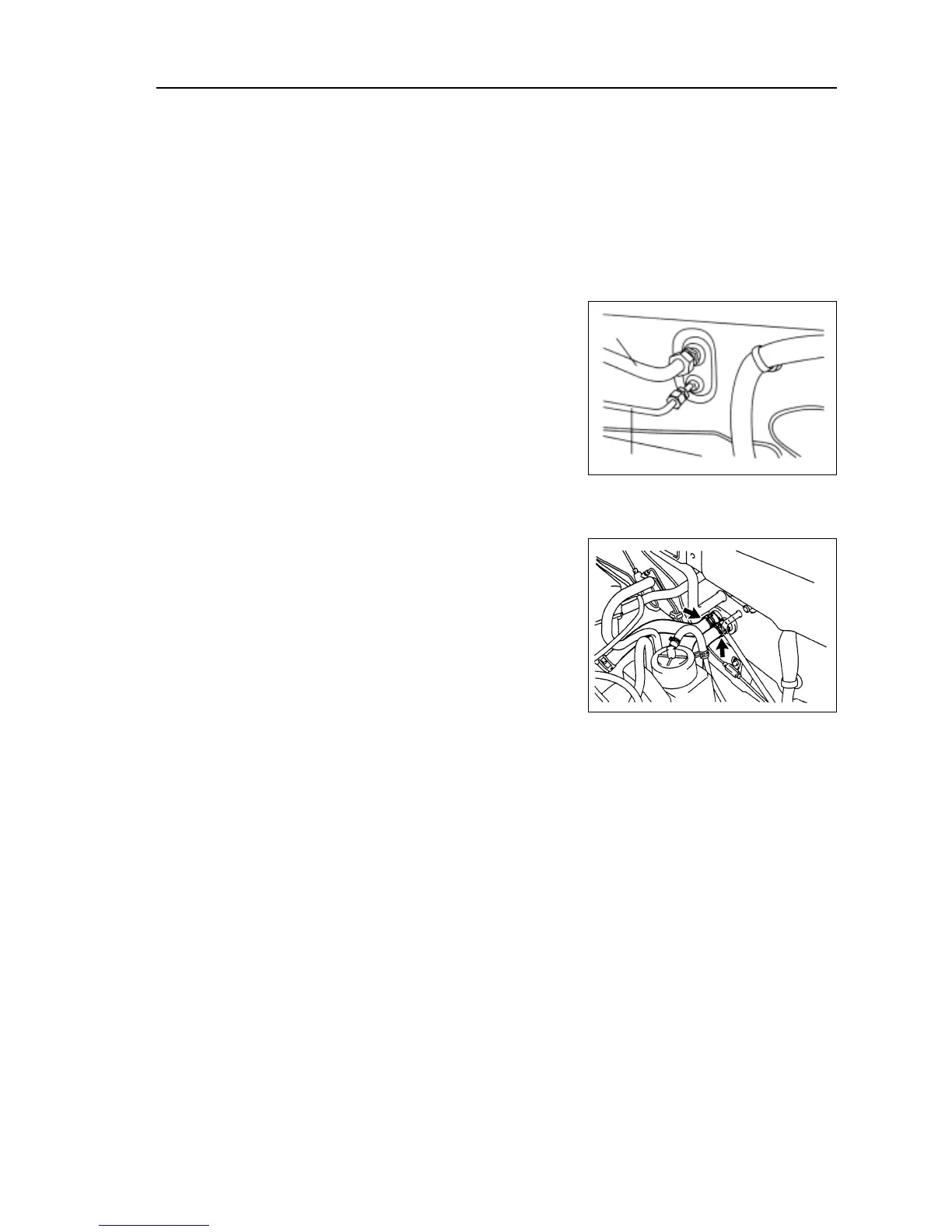

3. Disconnect refrigerant No.1 low pressure hose.
Note:
after disassembling the pipeline, it is necessary to cover
the joint to prevent humidity or dust from entering in
system.
4. Disconnect refrigerant liquid pipe A.
Hint: disconnect liquid pipe A with the method being
same as No.1.
5. Disconnect water outlet hose of heating.
(a) Slide out fixed clamp and disassemble water outlet hose
of heating.
6. Disconnect water intake hose of heating.
Slide out fixed clamp and disassemble water intake hose of
heating.
7. Disassemble cathode wire of battery.
8. Make front wheels face the front.
9. Disassemble safety airbag assembly at the side of
driver.
10. Disassemble steering wheel.
11. Disassemble combination instrument cover
[68000077].
12. Disassemble combination instrument assembly
[68000081].
13. Disassemble ventilation orifice assembly at the left
side of panel [68010010].
14. Disassemble ventilation orifice assembly at the right
side of panel [68010011].
Air conditioner central heating core assembly
Overhaul
1. Disassemble radiator cover.
2. Reclaim HFC-134a(R134a)
227
low pressure
hose
liquid pipe A
To Next Page
