Windshield/bodywork glass/wing mirror--Rear ventilation window
Rear ventilation window
Change
Clues on: Please assemble by the sequence opposite with disassembling sequence. Assemble
directions could be got when necessary.
1. Disassemble the step trim board of left rear door [68010022] (referring to page 390)
2. Disassemble the step trim board of right rear door [68010024] (referring to page 390)
3. Disassemble left rear door frame sealed tape [68010059]
4. Disassemble right rear door frame sealed tape [68010060]
5. Disassemble rear seat cushion
6. Disassemble rear seat back assembly (fixed) [68010076] (referring to page 354)
7. Disassemble rear seat right back assembly (fixed) [68010079] (referring to page 352)
8. Disassemble rear seat left side back assembly (separate) [68010078](referring to page
352)
9. Disassemble left rear pillar interior trim board assembly [68010026] (referring to page
390)
10. Disassemble right rear pillar interior trim board assembly [68010027] (referring to page
390)
11. Disassemble high brake light assembly [68010008]
12. Disassemble rear platform front-below trim board [68010034]
13. Disassemble rear wind window sealed trim tape [68000104]

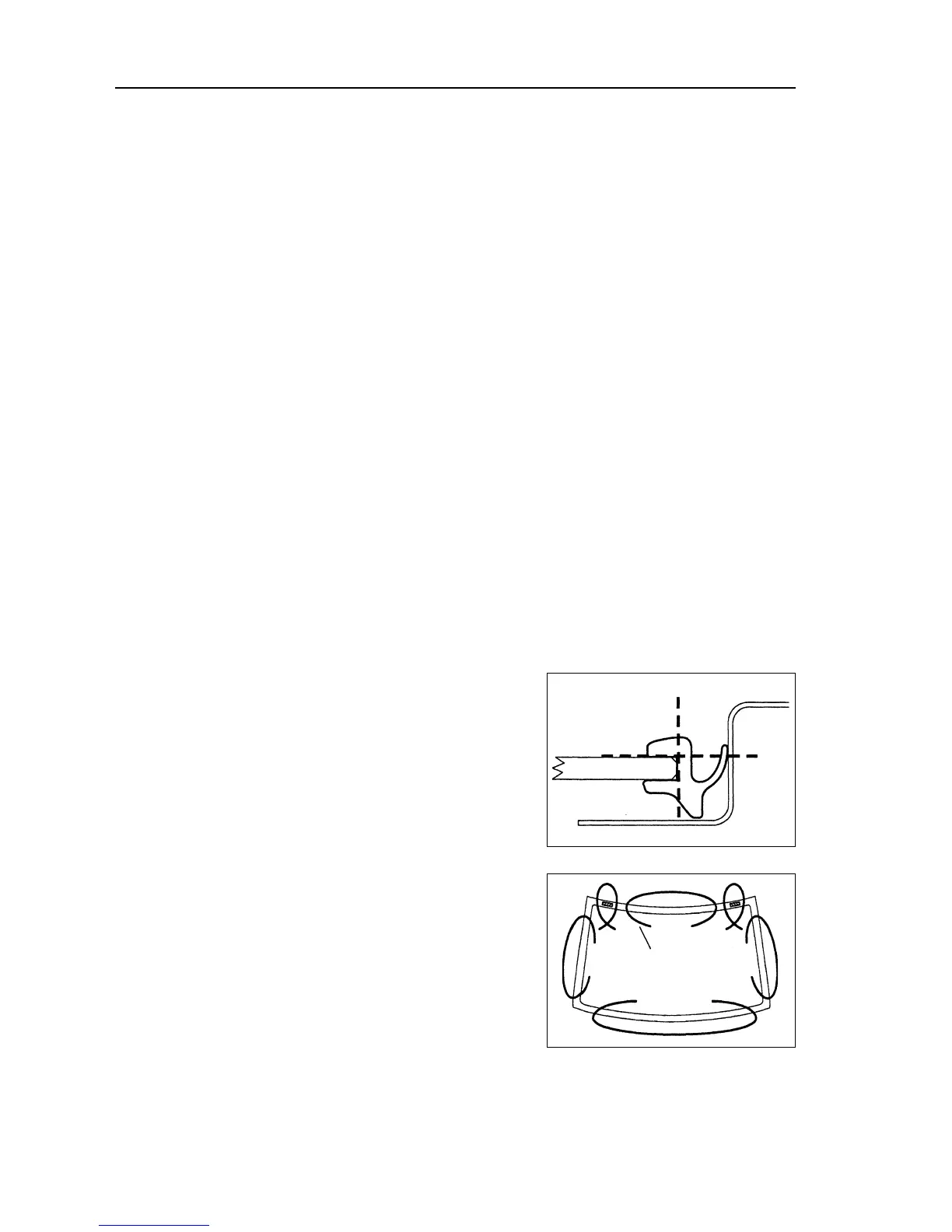

(a) Use blade to cut the trim tape as the drawing.
steel wire
î 324 î
Notes: Do not damage the bodywork by blade.
(b) Disassemble rudimental trim tape.
14. Disassemble rear ventilation window assembly
[68000103]
(a) Use a steel wire to drill through windows and bodywork.
(b) Tie something like wood block at both the end of steel wire.
Clues on: Stick adhesive tape on the bodywork at work
to prevent paintwork from scraping.
Notes: When separate window, do not damage
paintwork and interior and exterior trim board.
(c) Pull steel wire along front windscreen around, removal
agglutinant.
(d) Disassemble front windscreen.
Note: When cut front windscreen down, leave aggluti-
nant as much as possible on the bodywork.
15. Clean rear ventilation window assembly [68000103]
Use white gasoline to clean rear ventilation window around.
16. Assemble windscreen orientation plastic button
[68000064]
Assemble two orientation block on the rear windscreen as the
