Parking rear brake pull cable assembly
Change
Hint: the changing procedure for left rear brake pull cable is same as parking right rear brake
pull cable.
1. Disassemble rear wheels.
2. Disassemble rear brake disk brake branch pump bracket assembly(LH).
3. Disassemble brake disk.
4. Disassemble support lever of parking brake shoe (LH).
5. Disassemble adjustor of parking brake shoe.
6. Disassemble parking brake inner shoe assembly (LH).
7. Disassemble parking brake exterior shoe assembly (LH).
8. Disassemble parking brake shoe lever (LH).
9. Disassemble left rear brake pull cable assembly.
Disassemble the bolt and parking left rear brake pull cable assembly from brake back board.
10. Disassemble front bottom board bracket.
11. Disassemble front part exhaust pipe.
12. Disassemble heat insulation board.
13. Disassemble parking left rear brake pull cable assembly.
Parking brake--Parking rear brake pull cable assembly

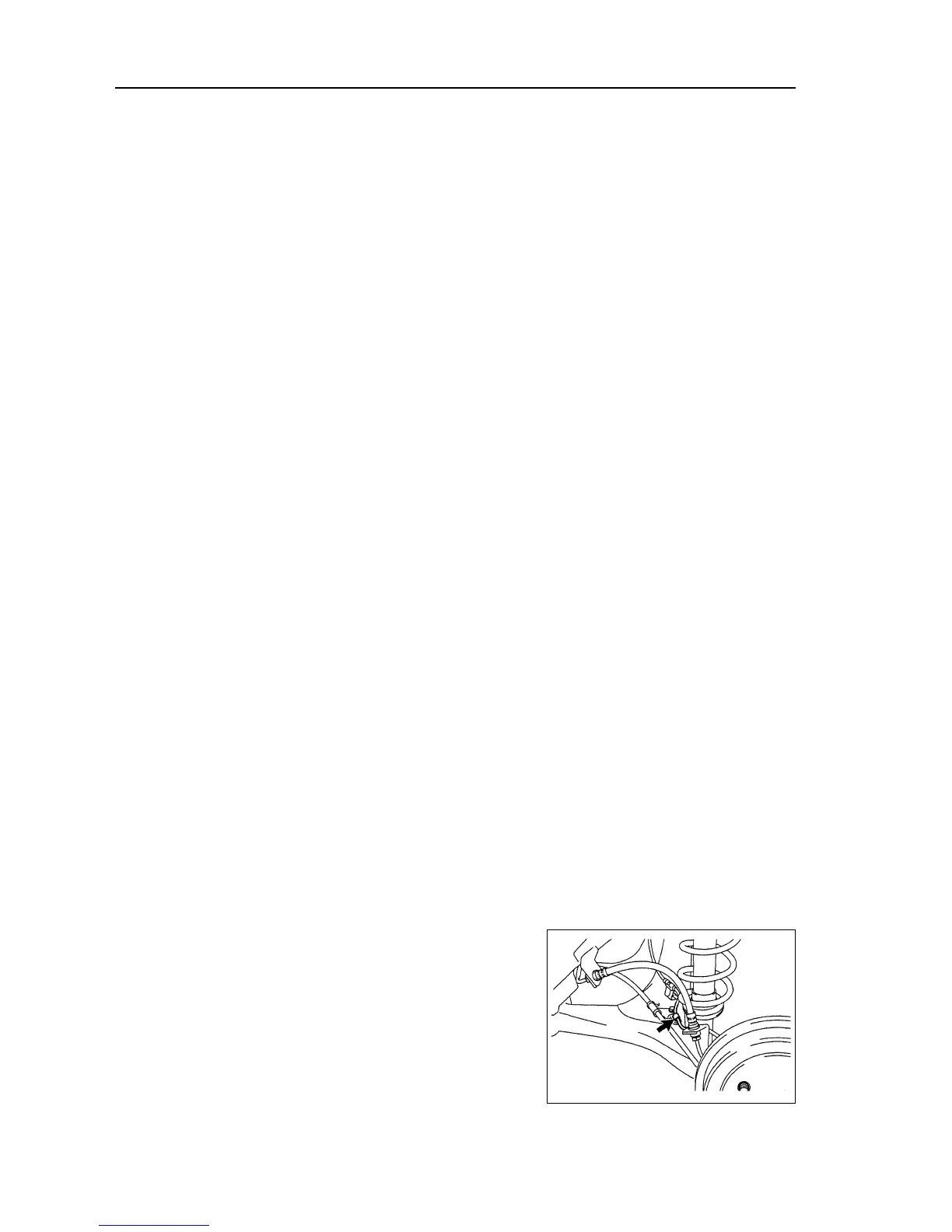

(a) Disassemble fixing clamp of rear wheel speed sensor wiring
harness.
(b) Disassemble four bolts and parking left rear brake pull cable
from automobile.
(c) Disassemble left rear brake pull cable from parking brake
balancer, then disassemble parking left rear brake pull cable.
14. Assemble parking left rear brake pull cable
assembly.
(a) Connect parking left rear brake pull cable on parking brake
pull cable balancer.
(b) Assemble parking left rear brake pull cable with four bolts.
Torque: 5.4 N
⋅⋅
⋅⋅
⋅m
(c) Connect resinous clamp of speed sensor wiring harness of
158
