Windshield/bodywork glass/wing mirror--Electric window control system
Right front door electric
window generator
Electric window
switch
Right front door electric
window lift
Electric window
switch
Right rear door electric
windows lift
Right rear door electric
window generator
Left rear door electric
window generator
Left rear door electric
window lift
Electric window
switch
Left front door electric
window generator
Electric window
main switch
Left front door electric
window lift
Windshield/window glass/wing mirror
Electric window control system

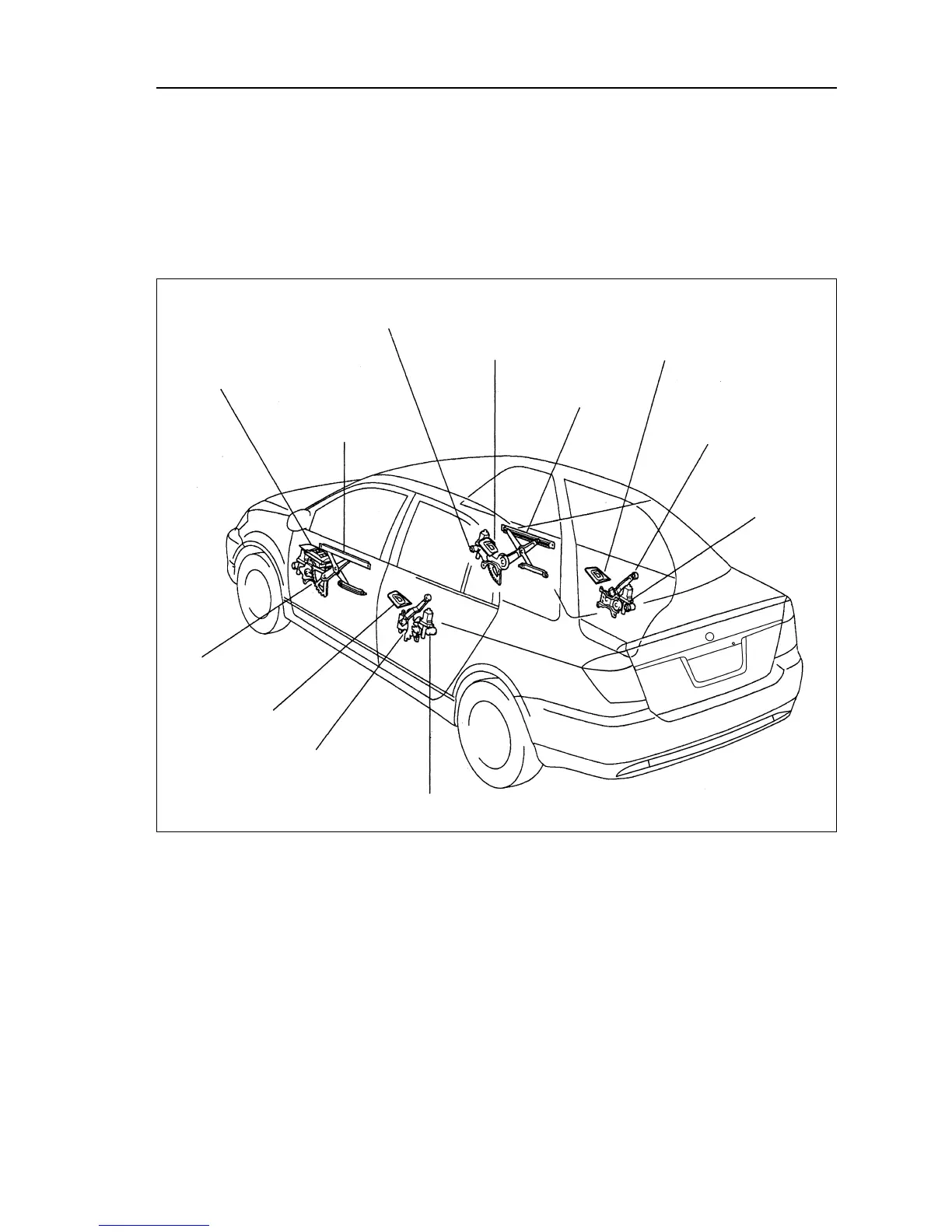

Position drawing (For reference only)
Inspect the car
1. Inspect electric window
(a) Inspect basic function (manual operation function)
(1) Turn the ignition switch to ON
(2) Inspect the window whether it descends when you press electric window switch. Pull the switch up
and inspect whether it ascends.
(3) Inspect the window whether it descends when you press electric window switch of every door. Pull
the switch up and inspect whether it ascends.
