Parking brake handle assembly
Change
1. Disassemble trim board on central box.
2. Disassemble parking brake hole cover.
3. Disassemble central box.
4. Disassemble parking brake handle assembly.

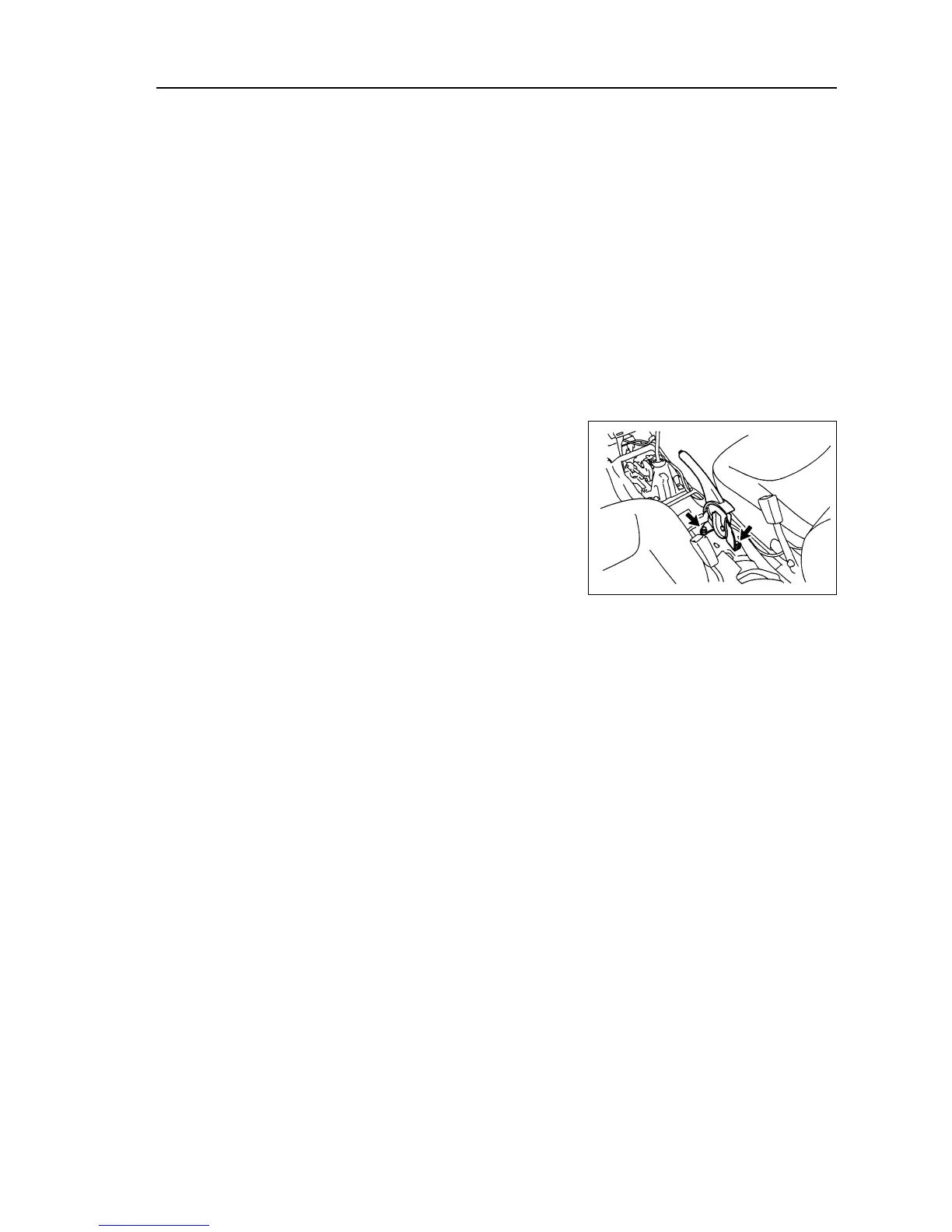

(a) Disassemble locking screw cap and adjusting screw cap.
(b) Disassemble the joint of parking brake switch.
(c) Disassemble two bolts and parking brake handle.
5. Disassemble parking brake switch assembly.
Disassemble the screw and parking brake switch.
6. Assemble parking brake switch assembly.
Assemble parking brake switch assembly with screw.
7. Assemble parking brake pull cable.
(a) Connect parking brake pull cable to handle and assemble adjusting screw cap and locking screw cap.
(b) Assemble parking brake handle with two bolts.
Torque: 13 N
⋅⋅
⋅⋅
⋅m
(c) Connect the joint of parking brake switch.
8. Check the travel of parking brake handle (referring to page 154).
9. Adjust the travel of parking brake handle (referring to page 154).
Parking brake--Parking brake handle assembly
155
