Electric sunroof (optional)--Sunroof
Bolt
Screw cap
Electric sunroof (optional)
Sunroof
Overhaul
Hint: when assembling, please work by the sequence which is opposite with disassembling
sequence; but when it has items that need to pay special attention, it will add special specification.
1. Disassemble inner trim board of top (referring to page 390).
2. Disassemble the glass of sunroof.
(a) Use planetary wrench to disassemble planetary screw.
(b) Pull the glass upwards to disassemble it.
3. Disassemble waterproof adhesive tape of sunroof.
4. Disconnect connection of wiring harness.
5. Disassemble shell body of sunroof.
(a) Disassemble four drain hoses.

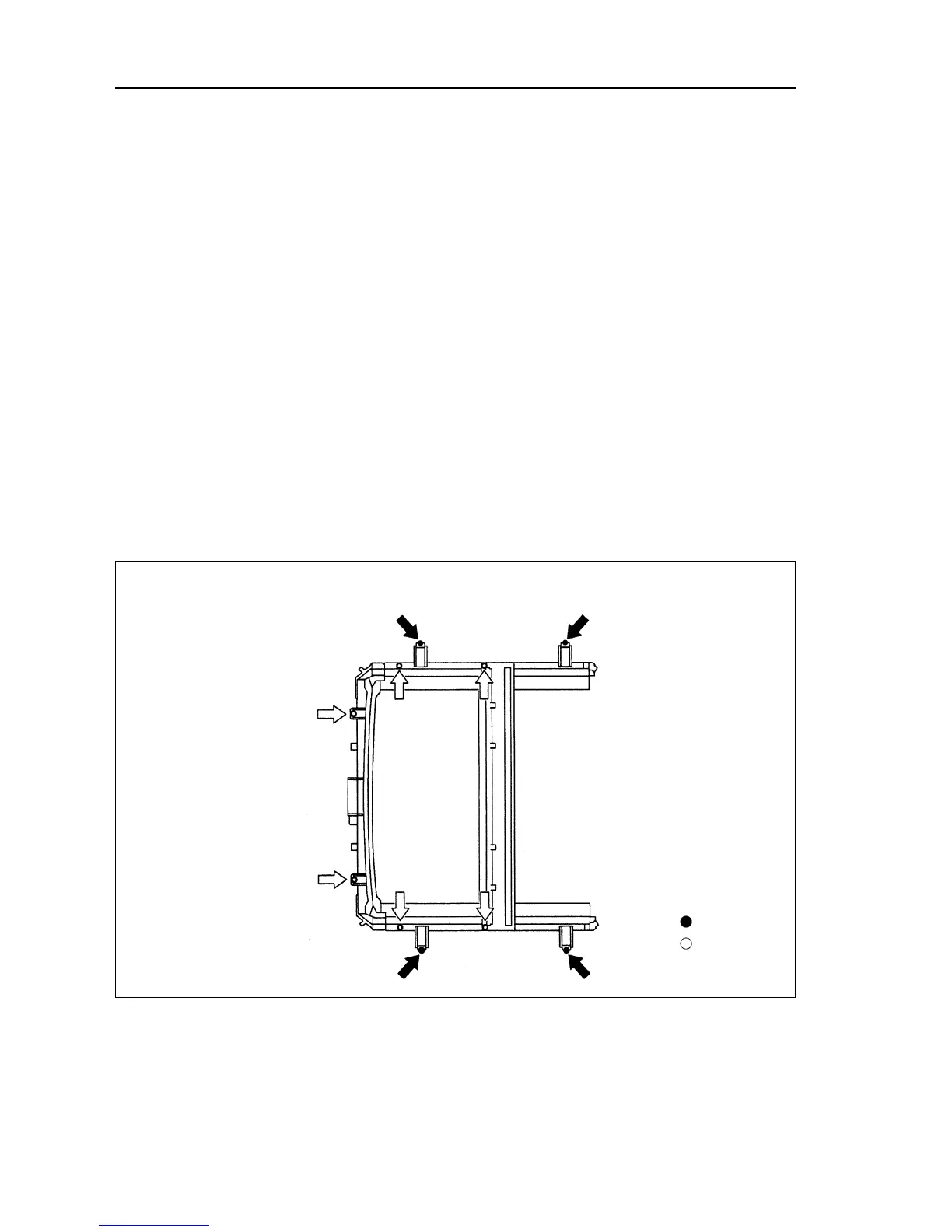

(b) Liking that shown in figure, disassemble four bolts and six screw caps, then disassemble shell body.
6. Disassemble trim sun shade of sunroof.
(a) Disassemble the screw and stopper.
(b) Disassemble trim sun shade of sunroof.
