Light--Number plate light
Number plate light
Change
1.
Disassemble key aperture of trunk cover and bracket
2.
Disassemble number plate light of trunk cover
3.
Disassemble number plate light assemble [68000097]
(a)
Disassemble the joints.
(
b
)

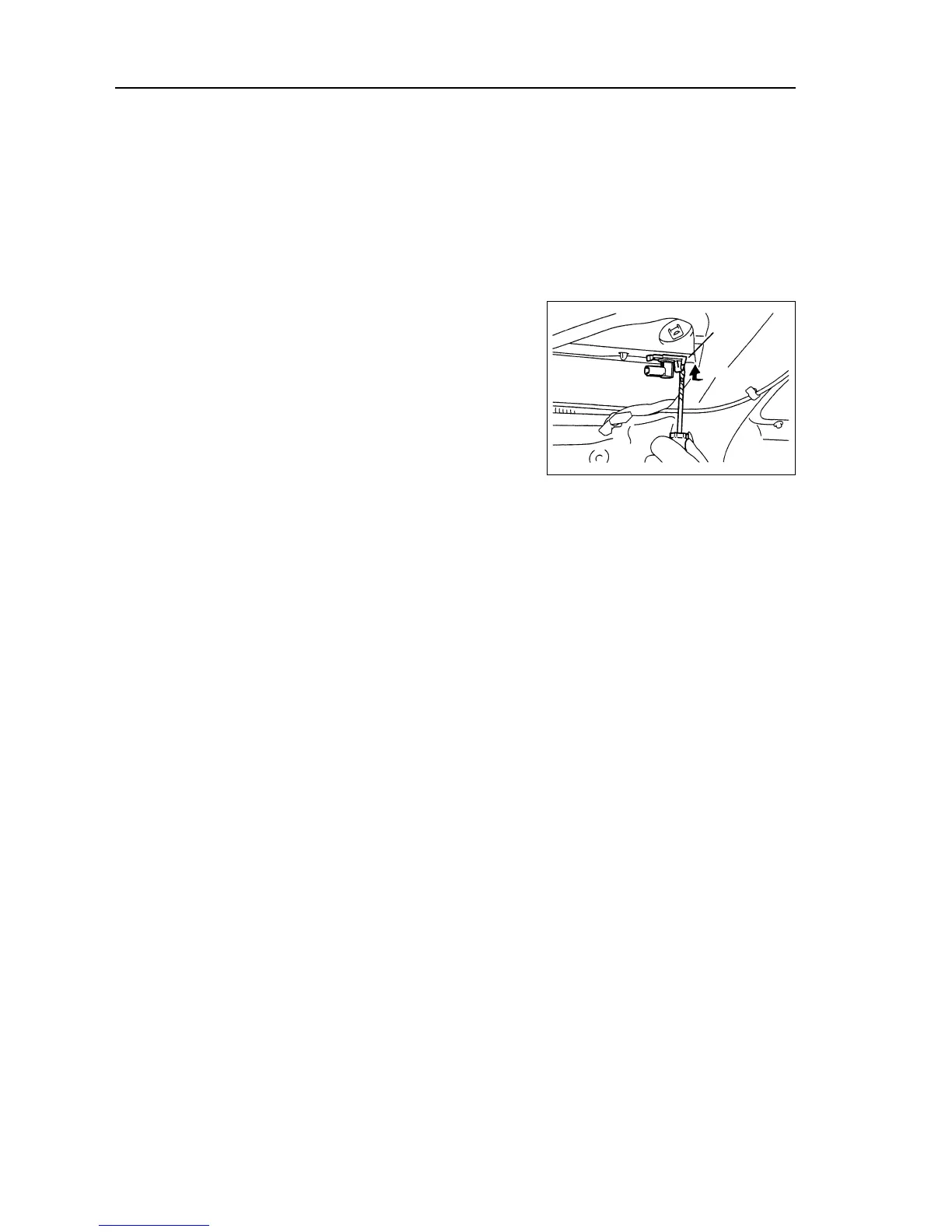

Disassemble number plate light using vice screw driver.
Clues on: Before using vice screw driver, its cusp
should enwind adhesive tape.
(c)
Disassemble the bulb.
296
Fixing
claw
306
308
