Drive shaft--Left front shaft hub bolt
Left front shaft hub bolt
Change
Hint: changing procedure for right side is same as left
side.
1. Disassemble front wheels
2. Disassemble left front brake branch pump assembly
3. Disassemble left front brake assembly [64000134]

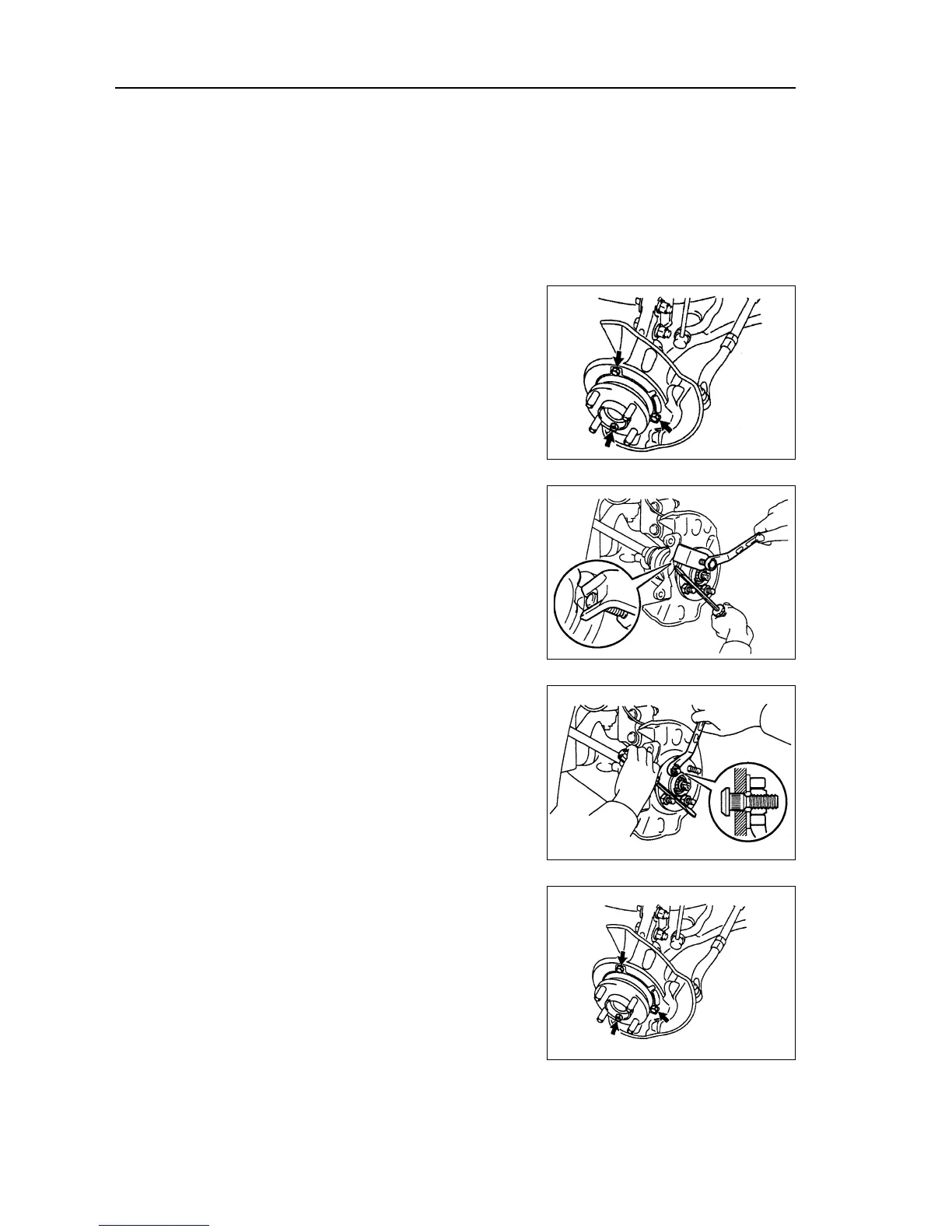

4. Disassemble left front brake bottom board.
Disassemble three bolts, then disassemble the bottom board
from steering knuckle.
5. Disassemble left front shaft hub bolt.
Use special tool and screw driver to disassemble shaft hub
bolt.
6. Assemble left front shaft hub bolt.
(a)Liking that shown in figure, assemble gasket and screw
cap on new shaft hub bolt.
(b) Use screw driver to fix and lock the screw cap to make the
bolt enter the hole.
7. Assemble left front brake bottom board.
Assemble three bolts, and assemble bottom board in steering
knuckle.
8. Assemble left front brake assembly.
9. Assemble left front brake branch pump assembly.
Torque: 106
±±
±±
± 10 N
⋅⋅
⋅⋅
⋅m
10. Assemble front wheels.
Torque: 103
±±
±±
± 10 N
⋅⋅
⋅⋅
⋅m
128
