Automobile control system--Ignition switch and anti-versa lock key warning switch
Phenomenon
Ignition switch could not insert on any
position
Possible malfunction part
1. Ignition switch
2. Circuit of power supply
Reference page
394
-
Automobile control system
Ignition switch and anti-versa lock key warning switch
Malfunction phenomenon table
Inspection

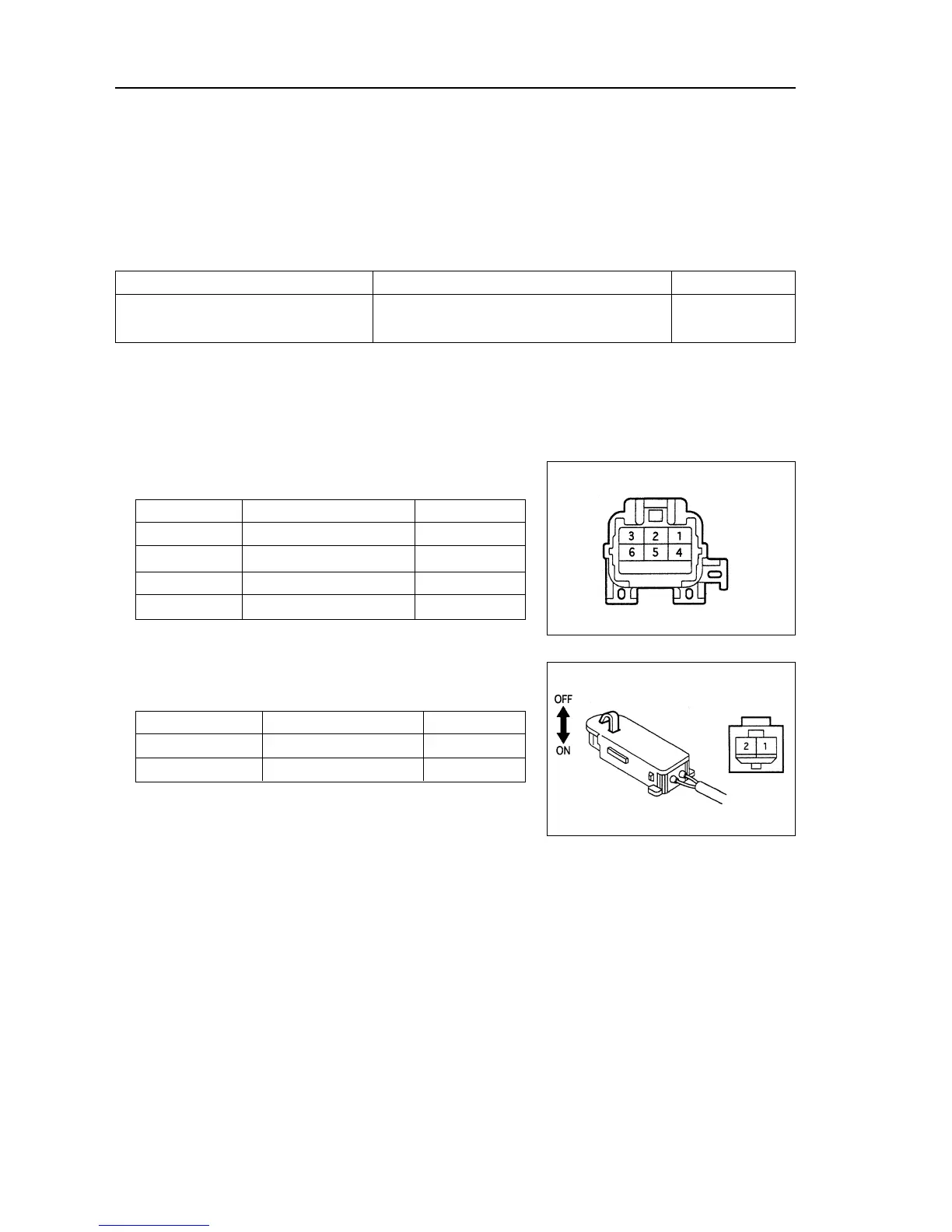

1. Check the ignition switch.
Check the conduction of ignition switch joint and terminal
If the conduction does not accord with the regulation, change
the switch.
2. Check the anti-versa lock key warning switch.
If the conduction does not accord with the regulation, change
the switch.
 394 
Position of switch Terminal connected by avometer Regulated situation
LOCK - Not conduction
ACC 1-3 Conduction
ON 1-2-3, 5-6 Conduction
START 1-2, 4-5-6 Conduction
Position of switch Terminal connected by avometer Regulated situation
OFF (key does not insert) - Not conduction
ON (key inserts) 1-2 Conduction
