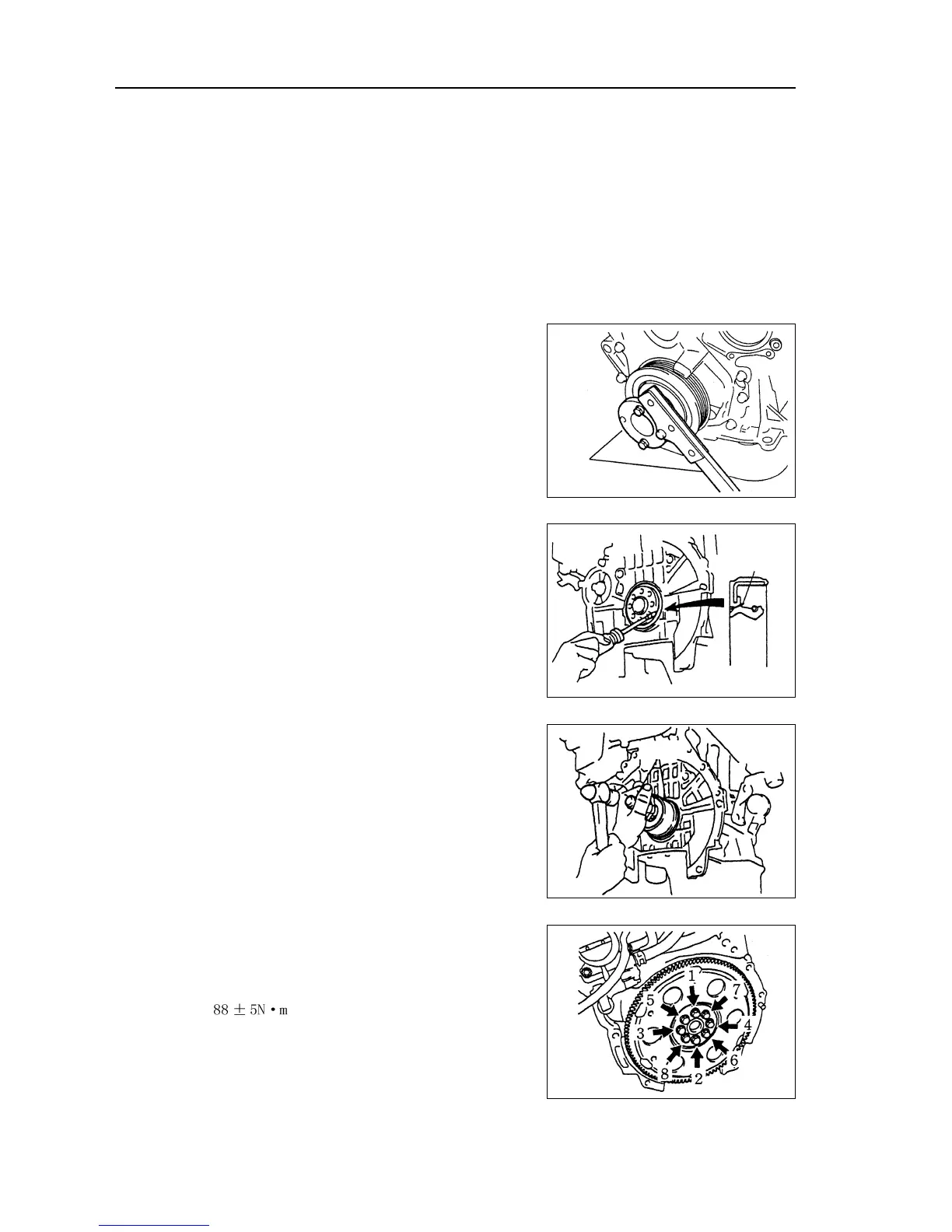

Engine mechanism - Crankshaft rear oil seal assembly
Replacement
1. Remove transmission assembly.
2. Remove clutch assembly and flywheel components.
Fix crankshaft with special tool, remove clutch assembly at
first, and then remove flywheel components.
3. Remove crankshaft rear oil seal.
(a) Cut oil seal mouth with blade.
(b) Prize out oil seal with flathead screwdriver whose sharp
end is winded with tape.
Note: check crankshaft is damaged after removing oil
seal, and repair with abrasive paper (#400) if it is
damaged.
4. Install crankshaft rear oil seal [4G18-1002130].
(a) Coat a little MP grease on new oil seal lip.
Note: do not let oil seal lip contact with foreign
matters.
(b) Gently knock new oil seal in with special tool and hammer
until the seal surface is parallel and level with the end sur-
face edge of mounting hole.
Note: wipe off redundant grease on crankshaft.
5. Install flywheel components and clutch assembly.
(a) Fix crankshaft with special tool.
(b) Clean bolts and bolt holes.
(c) Coat bolts with adhesive.
Adhesive: thread locking adhesive 1234 (Kesaixin 1234)
(d) Install flywheel components.
As sequences shown in the diagram, tighten bolts at sev-
eral times.
Torque:
(e) Install clutch assembly.
6. Install transmission assembly.
Special
tool
Cut
position
Special
tool
62
Crankshaft rear oil seal assembly
