Engine mechanism - Crankshaft front oil seal assembly

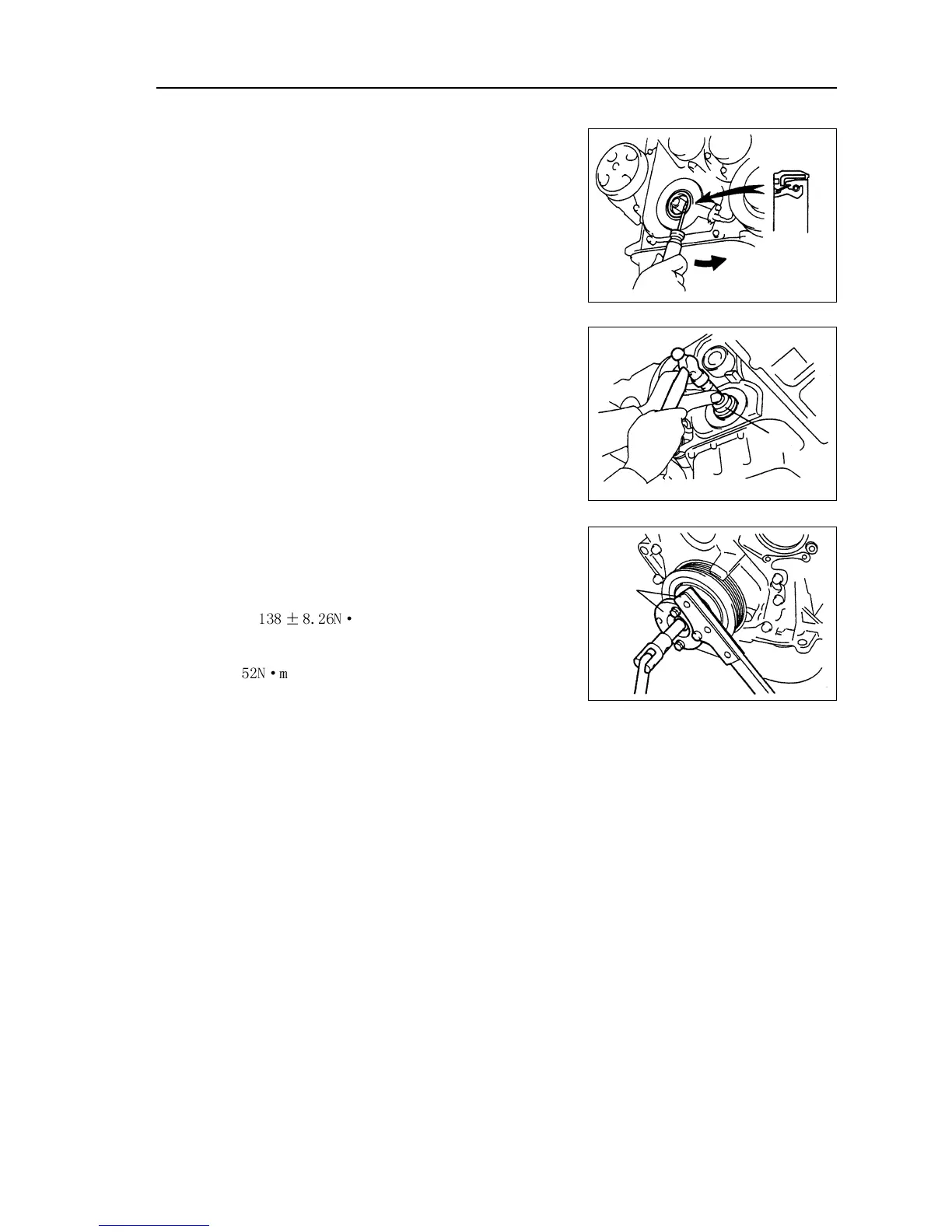

5. Remove crankshaft front oil seal.
(a) Cut oil seal lip with blade.
(b) Prize out oil seal with flat screwdriver whose sharp end is
winded with tape.
Note: check crankshaft is damaged after removing oil
seal, and repair with abrasive paper (#400) if it
is damaged.
6. Install crankshaft front oil seal.
(a) Coat a little MP grease on new oil seal lip.
Note: do not let oil seal lip contact with foreign
matters.
(b) Gently knock new oil seal in with special tool and hammer
until the seal surface is parallel and level with the end sur-
face edge of mounting hole.
Note: wipe off redundant grease on crankshaft.
7. Install damping pulley.
(a) Align the key groove on the pulley with the key on the
crankshaft, and slide pulley in.
(b) Install pulley bolts with special tool.
Torque: m
8. Install right engine mounting assembly.
Torque:
9. Check there is oil leakage.
Cut
position
Prizing out
Special
tool
61
Special
tool
