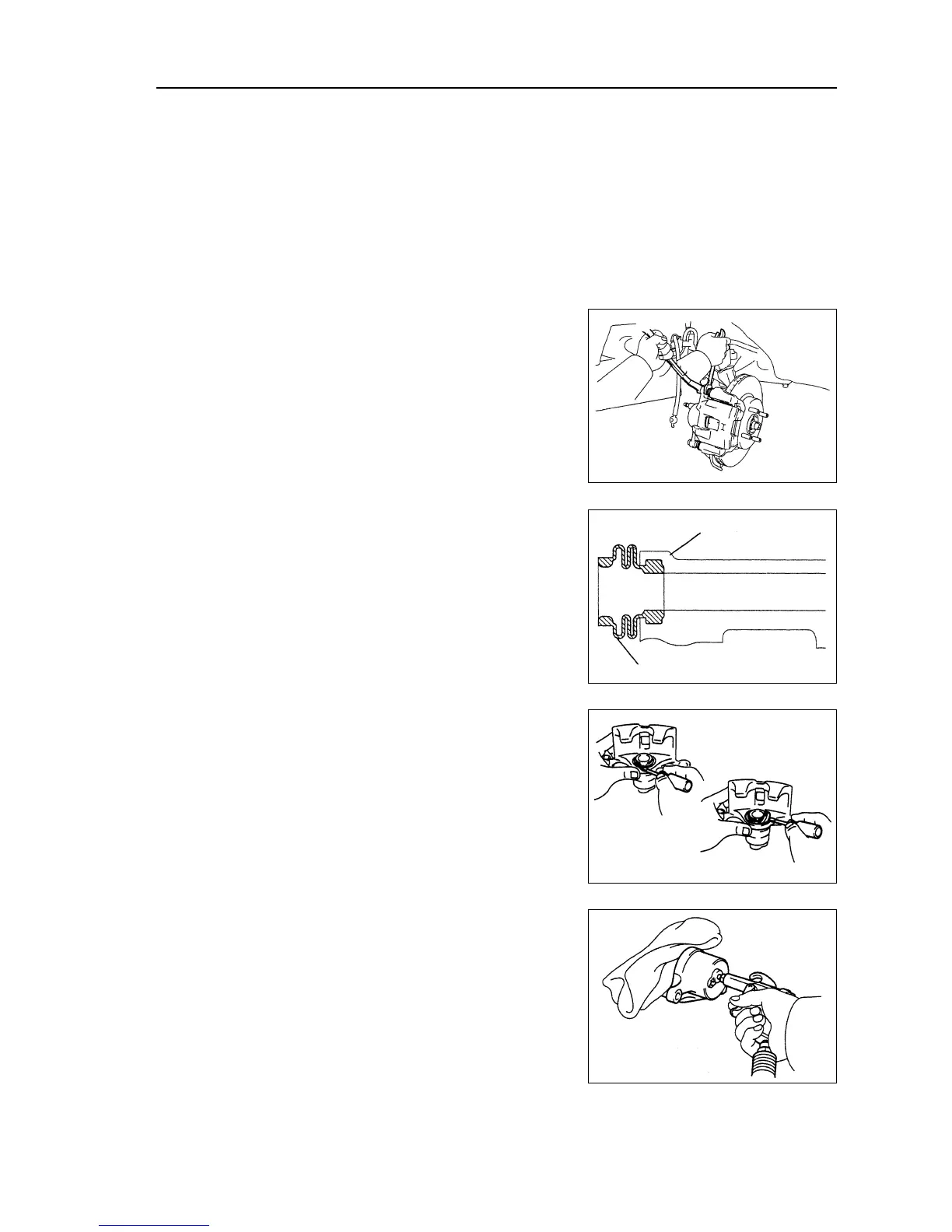

Brake--Front brake assembly
Front brake assembly
Overhaul
1. Disassemble front wheels.
2. Discharge brake liquid.
Note: do not spill the brake liquid on paint surface of automobile body, if having, wash it cleanly.
3. Disassemble brake branch pump assembly.
(a) Disassemble the bolts and gaskets of brake hose joint on
brake branch pump, then disassemble brake hose.
Hint: the gasket has two types: two sheets type or one
type.
(b) Fix sliding pin of cylinder body to disassemble two bolts.
4. Disassemble brake block of front wheels.
(a) Disassemble brake block with muffle gasket.
(b) Disassemble muffle gasket from every brake block.
5. Disassemble support sheet of brake block.
6. Disassemble sliding pin of brake branch pump.
Disassemble sliding pin on branch pump bracket.
7. Disassemble dustproof cover on brake branch pump.
Disassemble two dustproof covers from brake branch pump
of disk.
8. Disassemble left front brake branch pump.
Disassemble two bolts and brake branch pump bracket.
9. Disassemble dustproof cover of branch pump.
Use screw driver to disassemble oil seal loop and dustproof
cover.
10. Disassemble the piston of brake branch pump.
(a) Put a cloth or similar thing between piston and branch pump.
(b)Use compressed air to disassemble piston from branch
pump.
Warning: when using compressed air, do not put your
finger at the front of piston.
Note: you could not be splashed by brake liquid.
11. Disassemble oil seal of piston.
Use screw driver to disassemble oil seal of piston from branch
pump.
12. Disassemble exhaust bolt of branch pump.
Brake branch pump
Dustproof cover
141
