Engine mechanism - Drive belt
Drive belt
Replacement
1.
Remove engine right bottom shield.
2.
Remove drive belt

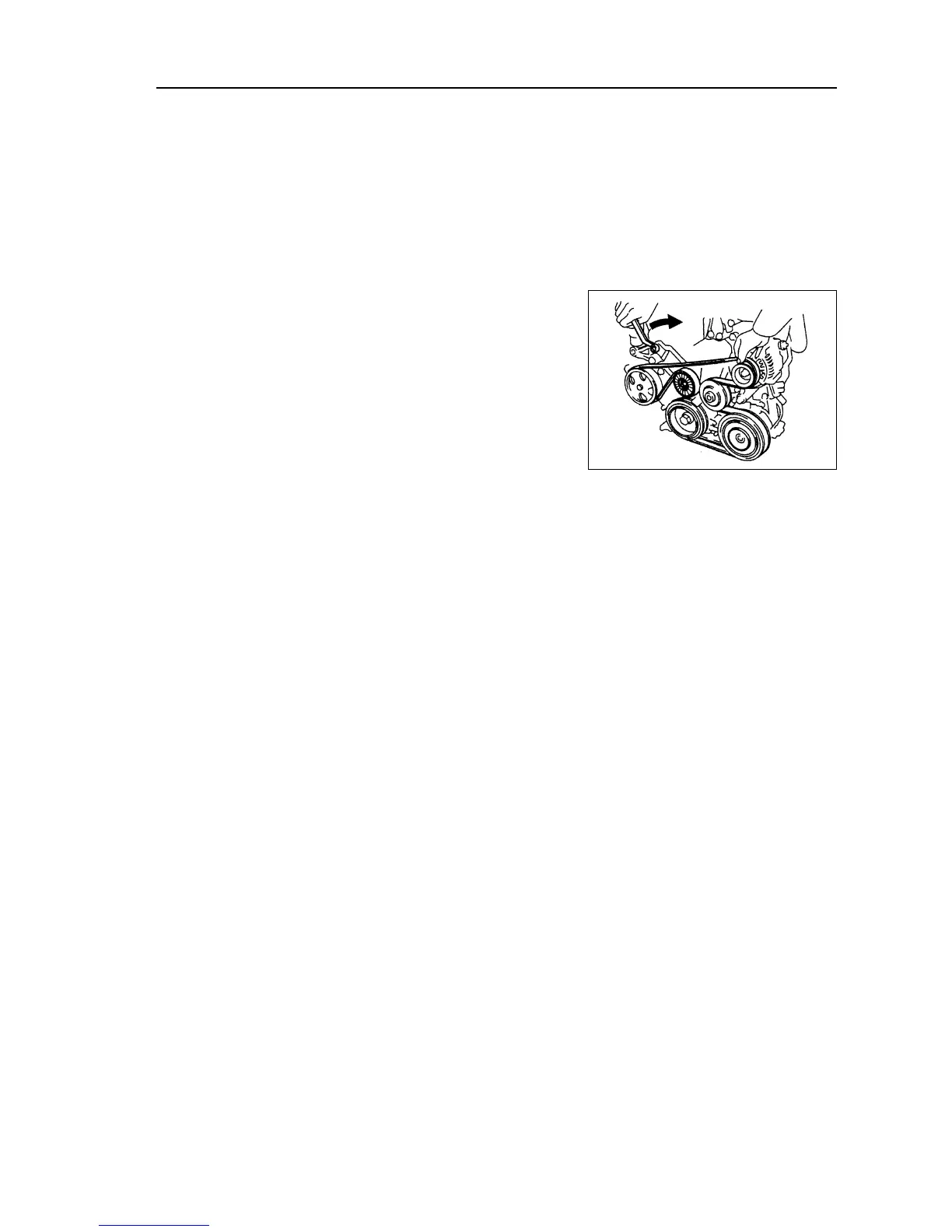

Slowly turn drive belt tensioner clockwise to loosen it.
Then remove drive belt and put back drive belt tensioner slowly
and gently.
3.
Install drive belt
Slowly turn drive belt tensioner clockwise to loosen it.
Then install drive belt and put back drive belt tensioner slowly
and gently.
29
