Oil filter assembly
Replacement
Warning:
Long-term or repeat contacting mineral oil will cause decomposing of natural fat on skin, which
will result in dry and sensitive skin and skin rankling. Used oil has potential harm and may cause
carcinoma cutis.
When replacing engine oil, always wear protective clothes and gloves to avoid waste oil
penetrating, and reduce the frequency and time of skin contacting waster oil, and clean with
soapy water or clean water not with gasoline, thinner or solvent if skin contacts waste oil.
To protect environment, waste oil and oil filter must be abandoned at named place.
1. Remove engine right bottom shield.
2. Discharge engine oil.
3. Remove oil filter assembly [4G18-1012100].
Remove oil filter with special tool.
4. Install oil filter assembly.
(a) Check and clean oil filter junction plane.
(b) Coat oil seal of new oil filter with clean oil.
(c) Tighten oil filter with hands to the extent that oil seal
just touches fixing base.
(d) Tighten oil filter for another 3/4 circle with special tool.
5. Install oil drain plug [4G18-1009101].
Clean oil drain plug, and install it back after replacing oil drain plug gasket.
Torque:
6. Refill engine oil.
7. Check there is oil leakage.

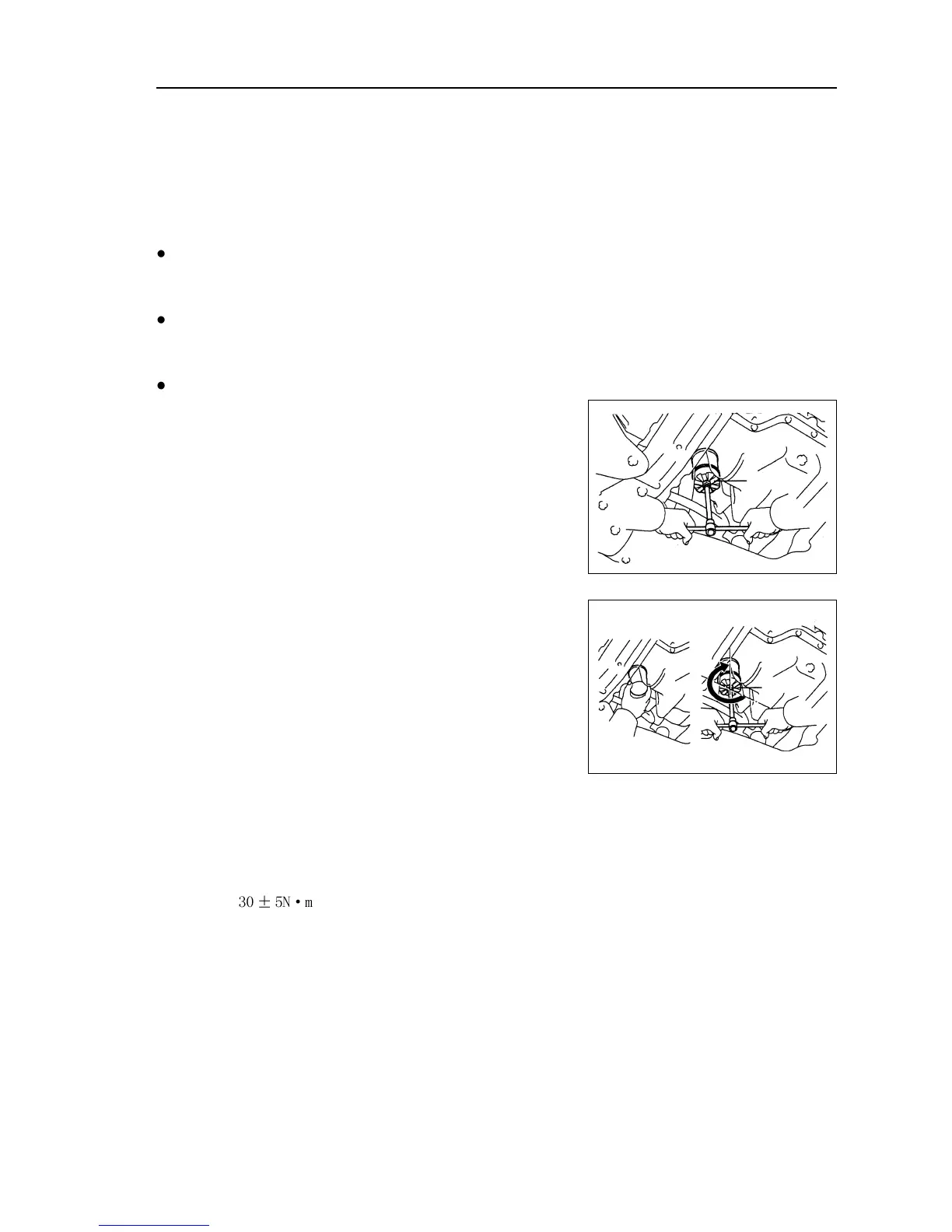

Lubrication - Oil filter assembly
Special tool
75
Special tool
3/4 circle
