Lubrication - Oil pump assembly

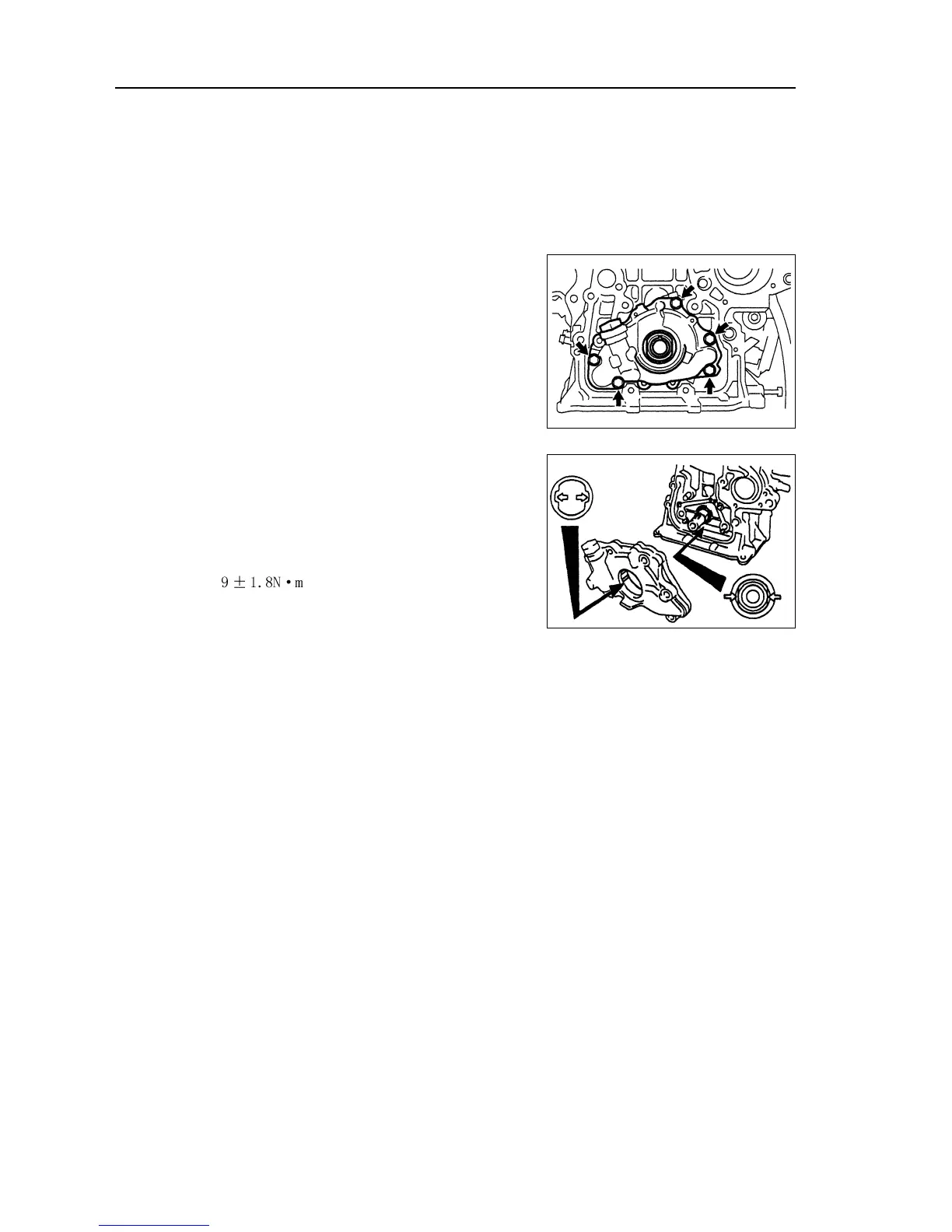

Oil pump assembly
Replacement
1.
Remove timing chain assembly (see Page 45).
2.
Remove oil pump assembly [4G18-101
1
100].
Remove 5 bolts, oil pump and oil pump gasket.
3.
Install oil pump assembly.
(
a)
Install new gasket on cylinder body.
(b)
Align the guide groove of oil pump drive rotor with the key
on crankshaft, and slide the oil pump in.
(c)
Install oil pump with 5 bolts.
T
orque:
76
86
88
