Lubrication
Lubricating system
On-vehicle inspection
1. Check oil level.
During engine warming up and after it flames out for 5 minutes, check oil level, and the level should
be between two marks on oil dipstick at the moment.If oil level is too low, check there is leakage, and
refill oil up to upper mark on oil dipstick.
Note: oil level should not be above upper mark on oil
dipstick.
2. Check oil quality.
(a) Check there is deterioration, water penetration, color
change or thinning with oil.
(b) If oil quality becomes poor, please replace with new oil.
Hint: oil grades: API, SH, SJ, SG grade oil or ILSAC
multigrade oil. Recommended viscosity is
shown as below.
The temperature increases from left to right.
3. Remove oil pressure alerter assembly.
(a) Uncouple oil pressure alerter joint.
(b) Install oil pressure alerter with special tool.
4. Install oil pressure gauge.
Install oil pressure gauge.
5. Warm up vehicle.
6. Check oil pressure.
Oil pressure:
7. Install oil pressure alerter.
(a) Coat adhesive on 2
nd
or 3
rd
circle thread of oil pressure
alerter.
Adhesive: anaerobic pipe thread sealing adhesive
1545 (Kesaixin 1545).
(b) Install oil pressure alerter with special tool.
Torque: m
(c) Connect oil pressure alerter joint.
8. Start engine and check there is leakage.
Lubrication - lubricating system

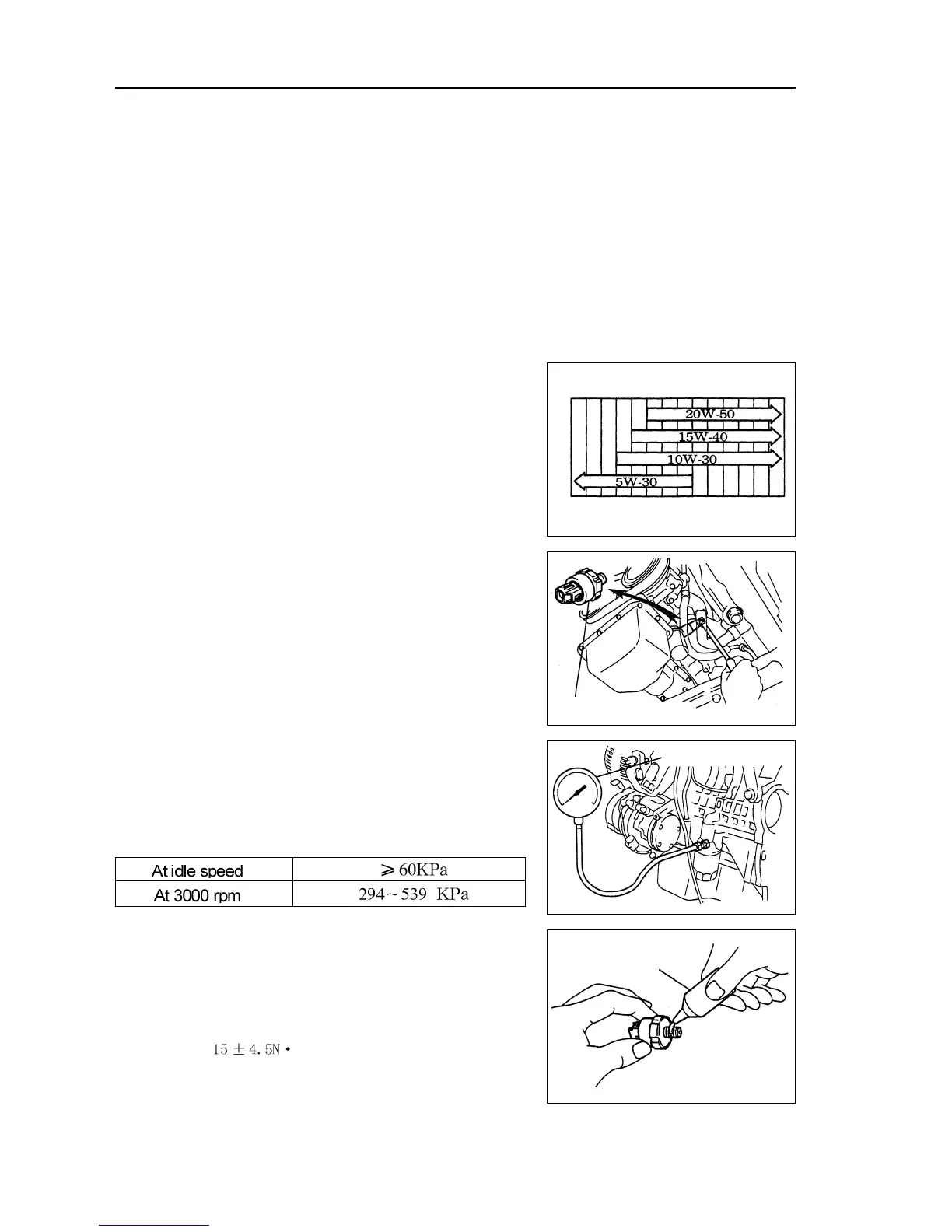

Recommended viscosity (SAE)
Oil pressure alerter
Oil pressure gauge
Adhesive
74
Temperature range in forecasting next
oil replacement
