Front suspension - Front stabilizer bar
Front stabilizer bar
Overhaul
1. Remove dust cap inside steering column (see Page 194).
2. Separate steering sliding shaft assembly (see Page 205)
3. Remove front wheels.
4. Remove right engine bottom shield.
5. Remove left engine bottom shield.

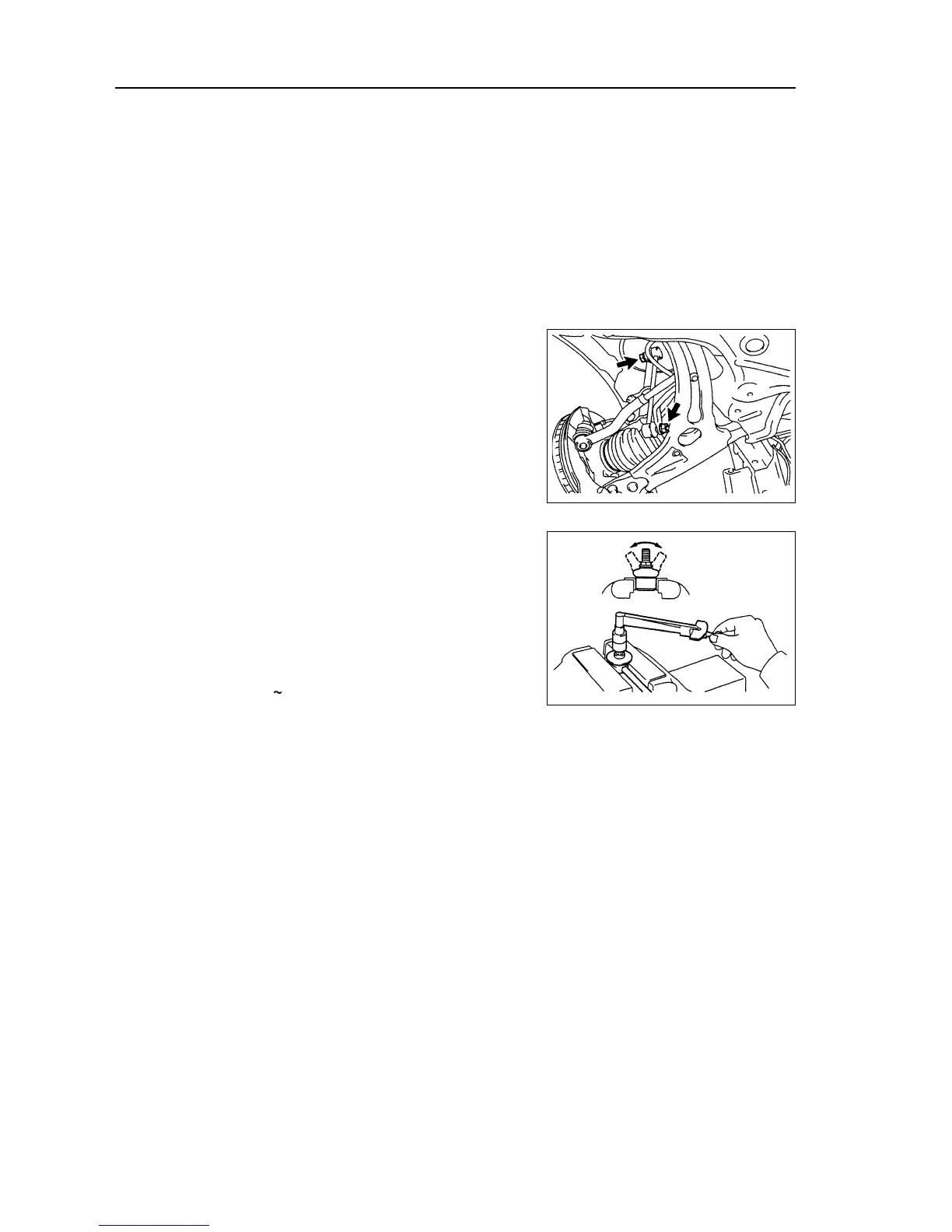

6. Remove front left stabilizer link assembly
[64000097].
Remove 2 nuts and take down stabilizer link.
Hint: if ball joint rotates with nuts, please fix bolts with
hexagonal wrench (6mm).
7. Remove front right stabilizer link assembly
[64000097].
Hint: the removal procedures of right side are the same
as that of left side.
8. Check front left stabilizer link assembly.
(a) As shown in the diagram, before installing nuts, shake joint
bolts forward and backward 5 times.
(b) Shake nuts continuously with torque wrench at the speed
of one circle per 2 4 s, and then read out torque value at
the 5
th
circle.
Rotating torque: 0.05~1.0 N.m
9. Separate left side transversal lever assembly (see Page 113).
10. Separate right side transversal lever assembly (see Page 113).
11. Separate oil pipe assembly (see Page 205).
12. Separate steering gear oil return pipe (see Page 205).
13. Separate lower left control arm assembly [64000091] (see Page 94).
14. Separate lower right control arm assembly [64000092] (see Page 94).
15. Remove sub frame assembly [64000087] (see Page 205).
96
