Power steering gear assembly
Overhaul

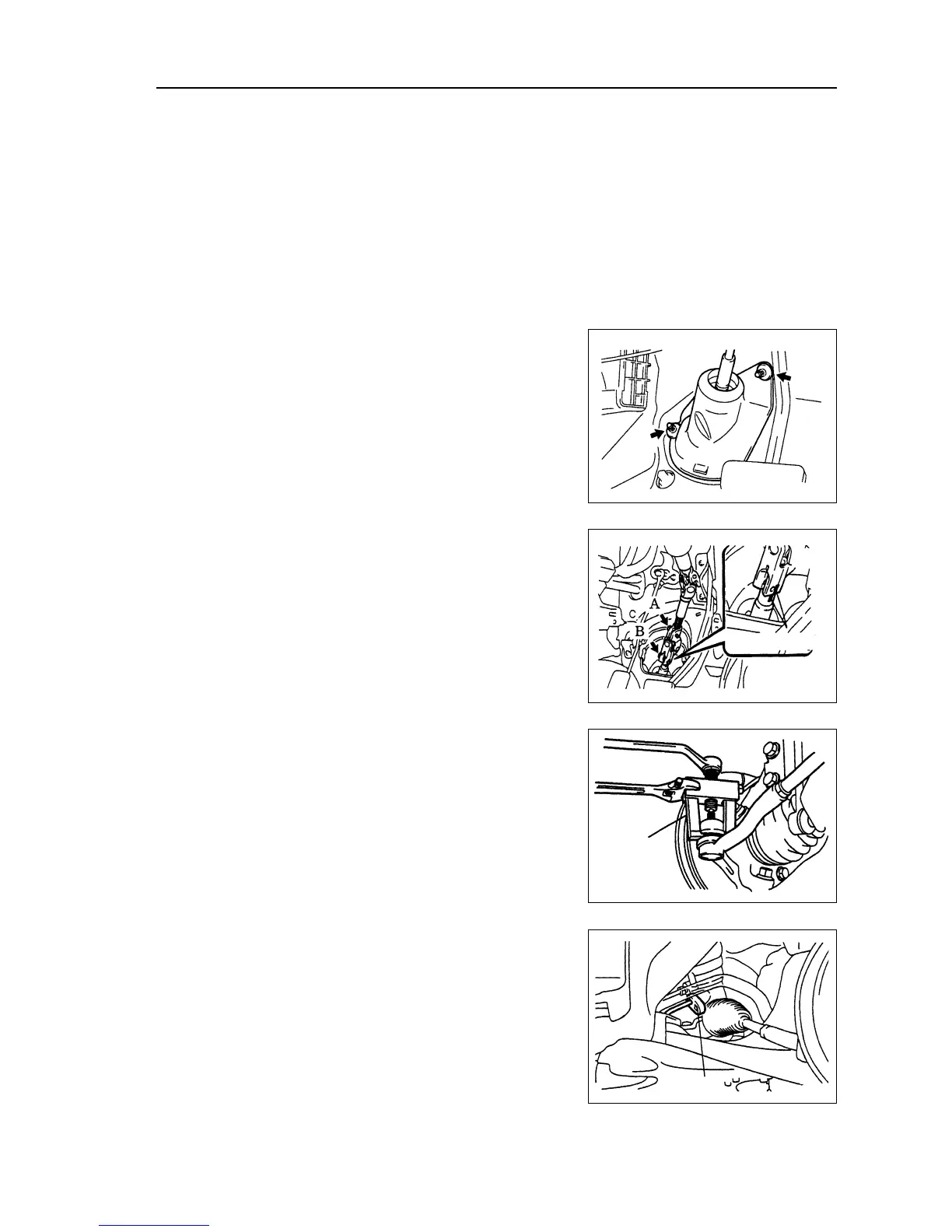

1. Make front wheel face the front
2. Disassemble safety airbag assembly at the side of driver
(equipping with SRS) [6701011]
3. Disassemble steering wheel assembly [67010001].
4. Disassemble dust-proof cover in steering column
[64000123].
Disassemble two screw caps, then take down the dust-proof
cover.
5. Disassemble steering sliding shaft assemble
(a) Make mark on sliding yoke and steering middle shaft.
(b) Loosen A bolt and disassemble B bolt, then disassemble
sliding shaft.
6. Disassemble front wheel
7. Disassemble right bottom defender board [68000004].
8. Disassemble left bottom defender board [68000003].
9. Disconnect left end terminal of transversal lever
(a) Disassemble cotter pin and screw cap.
(b) Use special tool to disassemble the left end terminal of
transversal lever from steering knuckle.
Hint: disassemble the other with same method.
10. Disassemble right end terminal of transversal lever.
11. Disassemble in-out oil pipe assembly of power
steering gear [64000131].
(a) Use special tool to disassemble in-out oil pipe assembly
of power steering gear.
Power steering--Power steering gear assembly
Align the mark
Special tool
Special tool
 205 
