Engine cover/automobile door--Rear automobile door
Rear automobile door
Overhaul
Hint:
z
When assembling, please work by the sequence which is opposite with disassembling
sequence; if necessary, it will have assembling instruction..
z
Overhaul procedure for right side is same as the left side.

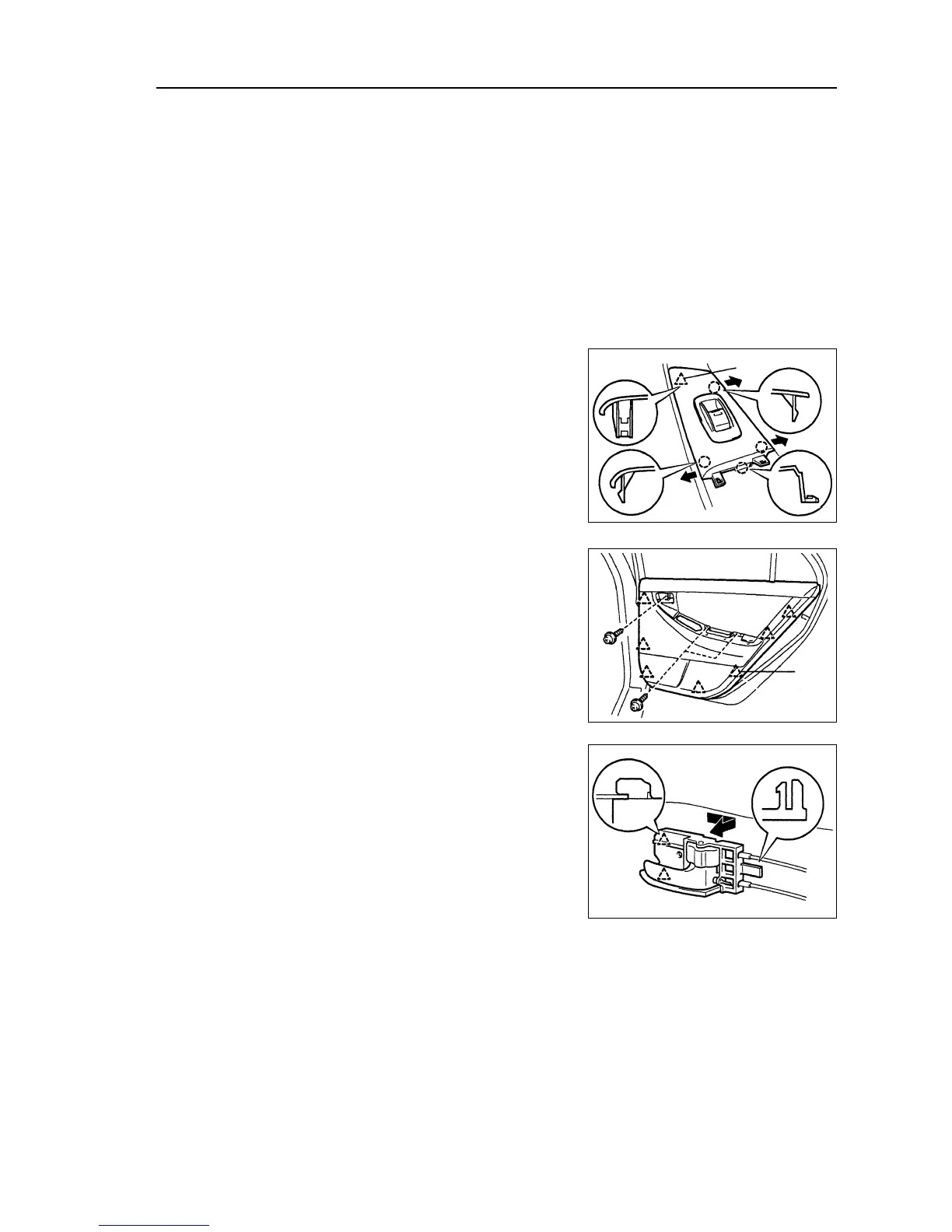

1. Disassemble left rear door control panel assembly [68000176]
Use screw driver to disassemble left rear door control panel assembly.
Fixing
clasp
Fixing
clasp
373
2. Disassemble left rear door inner trim board assem-
bly [68010057]
(a) Disassemble three screws.
(b) Disconnect the fixing clamp, then pull inner trim board up-
wards to disassemble it.
3. Disassemble left door inner handle assembly
[68010051]
Disassemble inner handle and two pull cables from inner handle.
4. Disassemble left rear door repairing hole cover.
Disassemble repairing hole cover.
5. Disassemble exterior seal tape of left rear door glass
[68000196]
6. Disassemble seal tape of left rear glass guide slot
[68000199]
(a) Disassemble seal tape of left rear glass guide slot.
7. Disassemble left rear door window glass guide slot
assembly [68000187]
Disassemble two bolts and comparting pillar of rear window.
8. Disassemble left rear door triangle glass [68000181]
(a) Disassemble left rear door triangle glass.
Note: do not damage the glass.
(b) Disassemble corner window waterproof rubber from the glass.
9. Disassemble left rear glass assembly [68000179]
Hint: insert the cloth in the door steel board to prevent the glass from scratching.
(a) Drop the door glass.
(b) Incline door glass and disassemble the roller pole of lift from glass leading slot to disassemble door
glass.
10. Disassemble left rear door lift assembly [67000124]
(a) Disassemble the joint.
(b) Disassemble four bolts and window lift.
To Next Page
