Fan assembly
Overhaul

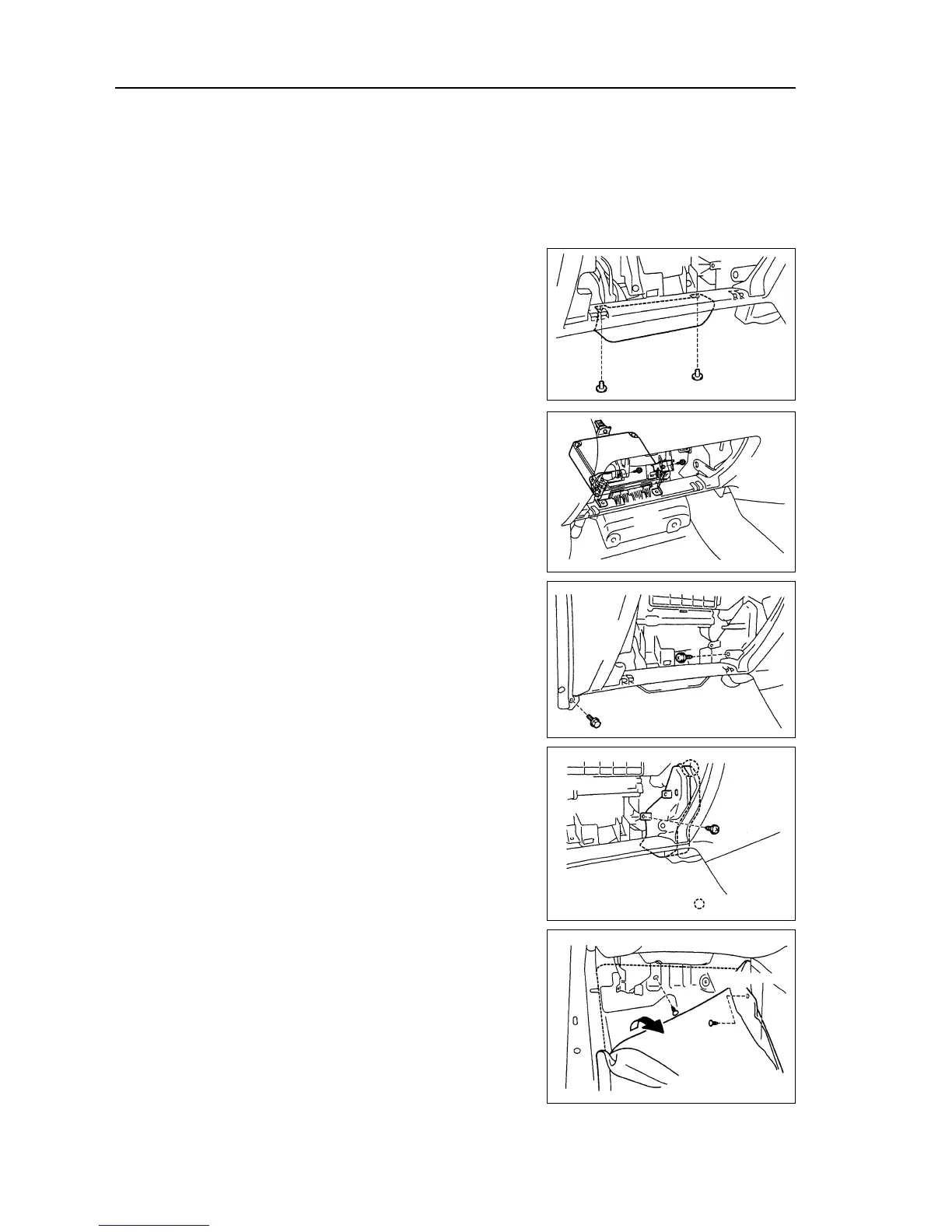

1. Disassemble left/right front door pedal trim board.
2. Disassemble front lower inner trim board at the left/
right side.
3. Disassemble storage box assembly at the right side
of panel.
4. Disassemble engine ECU.
(a) Disassemble two fixed clamps and engine ECU cover.
(b) Disassemble two screws and disconnect engine ECU.
5. Disassemble panel assembly.
(a) Disassemble the bolts and screws from panel.
(b) Disassemble the screws and air conduct.
6. Disassemble fan assembly.
(a) Disassemble fixed clamp and turn over the carpet.
(b) Disassemble fixed claw and disconnect joint plug.
Air conditioner--Fan assembly
Fixing claw
 224 
Carpet
